Product Details
|
9-BIT PARITY GENERATOR/CHECKER The MC54/74F280 is a high-speed parity generator/checker that accepts nine bits of input data and detects whether an even or an odd number of these inputs is HIGH. If an even number of inputs is HIGH, the Sum Even output is HIGH. If an odd number is HIGH, the Sum Even output is LOW. The Sum Odd output is the complement of the Sum Even output. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - 54F280DMQB |
| hs Manufacturer | Original |
| Part Package Code | DIP |
| Package Description | CERAMIC, DIP-14 |
| Pin Count | 14 |
| Reach Compliance Code | Unknown |
| Additional Feature | LG_MAX |
| Family | F/FAST |
| Length | 19.93 mm |
| Logic IC Type | PARITY GENERATOR/CHECKER |
| Number of Bits | 9 |
| Number of Functions | 1 |
| Number of Terminals | 14 |
| Operating Temperature-Max |
125 °C |
| Operating Temperature-Min | -55 °C |
| Output Polarity | COMPLEMENTARY |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Power Supply Current-Max (ICC) | 38 mA |
| Propagation Delay (tpd) | 21 ns |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | MILITARY |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |

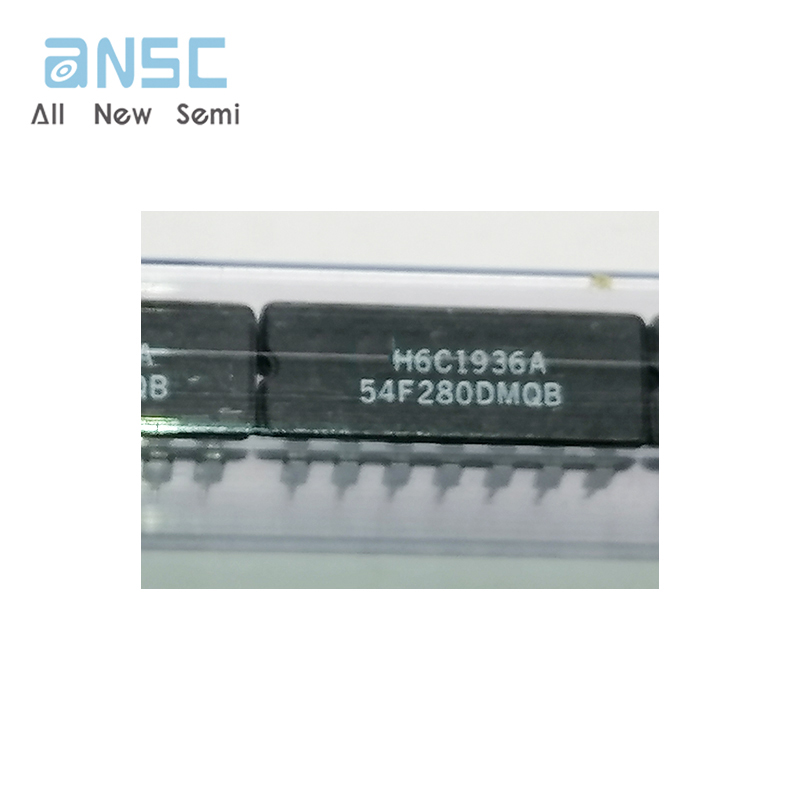

Product Photos

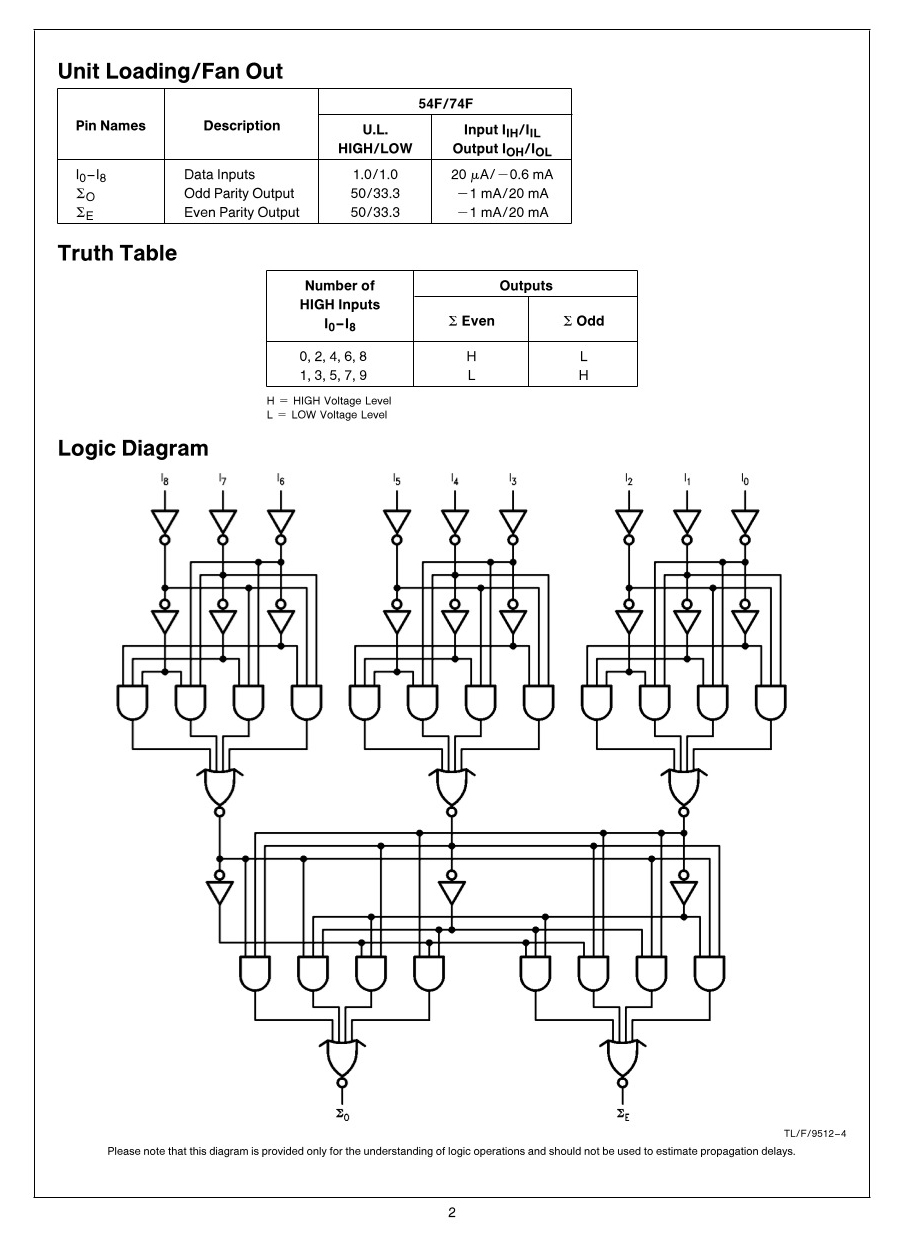

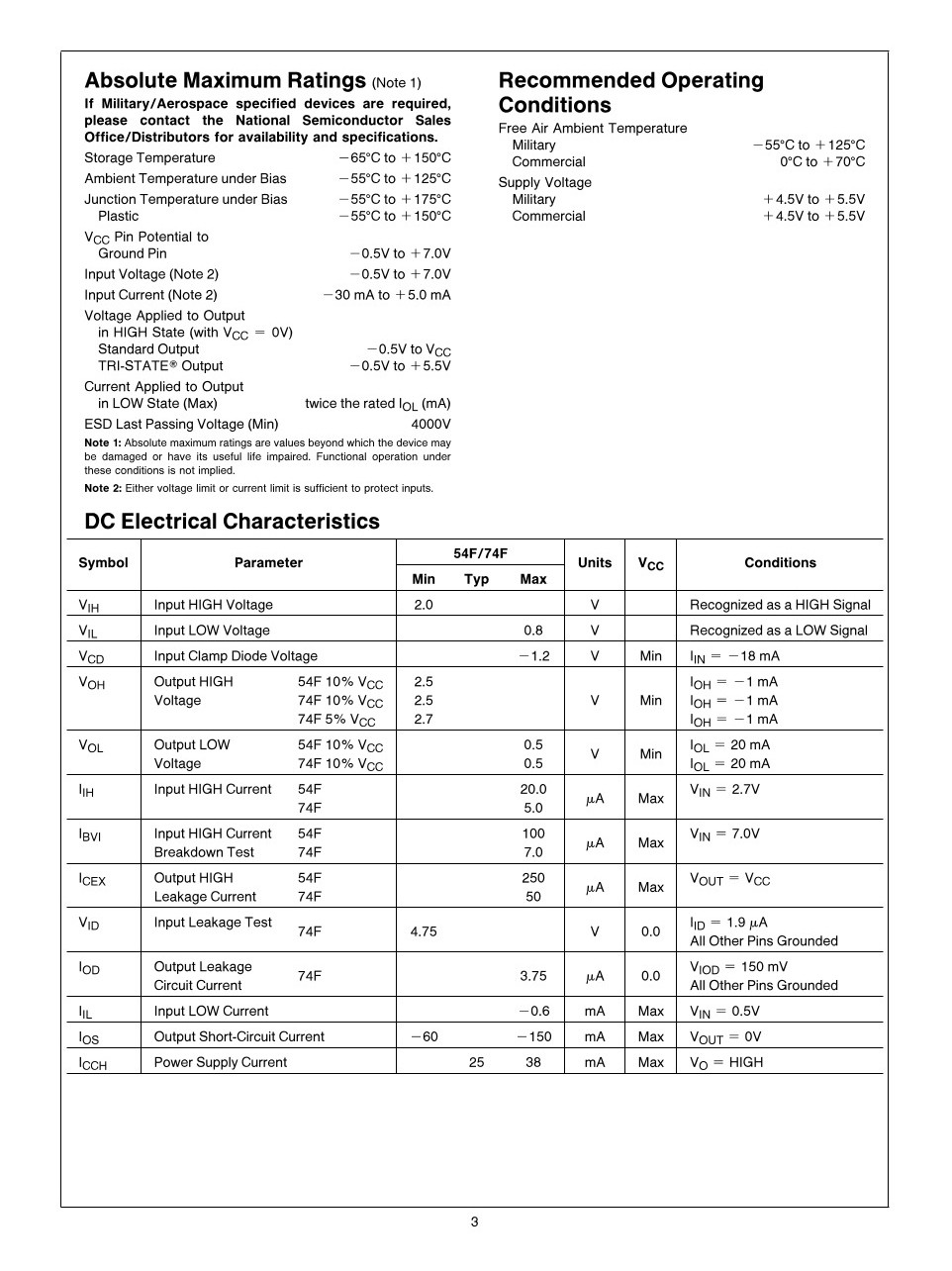

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
