Product Details
|
Product Overview The electronic component is convenient to ship overseas because it is packed in a 16-SOIC (0.154, 3.90mm Width). The advanced packaging method Tube provides high reliability. It is mounted in the position Surface Mount. 1:1 is the ratio between multiplexers and demultiplexers. The operating temperature is extended to around -40°C~85°C TA. The total number of terminations is 16. As a result of its 4 channels, this electronic component provides high-quality output. An 15V voltage supply should allow the electrical part to be turned on and run. A total of 16 pins are injected into the body of the electronic part. Based on SPST - NO switching circuits, these analog multiplexers work. Use ADG212 to search for variants of the digital switches. The internal resistance of this digital multiplexer is 115Ohm. Datasheets for functions of 16 pins are available. normally, users should not supply switches with voltages higher than 25V. Analogue multiplexer with a Dual supply type that is cost-effective. If you put voltage higher than 1mA on the digital multiplexer, damage may occur. For this multiplexer, dual supply voltage is feasible, but it should not exceed 22V. A total of SEPARATE OUTPUT outputs are available on this analog switch ic. A voltage of 5V can be used to operate the electronic component. There is 115Ohm resistance between the Drain and Source on this part. Product Features 4 Channels Switch Circuit: SPST - NO Drain-to-Source resistance: 115Ohm Product Applications ADG212AKRZ Analog Switches & Multiplexers ICs applications. · Low-Voltage · Isolation · Medical · Imaging · Ultrasound · Audio and video switching · Automatic test equipment · Precision data acquisition · Battery-powered systems · Sample-and-hold systems |
Product Description
| Type | Description |
| ANSC PART# | ANSC -ADG212AKRZ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:01 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 115Ohm |
| Channel-to-Channel Matching (ΔRon) | 5.75Ohm |
| Voltage - Supply, Single (V+) | 15V |
|
Voltage - Supply, Dual (V±) |
±15V |
| Switch Time (Ton, Toff) (Max) | 600ns, 450ns |
| -3db Bandwidth | - |
| Charge Injection | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 5pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | -80dB @ 100kHz |
| Operating Temperature |
-40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ADG212 |
Product Photos

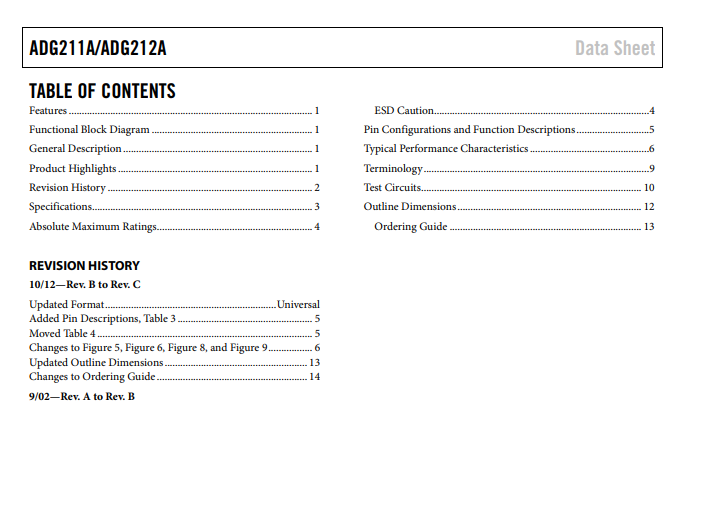

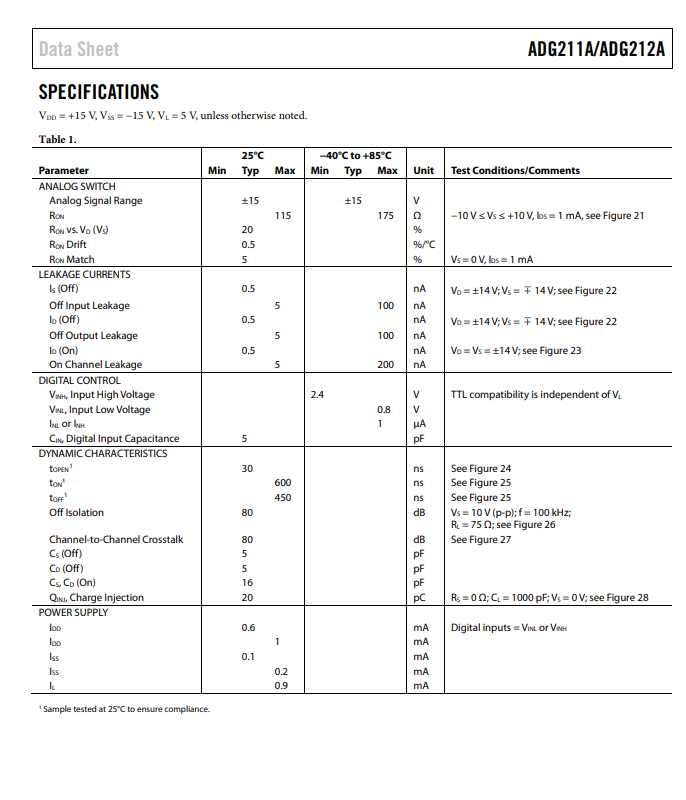

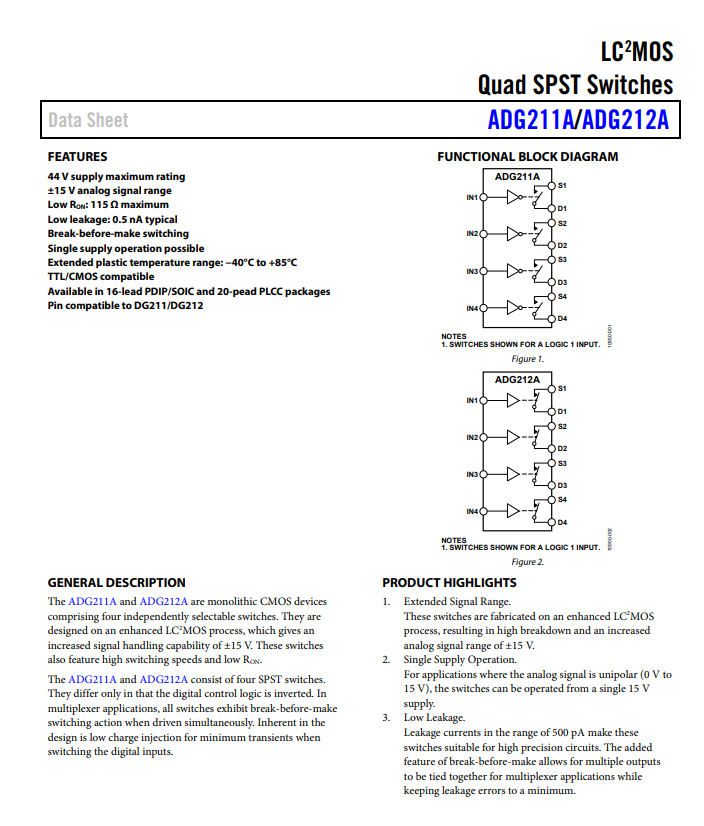

Product datasheet
