Product Details
|
Description The XC9572 is a high-performance CPLD providing advanced in-system programming and test capabilities for general purpose logic integration. It is comprised of four 36V18 Function Blocks, providing 1,600 usable gates with propagation delays of 7.5 ns. See Figure2for the architecture overview. Features ? 7.5 ns pin-to-pin logic delays on all pins ? fCNT to 125 MHz ? 72 macrocells with 1,600 usable gates ? Up to 72 user I/O pins ? 5 V in-system programmable (ISP) - Endurance of 10,000 program/erase cycles - Program/erase over full commercial voltage and temperature range ? Enhanced pin-locking architecture ? Flexible 36V18 Function Block - 90 product terms drive any or all of 18 macrocells within Function Block - Global and product term clocks, output enables, set and reset signals ? Extensive IEEE Std 1149.1 boundary-scan (JTAG) support ? Programmable power reduction mode in each macrocell ? Slew rate control on individual outputs ? User programmable ground pin capability ? Extended pattern security features for design protection ? High-drive 24 mA outputs ? 3.3 V or 5 V I/O capability ? Advanced CMOS 5V FastFLASH technology ? Supports parallel programming of more than one XC9500 concurrently ? Available in 44-pin PLCC, 84-pin PLCC, 100-pin PQFP and 100-pin TQFP packages |
Product Description
| Type | Description |
| ANSC PART# | ANSC - XC95144XL-5TQ100C |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| CPLDs (Complex Programmable Logic Devices) | |
| Manufacturer | Original |
| Series | XC9500XL |
| Packaging | Tray |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Programmable Type | In System Programmable (min 10K program/erase cycles) |
| Delay Time tpd(1) Max | 5 ns |
| Voltage Supply - Internal | 3V ~ 3.6V |
| Number of Logic Elements/Blocks | 8 |
| Number of Macrocells | 144 |
| Number of Gates | 3200 |
| Number of I/O | 81 |
| Operating Temperature |
0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LQFP |
| Supplier Device Package | 100-TQFP (14x14) |
| Base Product Number | XC95144 |

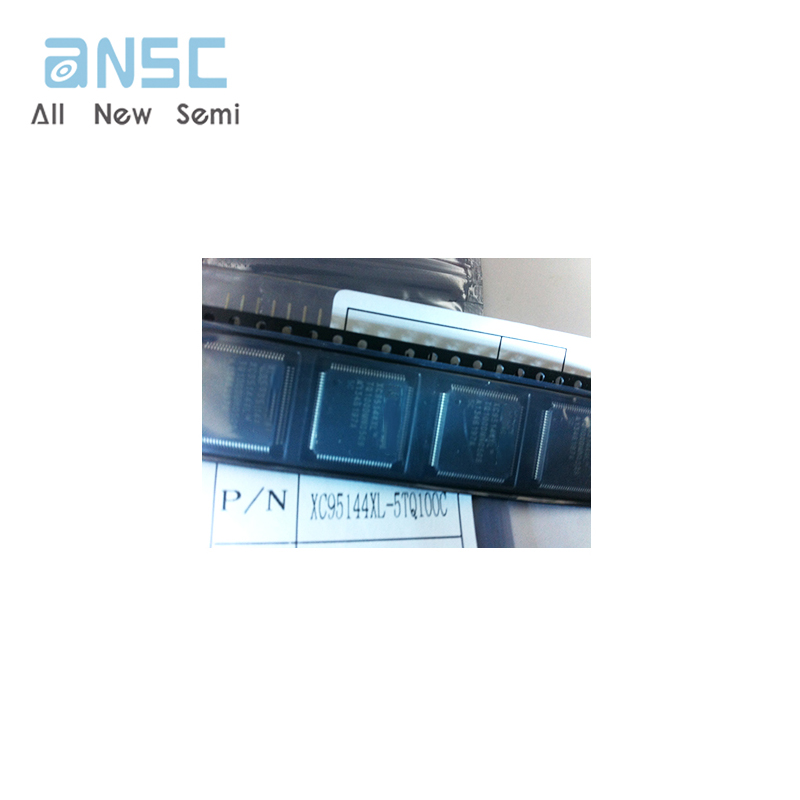

Product Photos

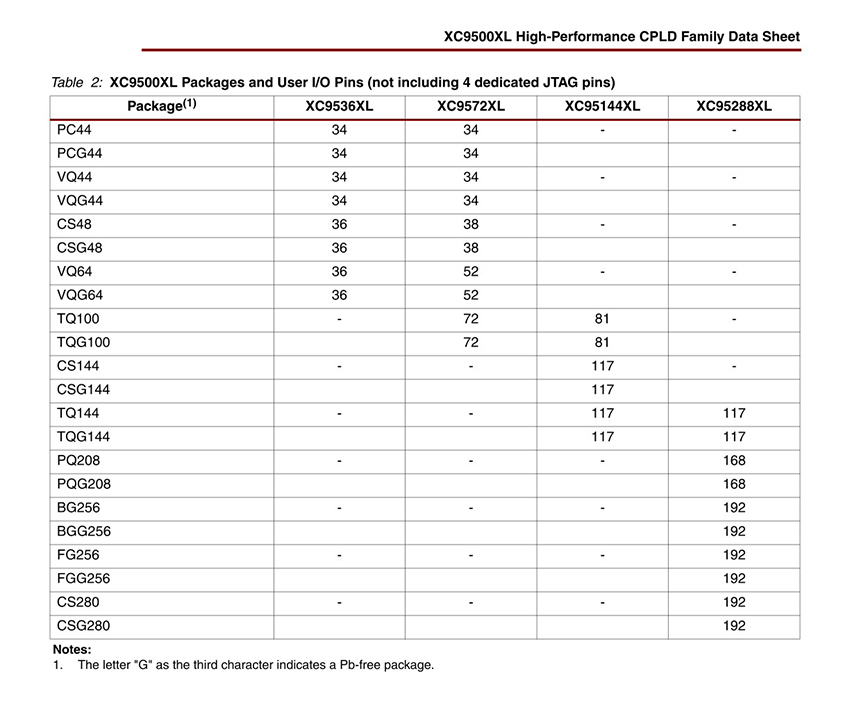

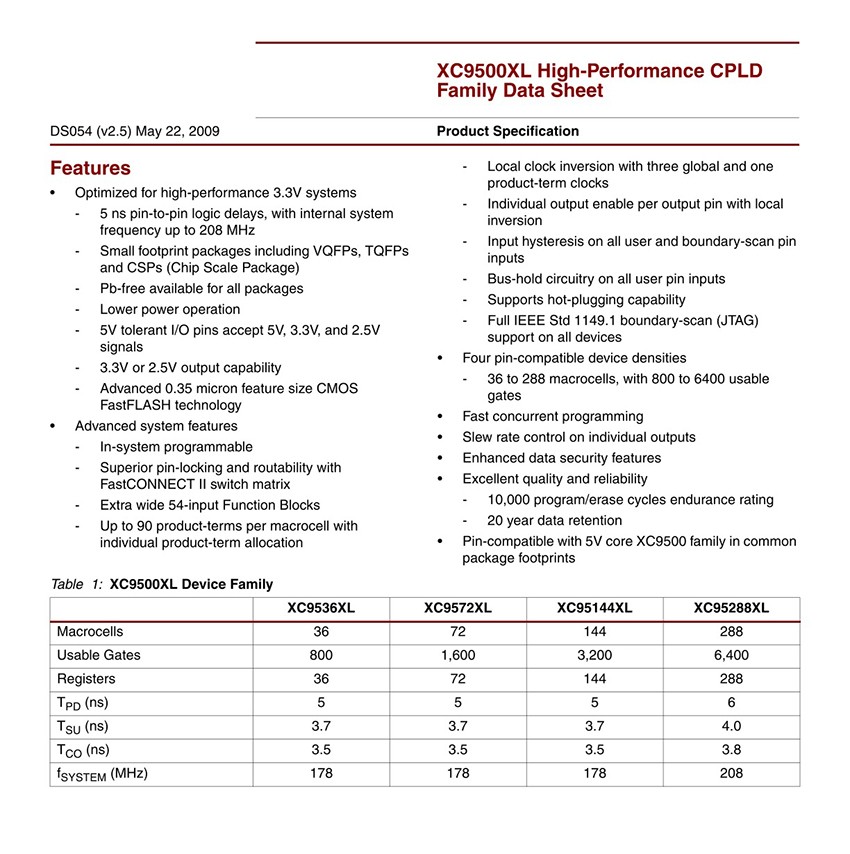

Product datasheet
For more information, please download
