Product Details
| DESCRIPTION The LTC?2205-14 is a sampling 14-bit A/D converter designed for digitizing high frequency, wide dynamic range signals up to input frequencies of 700MHz. The input range of the ADC can be optimized with the PGA front end. FEATURES ■ Sample Rate: 65Msps ■ 78.3dB SNR and 98dB SFDR (2.25VP-P Range) ■ SFDR >90dB at 140MHz (1.5VP-P Input Range) ■ PGA Front End (2.25VP-P or 1.5VP-P Input Range) ■ 700MHz Full Power Bandwidth S/H ■ Optional Internal Dither ■ Optional Data Output Randomizer ■ Single 3.3V Supply ■ Power Dissipation: 600mW ■ Optional Clock Duty Cycle Stabilizer ■ Out-of-Range Indicator ■ Pin Compatible Family 105Msps: LTC2207 (16-Bit), LTC2207-14 (14-Bit) 80Msps: LTC2206 (16-Bit), LTC2206-14 (14-Bit) 65Msps: LTC2205 (16-Bit) 40Msps: LTC2204 (16-Bit) ■ 48-Pin (7mm × 7mm) QFN Package APPLICATIONS ■ Telecommunications ■ Receivers ■ Cellular Base Stations ■ Spectrum Analysis ■ Imaging Systems ■ ATE |
Product Description
| Type | Description |
| ANSC PART# | ANSC - LTC4263IDE#TRPBF |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Over Ethernet (PoE) Controllers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Controller (PSE) |
| Number of Channels | 1 |
| Power - Max | 15.4 W |
| Internal Switch(s) | Yes |
| Auxiliary Sense | No |
| Standards | 802.3af (PoE) |
| Voltage - Supply | 33V ~ 66V |
| Current - Supply | 2mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-DFN (4x3) |
| Base Product Number | LTC4263 |

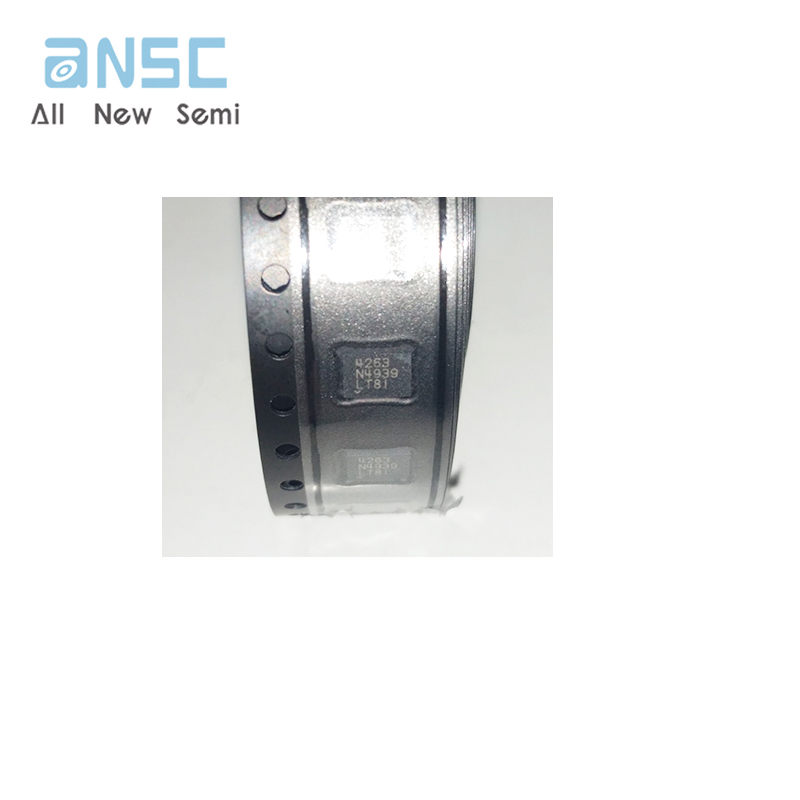

Product Photos

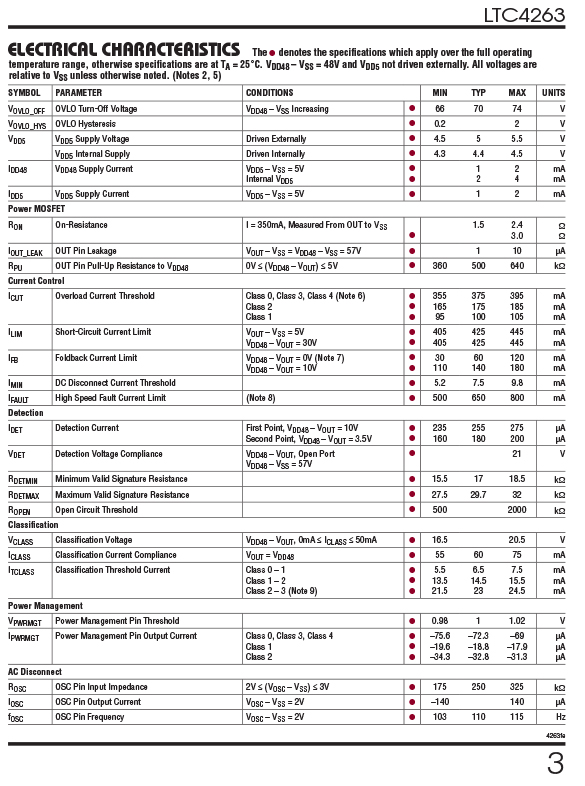

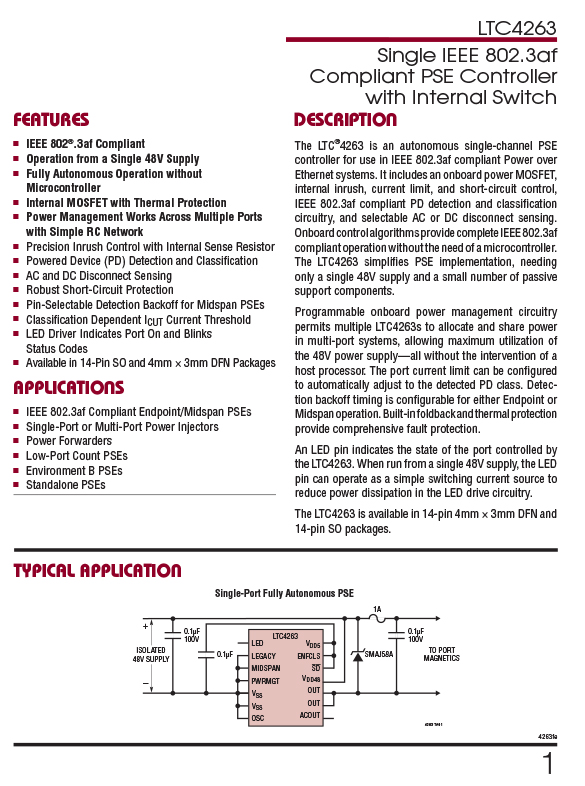

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
