Product Details
|
GENERAL DESCRIPTION The AD713 is a quad operational amplifier, consisting of four AD711 BiFET op amps. These precision monolithic op amps offer excellent dc characteristics plus rapid settling times, high slew rates, and ample bandwidths. FEATURES AC performance 1 μs settling to 0.01% for 10 V step 20 V/μs slew rate 0.0003% total harmonic distortion (THD) 4 MHz unity gain bandwidth DC performance 1.5 mV maximum offset voltage 8 μV/°C typical drift 150 V/mV minimum open-loop gain 2 μV p-p typical noise, 0.1 Hz to 10 Hz True 14-bit accuracy Single version: AD711, dual version: AD712 Available in 16-lead SOIC, 14-lead PDIP and CERDIP APPLICATIONS Active filters Quad output buffers for 12- and 14-bit DACs Input buffers for precision ADCs Photo diode preamplifier applications |
Product Description
| Type | Description |
| ANSC PART# | ANSC - AD713AQ |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | Original |
| Series | - |
| Packaging | Tube |
| Part Status | / |
| Amplifier Type | J-FET |
| Number of Circuits | 4 |
| Output Type | - |
| Slew Rate | 20V/μs |
| -3db Bandwidth | 4 MHz |
| Current - Input Bias | 10 pA |
| Voltage - Input Offset |
300 μV |
| Current - Supply | 10mA |
| Current - Output / Channel | 25 mA |
| Voltage - Supply Span (Min) | 9 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 14-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 14-CERDIP |
| Base Product Number | AD713 |

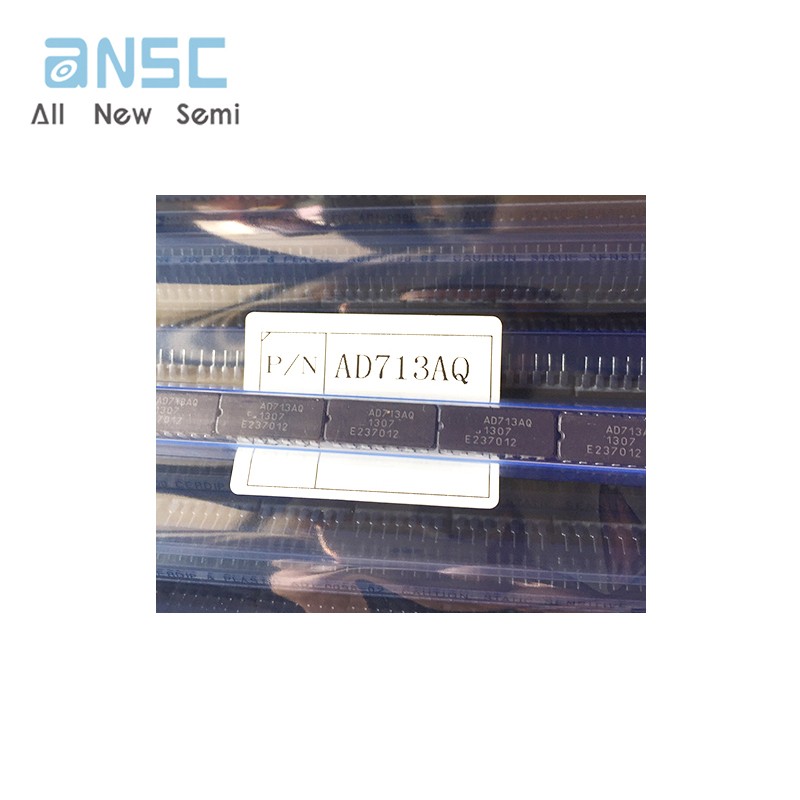

Product Photos

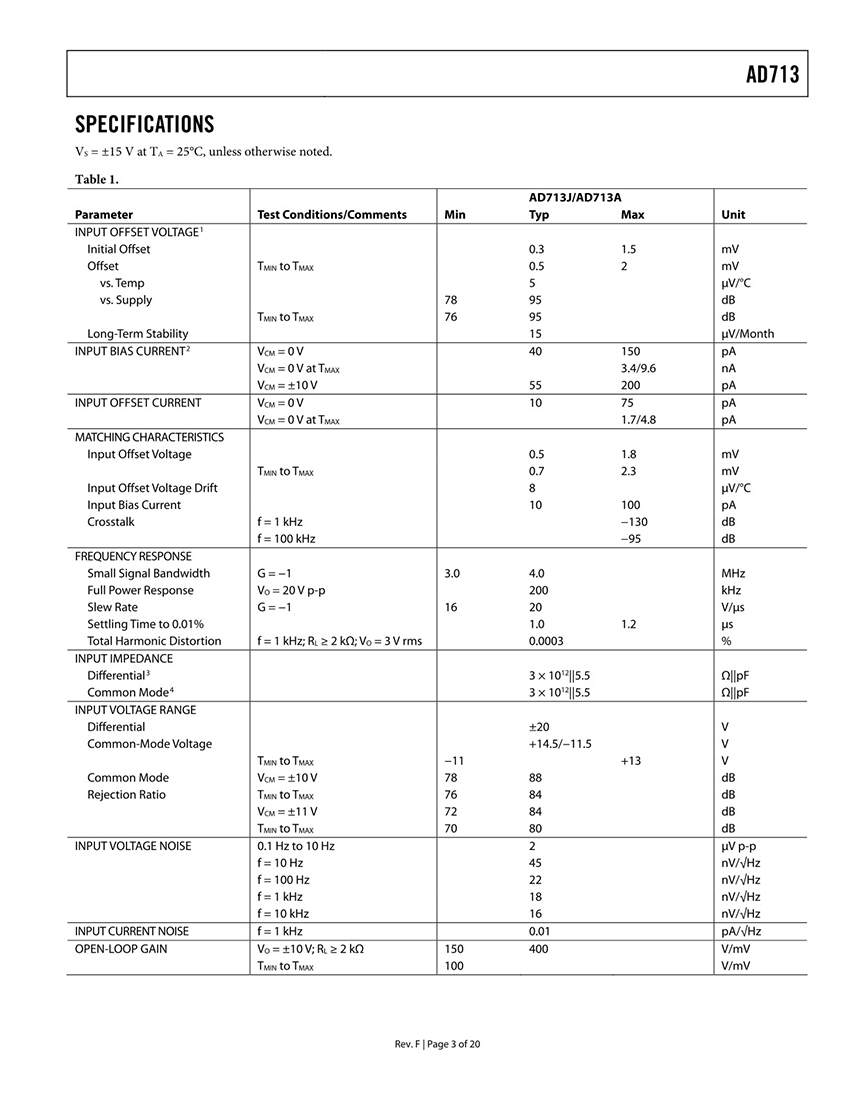

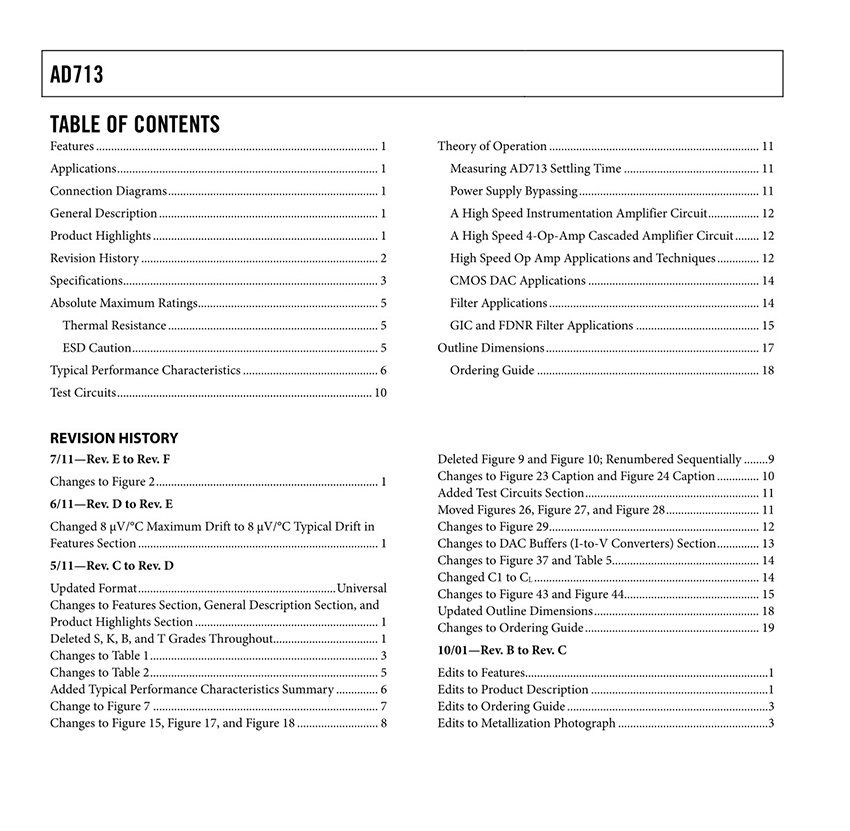

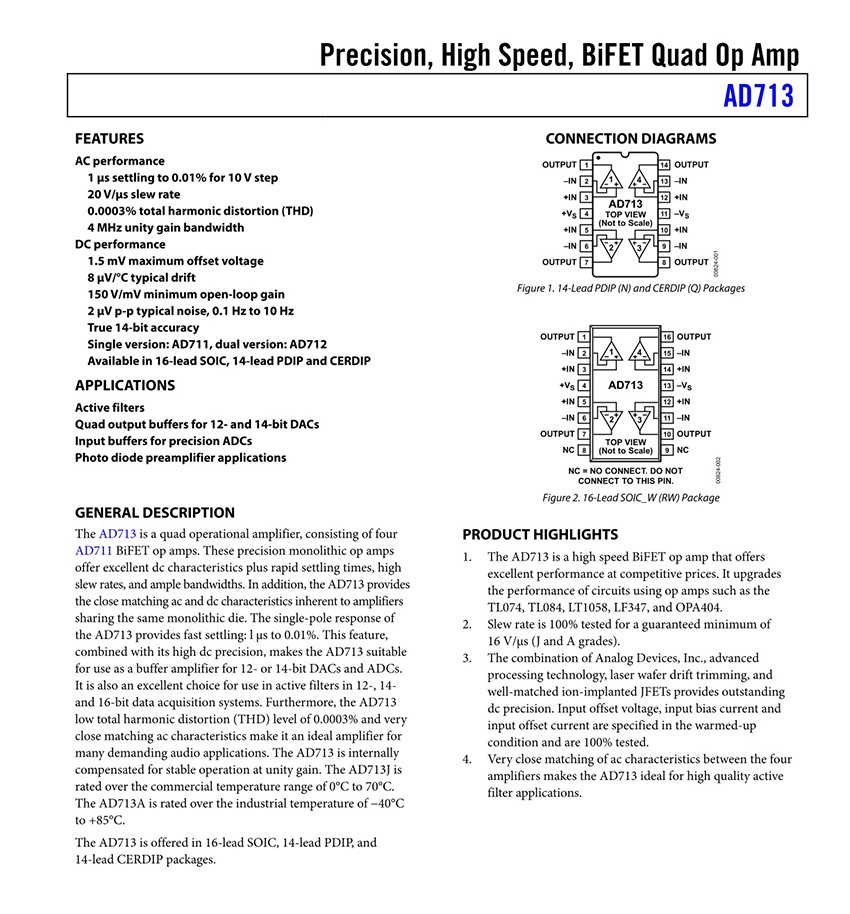

Product datasheet
For more information, please download
