Product Details
|
GENERAL DESCRIPTION The AD603 is a low noise, voltage-controlled amplifier for use in RF and IF AGC systems. It provides accurate, pin-selectable gains of ?11 dB to +31 dB with a bandwidth of 90 MHz or +9 dB to 51+ dB with a bandwidth of 9 MHz. Any intermediate gain range may be arranged using one external resistor. The input referred noise spectral density is only 1.3 nV/√Hz, and power consumption is 125 mW at the recommended ±5 V supplies.
Linear-in-dB gain control Pin-programmable gain ranges ?11 dB to +31 dB with 90 MHz bandwidth 9 dB to 51 dB with 9 MHz bandwidth Any intermediate range, for example ?1 dB to +41 dB with 30 MHz bandwidth Bandwidth independent of variable gain 1.3 nV/√Hz input noise spectral density ±0.5 dB typical gain accuracy
RF/IF AGC amplifiers Video gain controls A/D range extensions Signal measurements |
Product Description
| Type | Description |
| ANSC PART# | ANSC - AD603AQ |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | Original |
| Series |
X-AMP? |
| Packaging | Tube |
| Part Status | / |
| Amplifier Type | Variable Gain |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | 275V/μs |
| -3db Bandwidth | 90 MHz |
| Current - Input Bias | 200 nA |
| Current - Supply | 12.5mA |
| Current - Output / Channel | 50 mA |
| Voltage - Supply Span (Min) | 9.5 V |
| Voltage - Supply Span (Max) | 12.6 V |
| Operating Temperature |
-40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CERDIP |
| Base Product Number | AD603 |

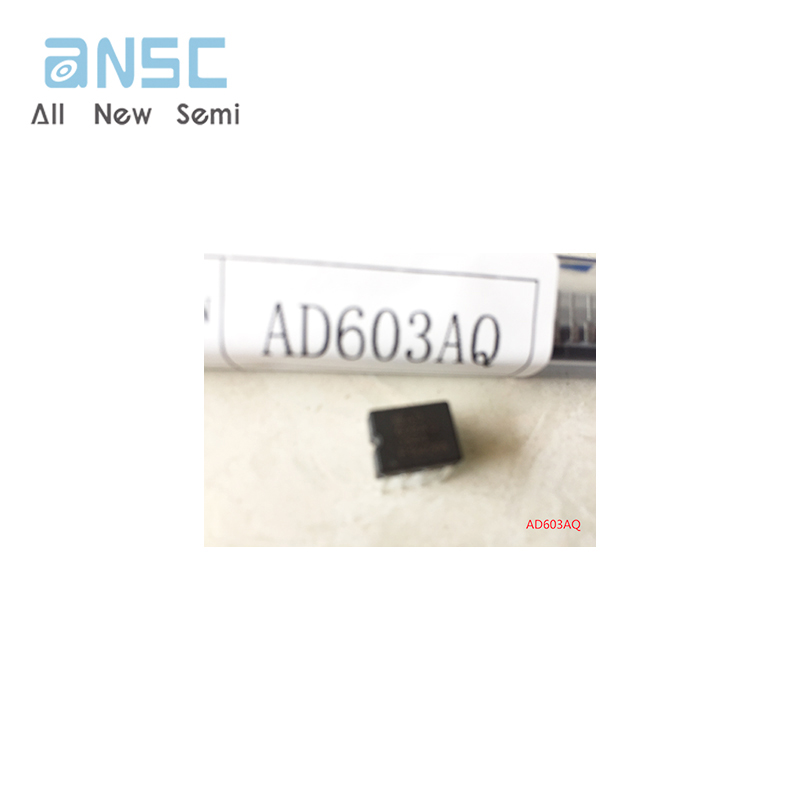

Product Photos

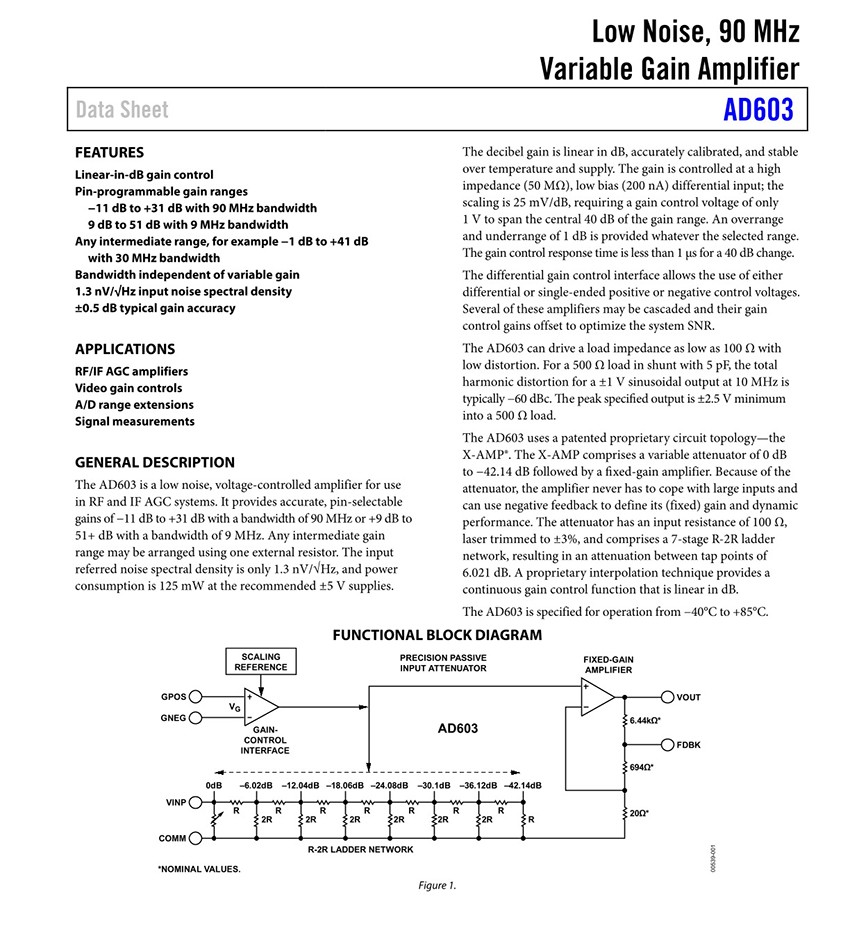

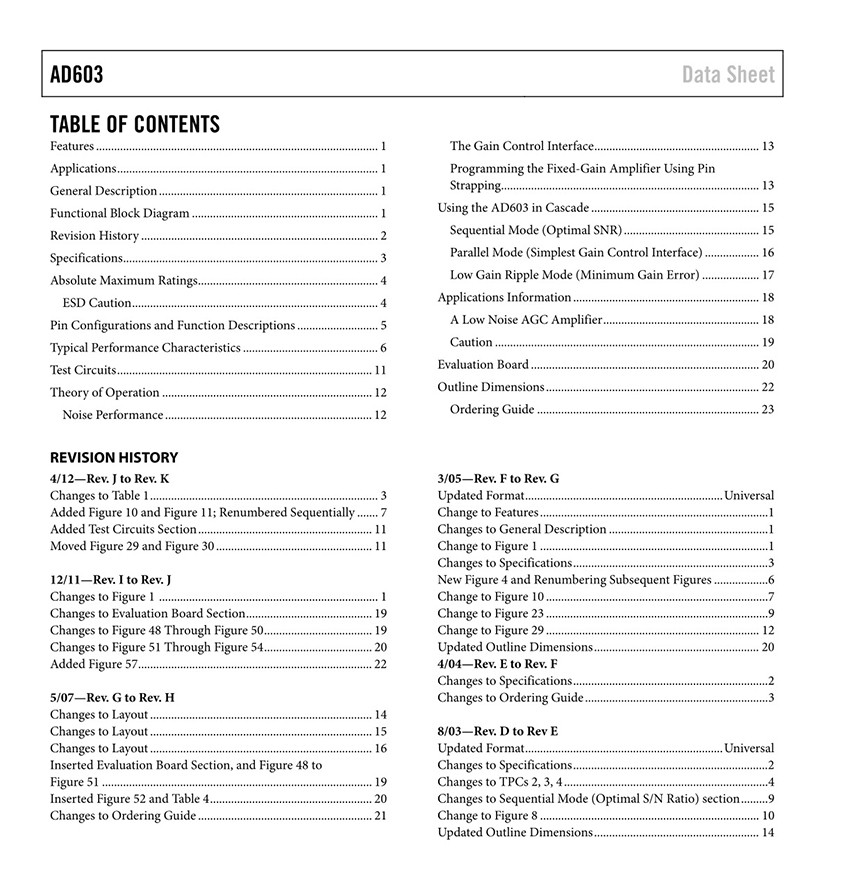

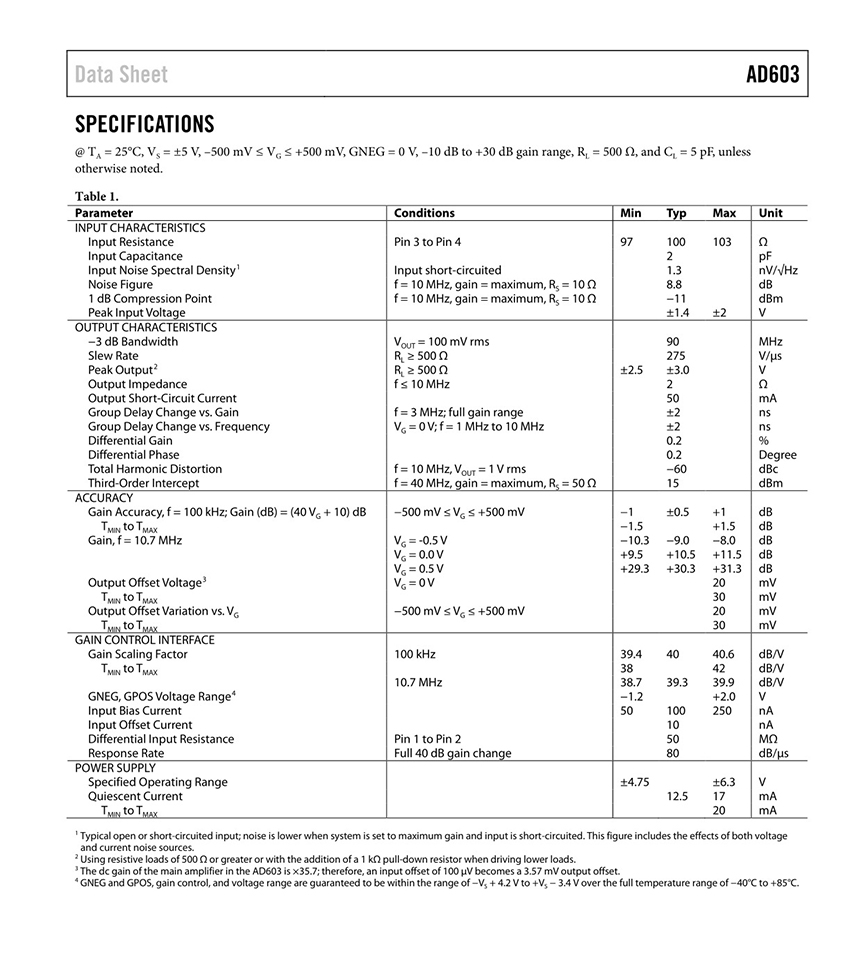

Product datasheet
For more information, please download
