Product Details
|

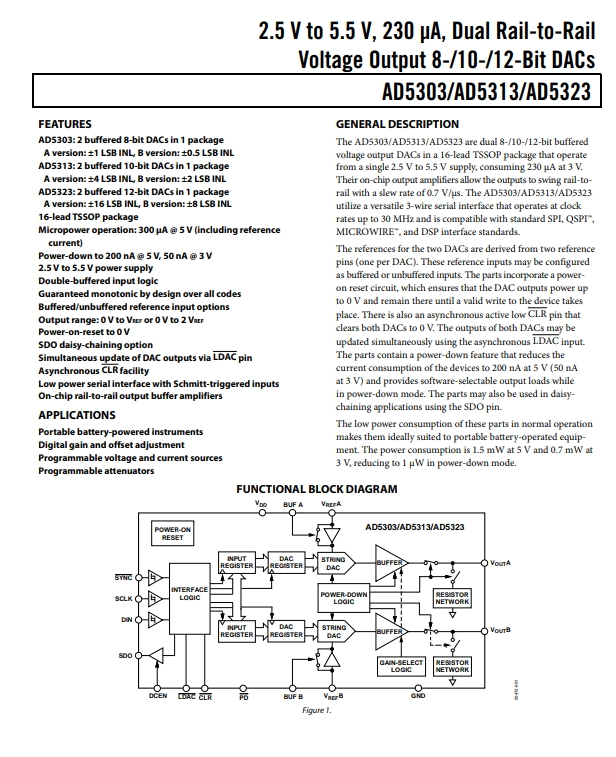

GENERAL DESCRIPTION The AD5303/AD5313/AD5323 are dual 8-/10-/12-bit buffered voltage output DACs in a 16-lead TSSOP package that operate from a single 2.5 V to 5.5 V supply, consuming 230 μA at 3 V. Their on-chip output amplifiers allow the outputs to swing rail-torail with a slew rate of 0.7 V/μs. The AD5303/AD5313/AD5323 utilize a versatile 3-wire serial interface that operates at clock rates up to 30 MHz and is compatible with standard SPI, QSPI?, MICROWIRE?, and DSP interface standards.
AD5303: 2 buffered 8-bit DACs in 1 package A version: ±1 LSB INL, B version: ±0.5 LSB INL AD5313: 2 buffered 10-bit DACs in 1 package A version: ±4 LSB INL, B version: ±2 LSB INL AD5323: 2 buffered 12-bit DACs in 1 package A version: ±16 LSB INL, B version: ±8 LSB INL 16-lead TSSOP package Micropower operation: 300 μA @ 5 V (including reference current) Power-down to 200 nA @ 5 V, 50 nA @ 3 V 2.5 V to 5.5 V power supply Double-buffered input logic Guaranteed monotonic by design over all codes Buffered/unbuffered reference input options Output range: 0 V to VREF or 0 V to 2 VREF Power-on-reset to 0 V SDO daisy-chaining option Simultaneous update of DAC outputs via LDAC pin Asynchronous CLR facility Low power serial interface with Schmitt-triggered inputs On-chip rail-to-rail output buffer amplifiers
Portable battery-powered instruments Digital gain and offset adjustment Programmable voltage and current sources Programmable attenuators |

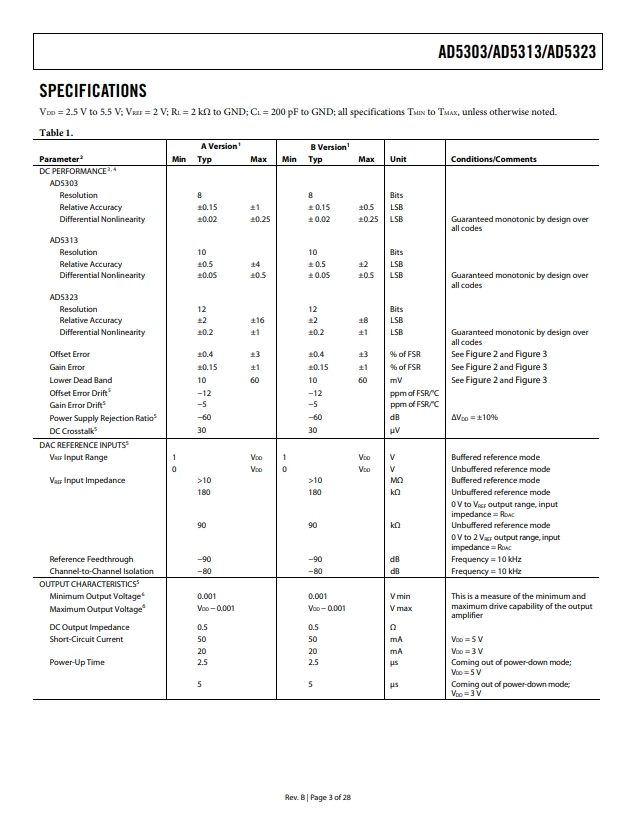

Product Description
| Type | Description |
| ANSC PART# | ANSC - AD5313BRUZ |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Number of Bits | 10 |
| Number of D/A Converters | 2 |
| Settling Time | 9μs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Voltage - Supply, Analog | 2.5V ~ 5.5V |
| Voltage - Supply, Digital | 2.5V ~ 5.5V |
| INL/DNL (LSB) |
±0.5, ±0.05 |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | AD5313 |

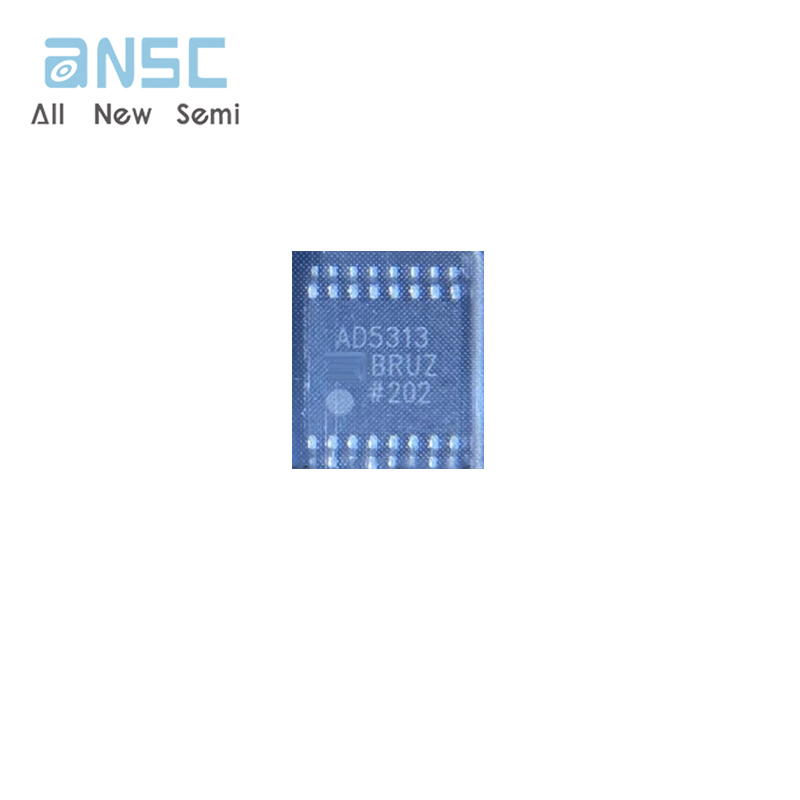

Product Photos
