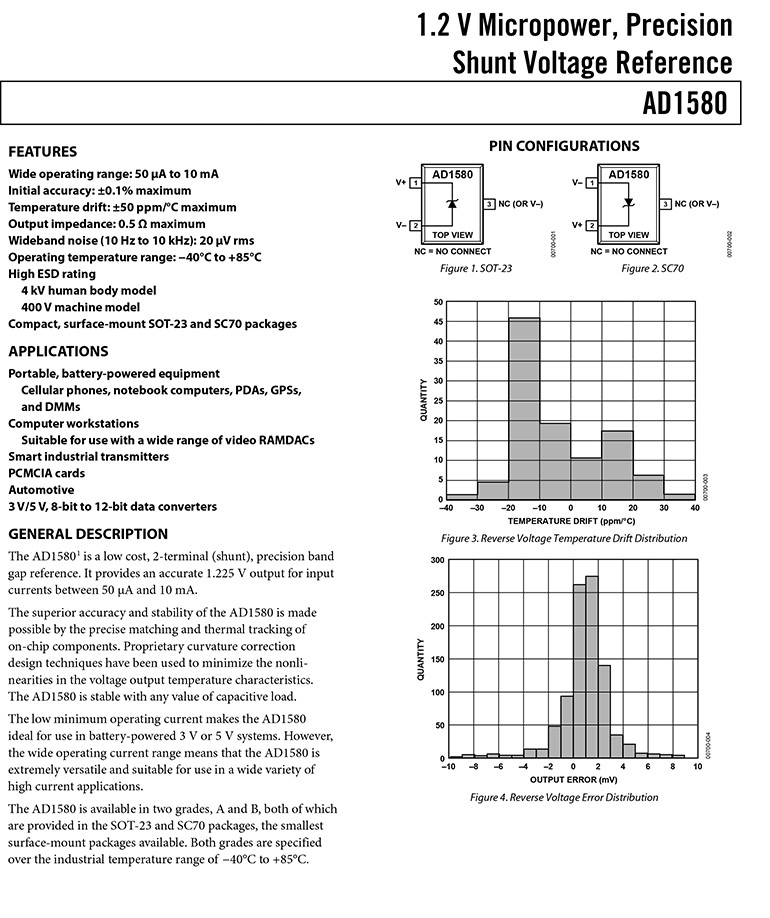

GENERAL DESCRIPTION The AD15801 is a low cost, 2-terminal (shunt), precision band gap reference. It provides an accurate 1.225 V output for input currents between 50 μA and 10 mA. FEATURES Wide operating range: 50 μA to 10 mA Initial accuracy: ±0.1% maximum Temperature drift: ±50 ppm/°C maximum Output impedance: 0.5 Ω maximum Wideband noise (10 Hz to 10 kHz): 20 μV rms Operating temperature range: –40°C to +85°C High ESD rating 4 kV human body model 400 V machine model Compact, surface-mount SOT-23 and SC70 packages APPLICATIONS Portable, battery-powered equipment Cellular phones, notebook computers, PDAs, GPSs, and DMMs Computer workstations Suitable for use with a wide range of video RAMDACs Smart industrial transmitters PCMCIA cards Automotive 3 V/5 V, 8-bit to 12-bit data converters |
Product Description
| Type | Description |
| ANSC PART# | ANSC - AD1580ARTZ-REEL |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Reference Type | Shunt |
| Output Type | Fixed |
| Voltage - Output (Min/Fixed) | 1.225V |
| Current - Output | 10 mA |
| Tolerance | ±0.82% |
| Temperature Coefficient |
100ppm/°C |
| Noise - 0.1Hz to 10Hz | 5μVp-p |
| Noise - 10Hz to 10kHz | 20μVrms |
| Voltage - Input | - |
| Current - Supply | - |
| Current - Cathode | 50 μA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | AD1580 |
