Product Details
NMOS/CMOS Z80 CTC Counter/Timer Circuit
Product Description
| Type# | Description |
| ANSC PART# | ANSC - Z0842004PSC |
| Ihs Manufacturer | ZILOG INC |
| Part Package Code | DIP |
| Package Description | PLASTIC, DIP-40 |
| Pin Count | 40 |
| Reach Compliance Code | Unknown |
| Clock Frequency-Max | 4 MHz |
| External Data Bus Width | 8 |
| Length | 52.325 mm |
| Number of I/O Lines | 16 |
| Number of Ports | 2 |
| Number of Terminals | 40 |
| Operating Temperature-Max |
70 °C |
| Operating Temperature-Min | |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP40,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | 240 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.75 mm |
| Supply Current-Max | 100 mA |
| Supply Voltage-Max | 5.5 V |
| Supply Voltage-Min | 4.5 V |
| Supply Voltage-Nom | 5 V |
| Surface Mount | NO |
| Technology | NMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 15.24 mm |
| uPs/uCs/Peripheral ICs Type | PARALLEL IO PORT, GENERAL PURPOSE |

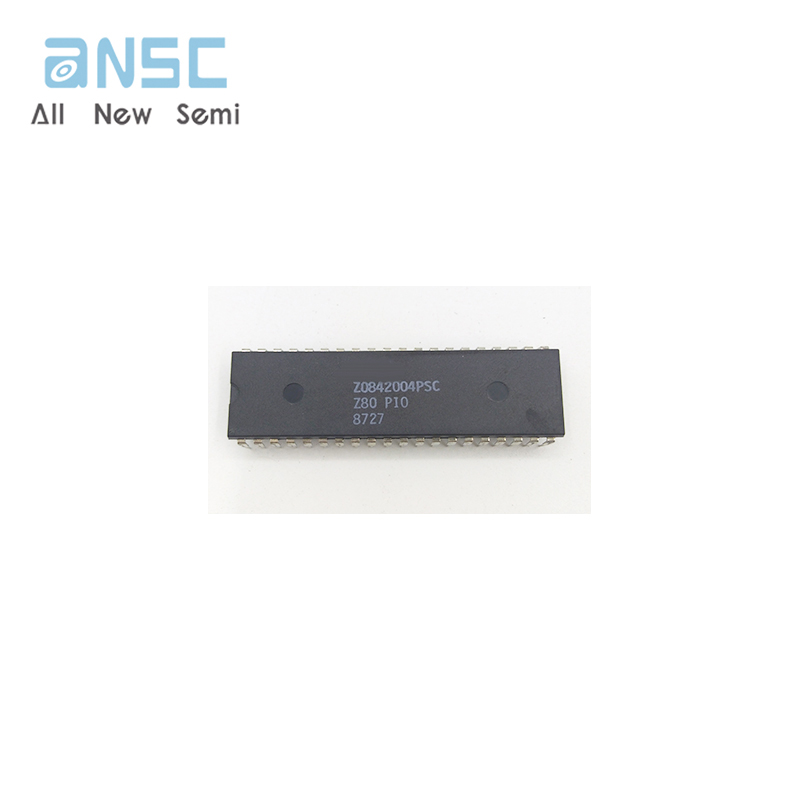

Product Photos

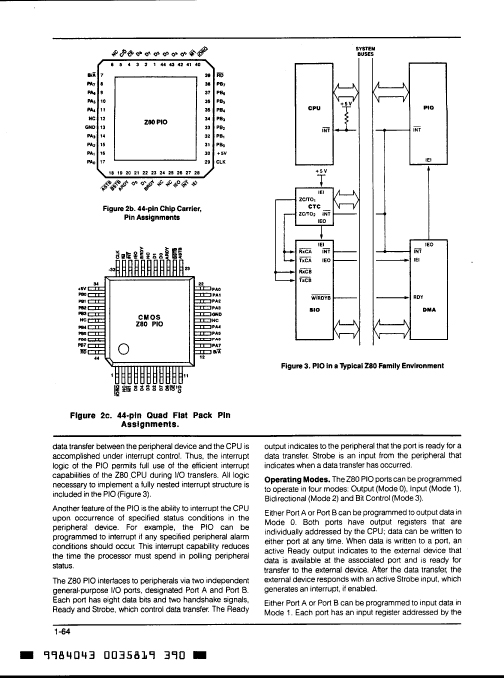

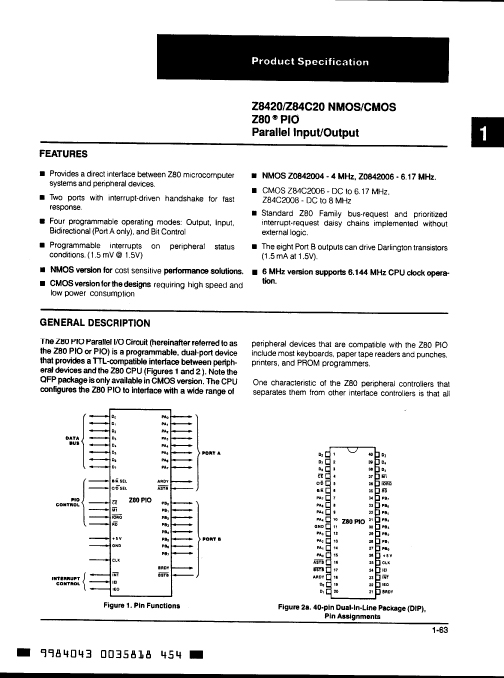

Product datasheet
For more information, please download
