Product Details
|

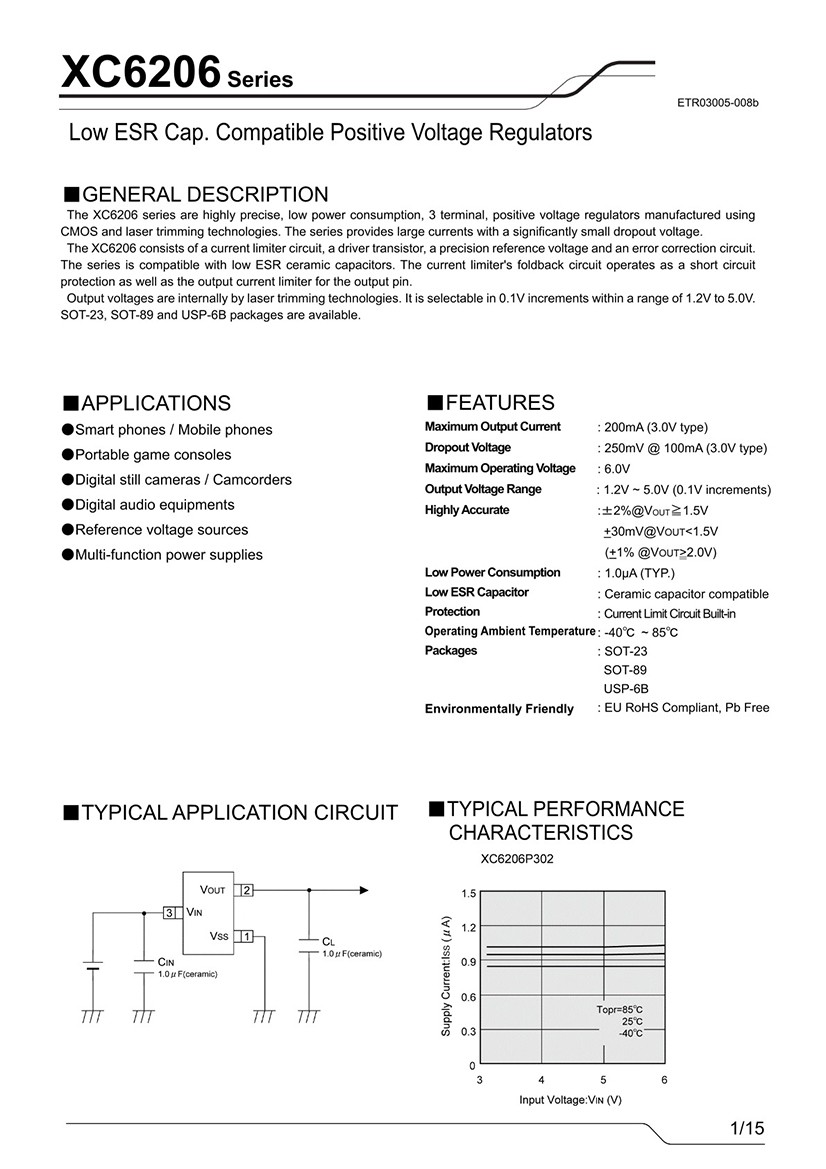

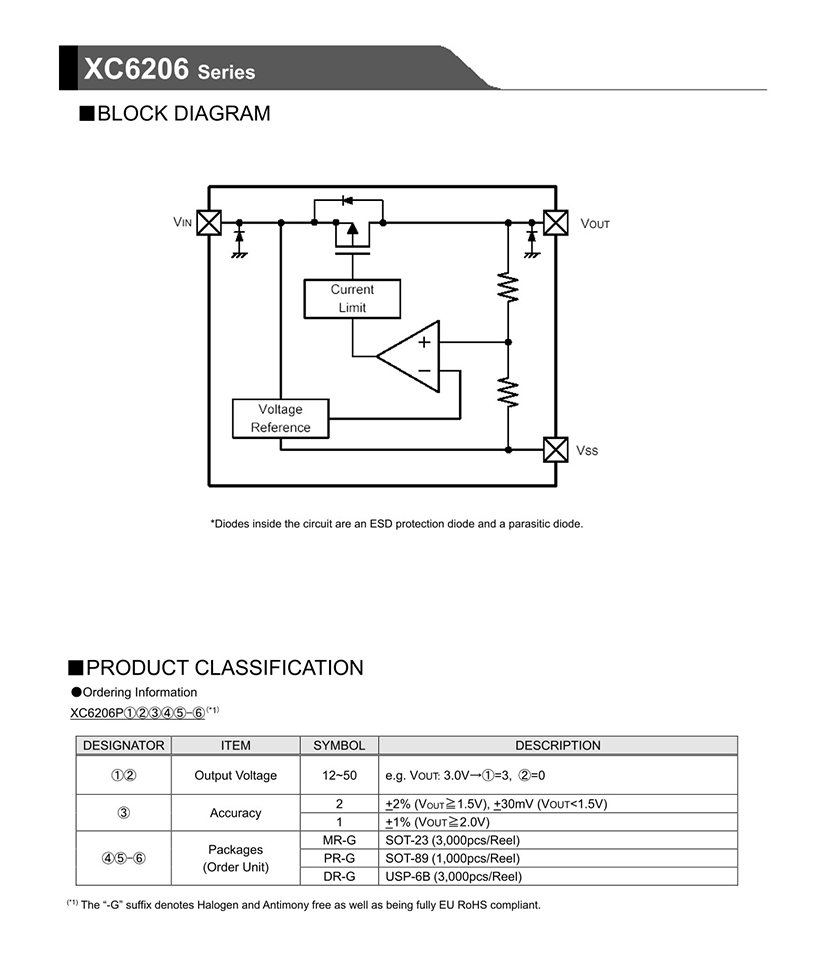

■ GENERAL DESCRIPTION The XC6206 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The currrent limiters foldback circuit also operates as a short protect for the output current limiter and the output pin. Output voltage can be set internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 5.0V.
CMOS Maximum Output Current : 250mA (5.0V type) Dropout Voltage : 250mV @ 100mA (3.0V type) Maximum Operating Voltage : 6.0V Output Voltage Range : 1.2V ~ 5.0V (0.1V increments) Highly Accurate : Fixed voltage accuracy ±2% (+30mV@VOUT<1.5V) (+1% @VOUT>2.0V) Low Power Consumption : 1.0μA (TYP.) Operating Temperature Range : -40°C ~ 85 °C Low ESR Capacitor : Ceramic capacitor compatible Current Limit Circuit Built-in Ultra Small Package : SOT-23 (250mW) SOT-89 (500mW) TO-92 (300mW) USP-6B (100mW) ■ APPLICATIONS ● Battery powered equipment ● Reference voltage sources ● Cameras, video cameras ● Portable AV systems ● Mobile phones ● Portable games ● Cordless phones, wireless communication equipment |
Product Description
| Type | Description |
| ANSC PART# | ANSC - XC6206P332MR-G |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Torex Semiconductor Ltd |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.68V @ 100mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 3 μA |
| Current - Supply (Max) | 3 μA |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Current, Short Circuit |
| Operating Temperature |
-40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

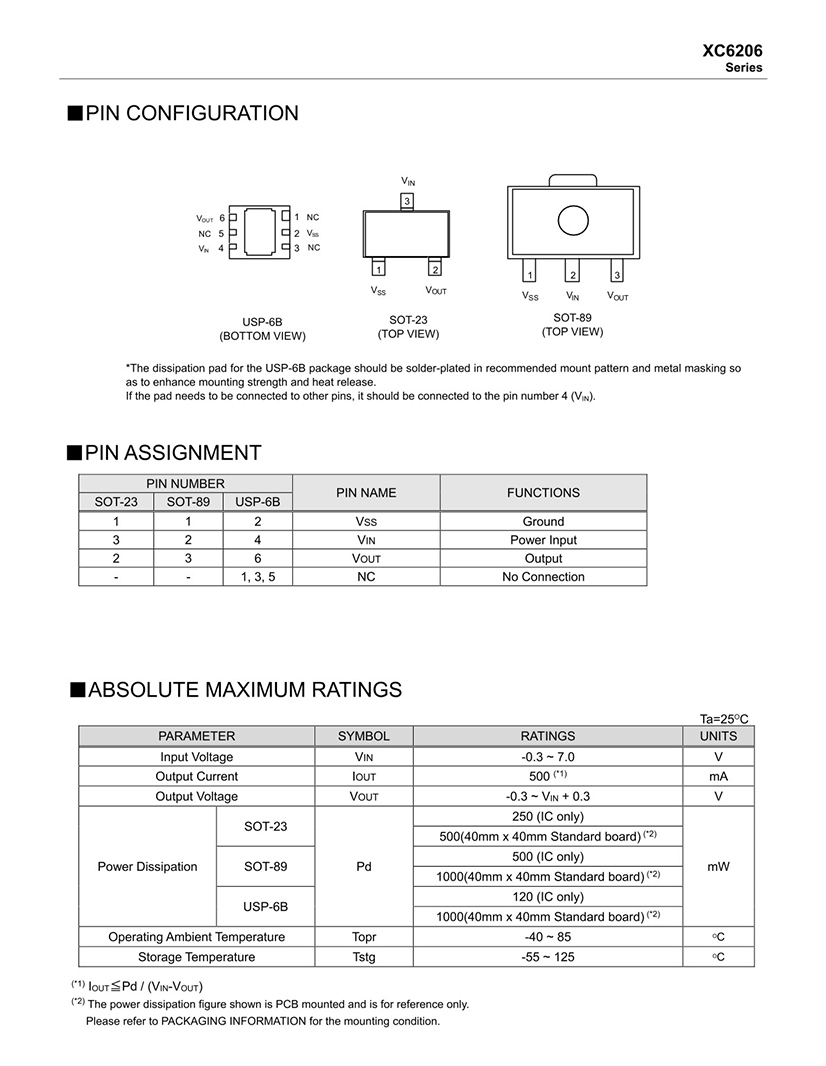

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| Base Product Number | XC6206 |
