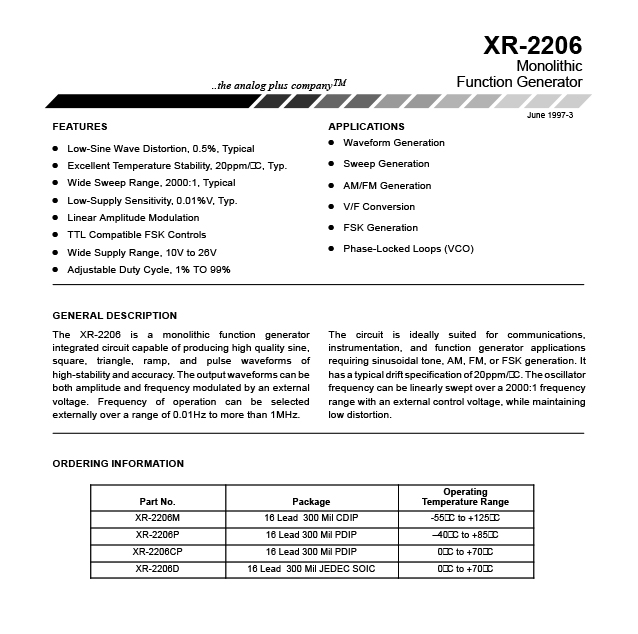

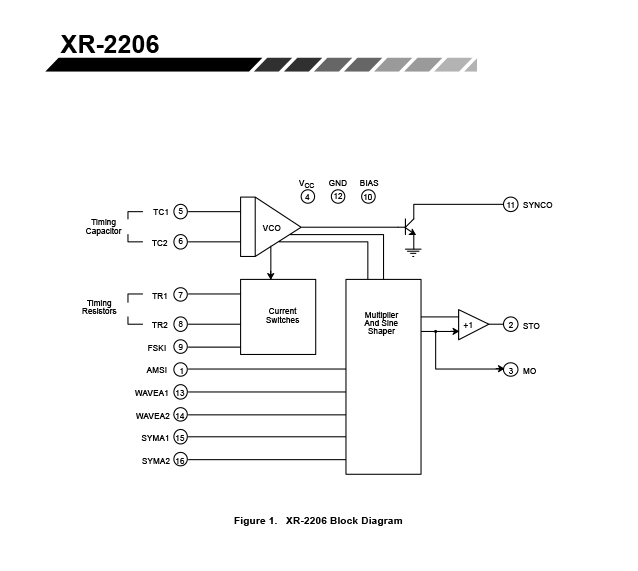

GENERAL DESCRIPTION The XR-2206 is a monolithic function generator integrated circuit capable of producing high quality sine, square, triangle, ramp, and pulse waveforms of high-stability and accuracy. The output waveforms can be both amplitude and frequency modulated by an external voltage. Frequency of operation can be selected externally over a range of 0.01Hz to more than 1MHz. The circuit is ideally suited for communications, instrumentation, and function generator applications requiring sinusoidal tone, AM, FM, or FSK generation. It has a typical drift specification of 20ppm/°C. The oscillator frequency can be linearly swept over a 2000:1 frequency range with an external control voltage, while maintaining low distortion. FEATURES ● Low-Sine Wave Distortion, 0.5%, Typical ● Excellent Temperature Stability, 20ppm/°C, Typ. ● Wide Sweep Range, 2000:1, Typical ● Low-Supply Sensitivity, 0.01%V, Typ. ● Linear Amplitude Modulation ● TTL Compatible FSK Controls ● Wide Supply Range, 10V to 26V ● Adjustable Duty Cycle, 1% TO 99% APPLICATIONS ● Waveform Generation ● Sweep Generation ● AM/FM Generation ● V/F Conversion ● FSK Generation ● Phase-Locked Loops (VCO) |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- XR2206CP |
| Part# | XR2206CP |

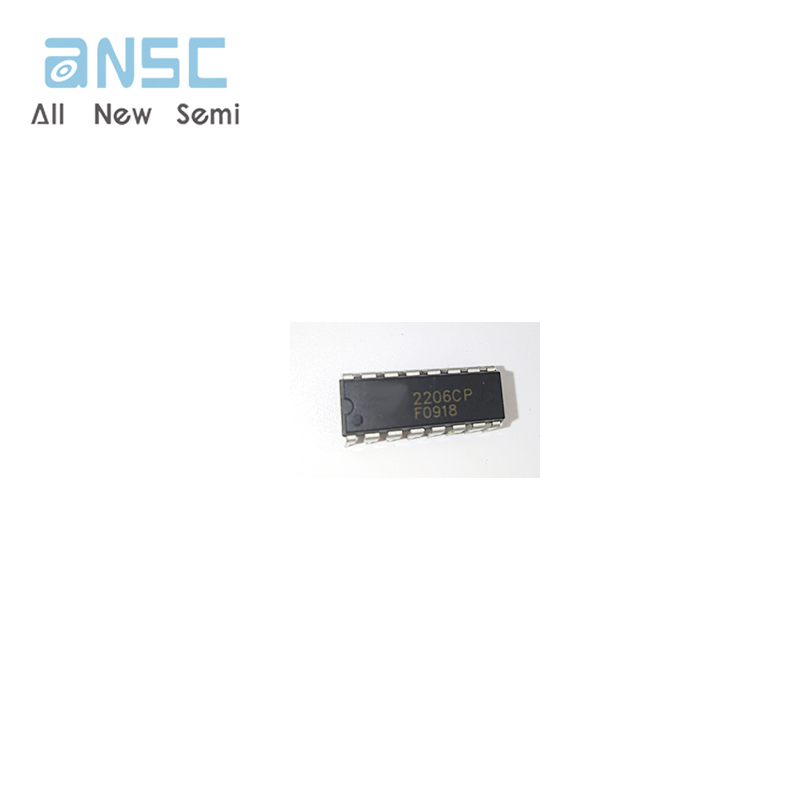

| Type： | Integrated Circuits |
| Manufactor | Original |
| DC | new |
| Part Status | Active |
| Product packaging | DIP16 |
