Product Details
| Description The FAN2560 is a linear low-dropout (LDO) regulator with a split-supply architecture. Separate bias and supply inputs allow bias to be taken directly from the battery, while the input is taken from a lower preregulated source. This allows a smaller differential voltage between input and output, which provides greater efficiency over a wider VBAT range. The FAN2560 is available in a fixed-voltage output, 5-bump, WLCSP package. ■ 55μA Typical Quiescent Current ■ Up to 350mA Output Current ■ 2.9V to 5.5V Bias Supply Voltage ■ VOUT+0.1V to 5.5V Power Input Supply Voltage ■ Fixed Voltage Options: 1.3V and 1.5V ■ Thermal Shutdown Protection (TSD) ■ Input Under-Voltage Lockout (UVLO) ■ Short-Circuit Current Protection (SCP) ■ 5-bump 0.96 x 1.33mm WLCSP ■ Moderate Current Digital Loads ■ DVB-H, DMB Processors ■ Handsets, Smart Phones ■ WLAN DC-DC Converter Modules ■ PDA, DSC, PMP, and MP3 Players ■ Portable Hard Disk Drives |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - UC1525AJ |
| Ihs Manufacturer | TI |
| Part Package Code | DIP |
| Package Description | DIP, DIP16,.3 |
| Pin Count | 16 |
| Samacsys Manufacturer | Texas Instruments |
| Analog IC - Other Type | SWITCHING CONTROLLER |
| Control Mode | VOLTAGE-MODE |
| Control Technique | PULSE WIDTH MODULATION |
| Input Voltage-Max | 35 V |
| Input Voltage-Min | 8 V |
| Input Voltage-Nom | 20 V |
| Length | 19.56 mm |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Output Current-Max | 0.5 A |
| Output Voltage-Max | 5.15 V |
| Output Voltage-Min | 5.05 V |
| Output Voltage-Nom | 5.1 V |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Supply Current-Max (Isup) | 20 mA |
| Supply Voltage-Max (Vsup) | 8 V |
| Surface Mount | NO |
| Switcher Configuration | PUSH-PULL |
| Switching Frequency-Max | 500 kHz |
| Technology | BIPOLAR |
| Temperature Grade | MILITARY |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |

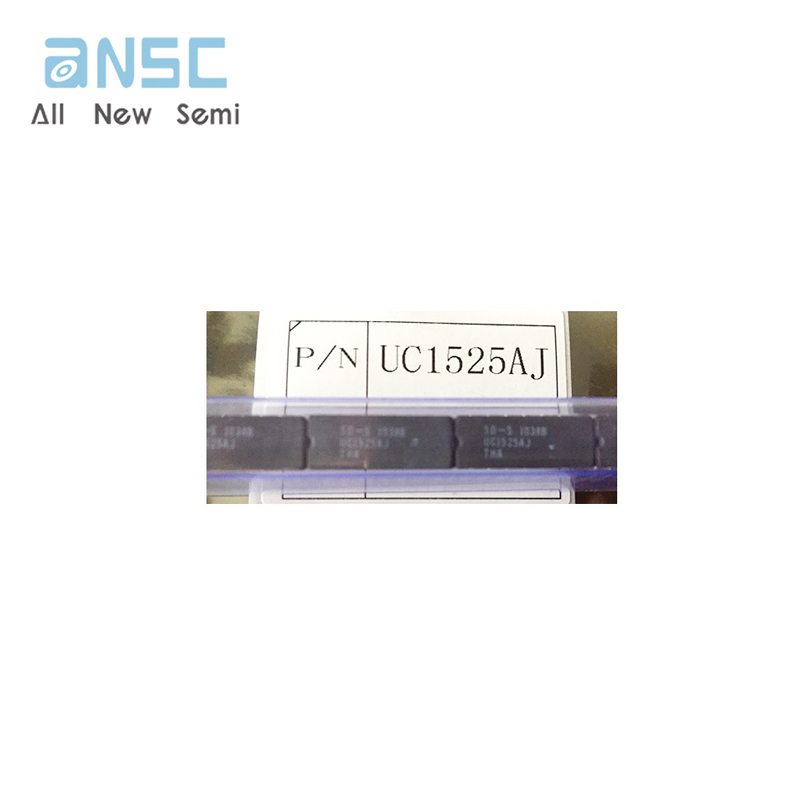

Product Photos

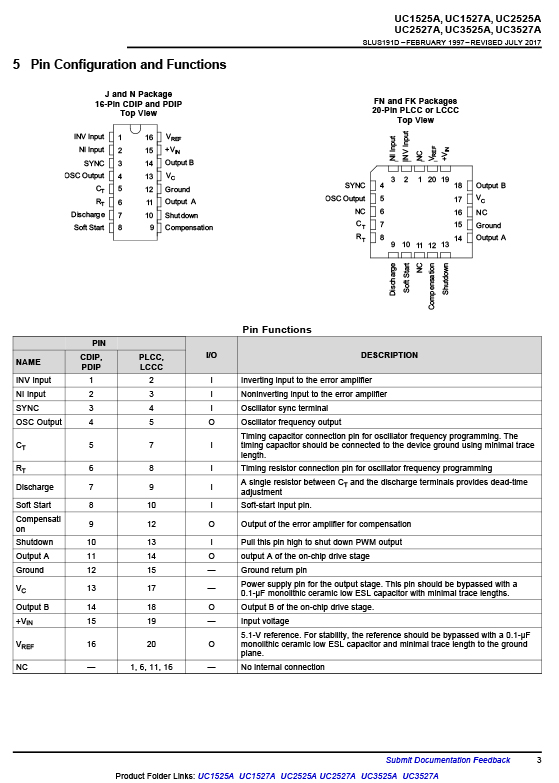

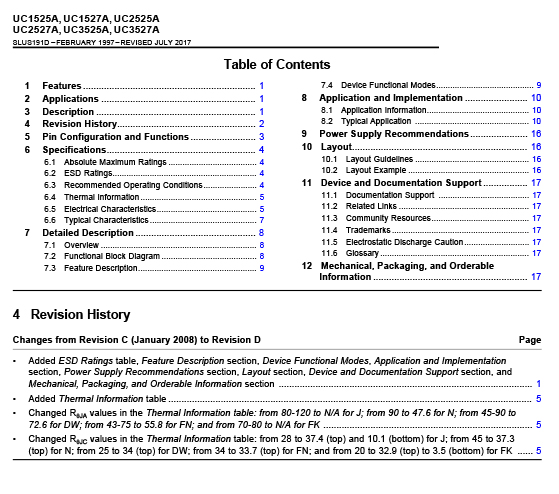

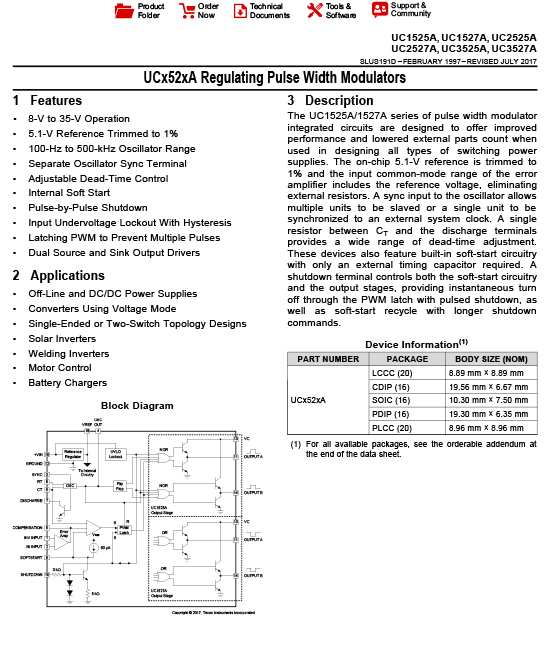

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
