Product Details
GENERAL DESCRIPTION
The μA709 is a monolithic High Gain Operational Amplifier constructed using the Fairchild Planar epitaxial process. It feature low offset, high input impedance, large input common mode range, high output swing under load and low power consumption.
Product Description
| Type# | Description |
| ANSC PART# | ANSC - UA709HM |
| Ihs Manufacturer | FAIRCHILD |
| Package Description | CAN8,.2 |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Frequency Compensation | NO |
| Input Offset Voltage-Max |
6000 μV |
| Low-Offset | NO |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max |
125 °C |
| Operating Temperature-Min |
-55 °C |
| Package Body Material | METAL |
| Package Equivalence Code | CAN8,.2 |
| Package Shape | ROUND |
| Package Style | CYLINDRICAL |
| Qualification Status | Not Qualified |
| Technology | BIPOLAR |
| Temperature Grade | MILITARY |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | WIRE |
| Terminal Position | BOTTOM |

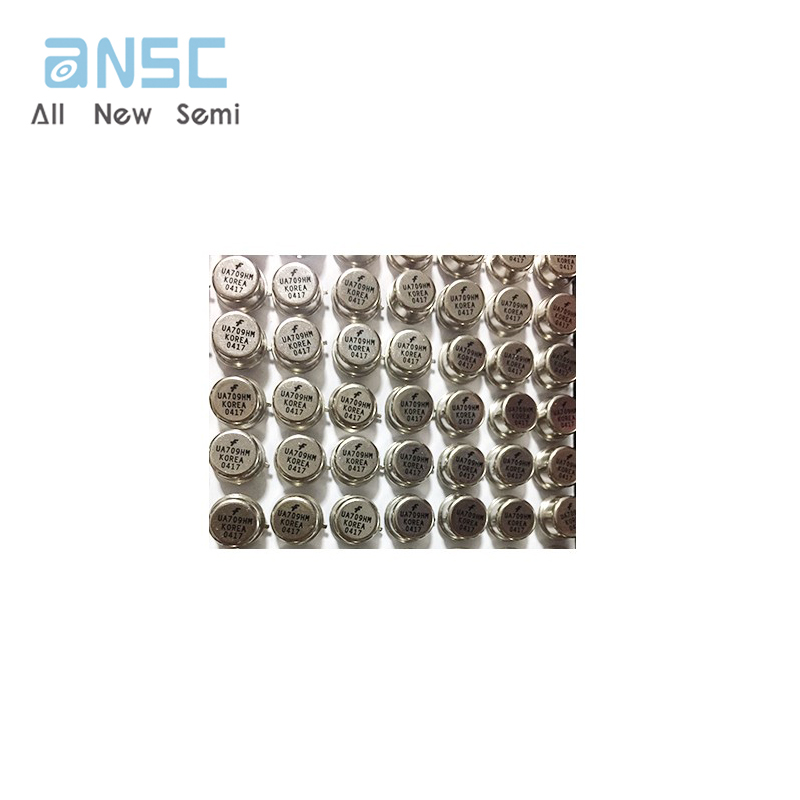

Product Photos

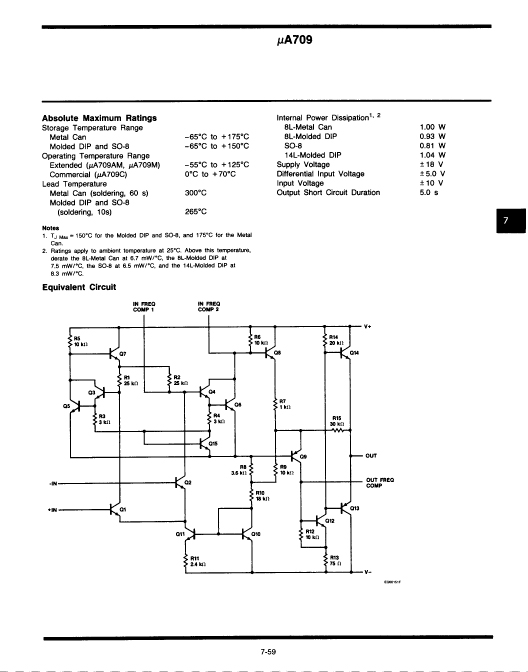

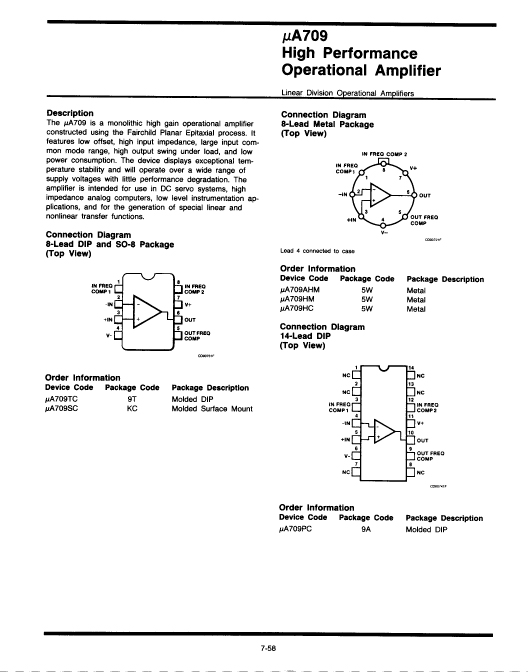

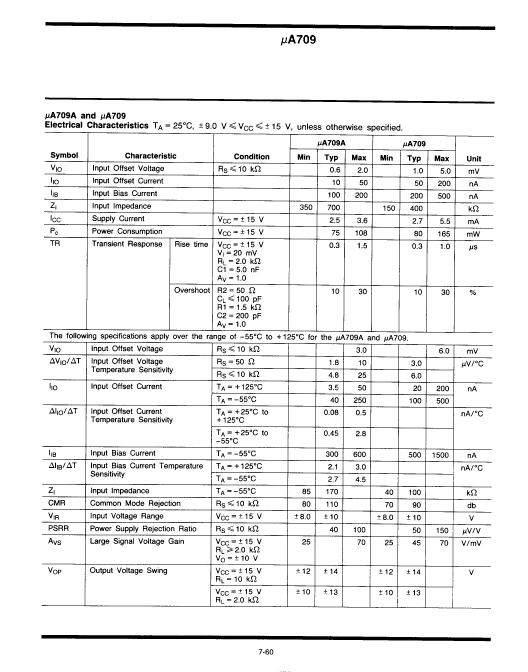

Product datasheet
