Product Details
|
Description The R1LV0408C-I is a 4-Mbit static RAM organized 512-kword × 8-bit. R1LV0408C-I Series has realized higher density, higher performance and low power consumption by employing CMOS process technology (6-transistor memory cell). The R1LV0408C-I Series offers low power standby power dissipation; therefore, it is suitable for battery backup systems. It has packaged in 32-pin SOP, 32-pin TSOP II and 32-pin STSOP. Features ? Single 3 V supply: 2.7 V to 3.6 V ? Access time: 55/70 ns (max) ? Power dissipation: - Active: 6 mW/MHz (typ) - Standby: 1.5 μW (typ) ? Completely static memory. - No clock or timing strobe required ? Equal access and cycle times ? Common data input and output. - Three state output ? Directly TTL compatible. - All inputs and outputs ? Battery backup operation. ? Operating temperature: ?40 to +85°C |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - R1LV0408DSB-5SI |
| Manufacturer | RENESAS |
| Part Package Code | TSOP2 |
| Package Description | SOP, TSOP32,.46 |
| Pin Count | 32 |
| Access Time-Max | 55 ns |
| I/O Type | COMMON |
| Memory Density | 4194304 bit |
| Memory IC Type | STANDARD SRAM |
| Memory Width | 8 |
| Number of Functions | 1 |
| Number of Terminals | 32 |
| Number of Words | 524288 words |
| Number of Words Code | 512000 |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Organization | 512KX8 |
| Output Characteristics | 3-STATE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | TSOP32,.46 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Parallel/Serial | PARALLEL |
| Qualification Status | Not Qualified |
| Standby Voltage-Min | 2 V |
| Supply Current-Max | 0.025 mA |
| Supply Voltage-Max (Vsup) | 3.6 V |
| Supply Voltage-Min (Vsup) | 2.7 V |
| Supply Voltage-Nom (Vsup) | 3 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |

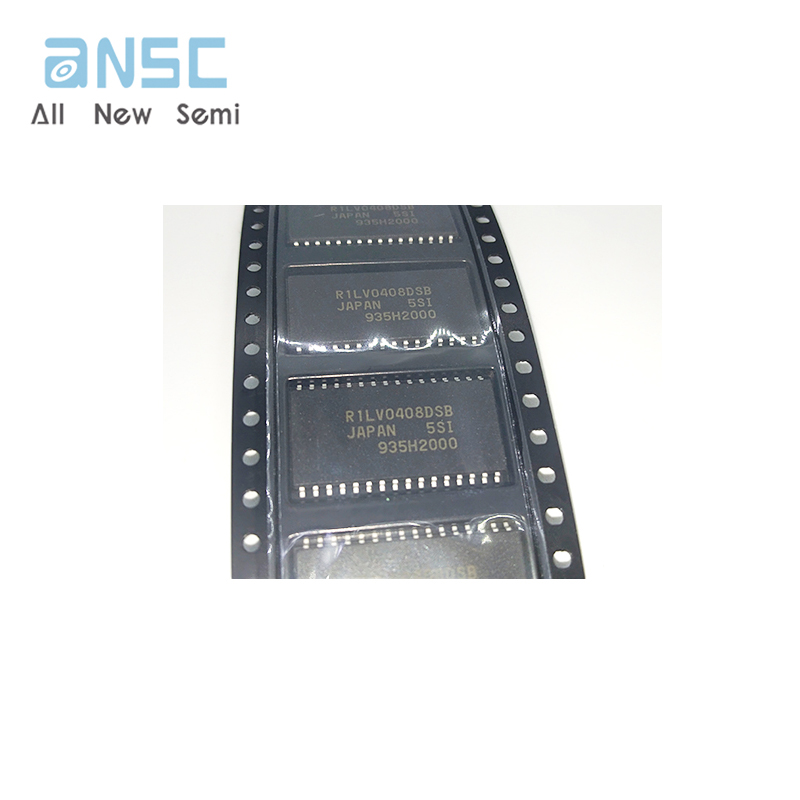

Product Photos

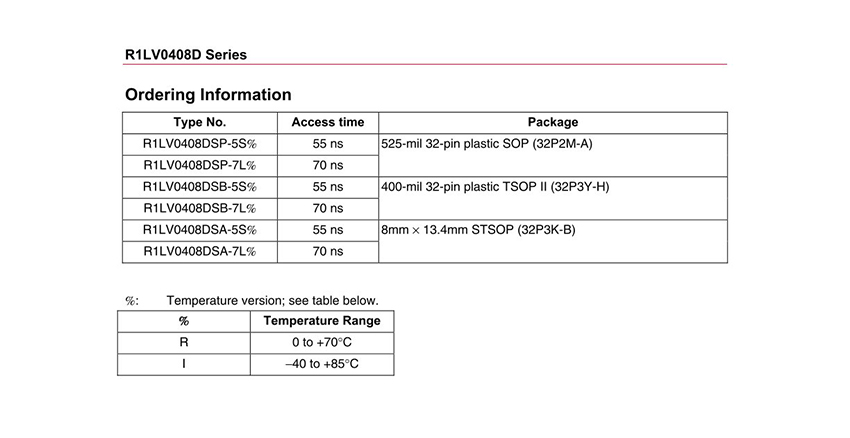

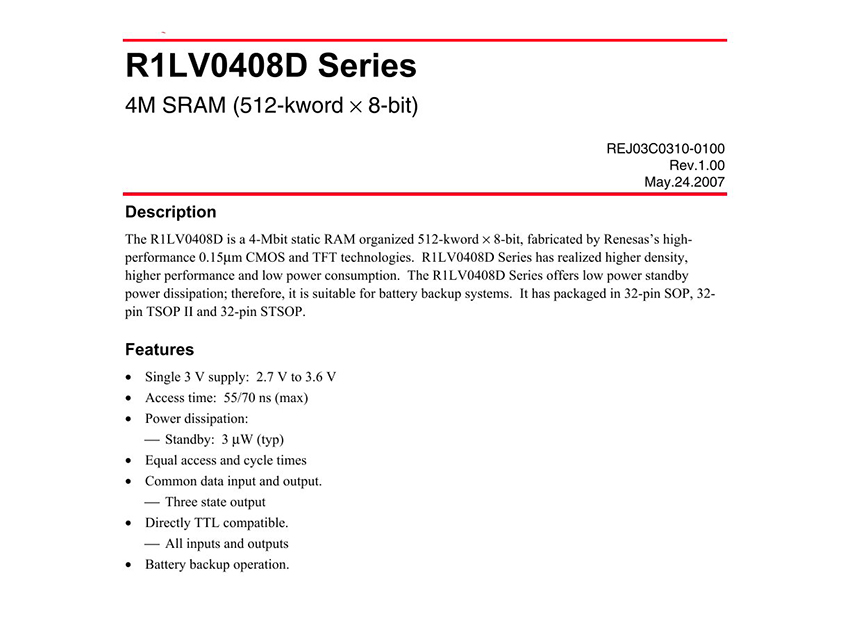

Product datasheet
For more information, please download
