Product Details
| DESCRIPTION The LTC?6930 series is a family of very low power precision silicon oscillators with a frequency error less than 0.09%. For each oscillator, the user can select one of 8 frequencies between 32.768kHz and 8.192MHz. Based on a fixed master oscillator frequency, internal frequency dividers between 1 and 128 provide the 8 different frequencies. The LTC6930 requires no external components other than power supply bypass capacitors. Requiring only a single 1.7V to 5.5V supply enables operation from a single Li-Ion cell or 2 AA alkaline cells. ■ Frequency Error <0.09% Max at 25°C ■ Startup Time <110μs at All Frequencies ■ 1.7V to 5.5V Single Supply Operation ■ 105μA Typical Supply Current at 32kHz, V+ = 3V ■ 490μA Typical Supply Current at 8MHz, V+ = 3V ■ Typical RMS Period Jitter <0.15% at V+ = 3V ■ No External Components to Set Frequency ■ 5 Options Cover 32.768kHz to 8.192MHz: LTC6930-4.19: 4.194304MHz ÷ N LTC6930-5.00: 5.000000MHz ÷ N LTC6930-7.37: 7.373800MHz ÷ N LTC6930-8.00: 8.000000MHz ÷ N LTC6930-8.19: 8.192000MHz ÷ N Where N = 1, 2, 4, 8, 16, 32, 64, 128 (N Determined by State of DIVA, DIVB, DIVC Pins) ■ –40°C to 125°C Operating Temperature Range ■ Tiny 2mm × 3mm DFN or MS8 Package ■ Digitally Controlled Oscillator ■ Microprocessor Clock ■ Power Supply Clock ■ Portable and Battery Operated Devices |
Product Description
| Type | Description |
| ANSC PART# | ANSC - LTC6930IMS8-8.00#PBF |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Programmable Timers and Oscillators | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Type | Oscillator, Silicon |
| Count | - |
| Frequency | 8MHz |
| Voltage - Supply | 1.7V ~ 5.5V |
| Current - Supply | 926 μA |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Mounting Type | Surface Mount |
| Base Product Number | LTC6930 |

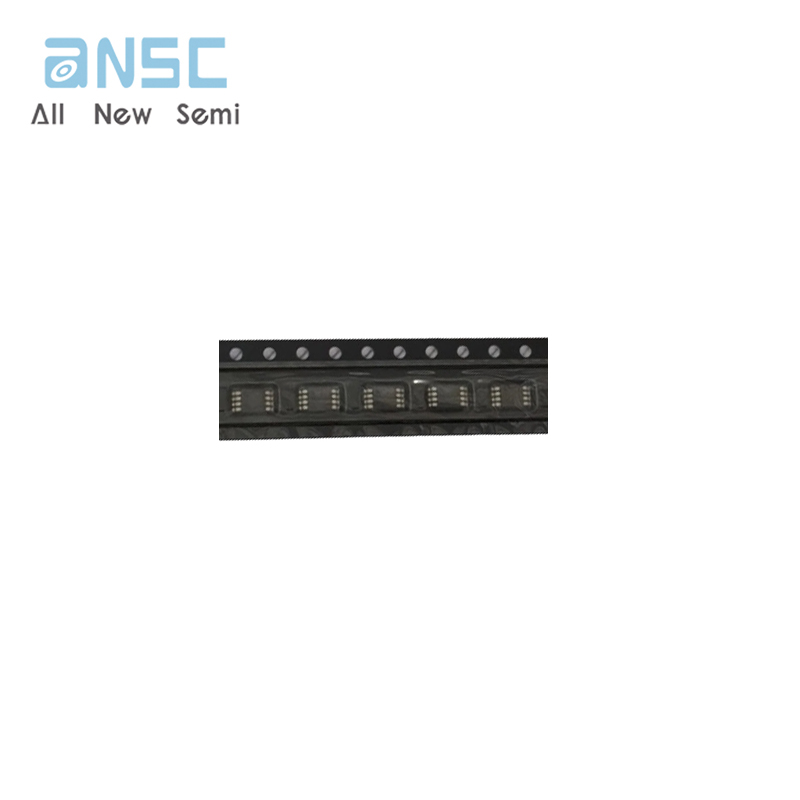

Product Photos

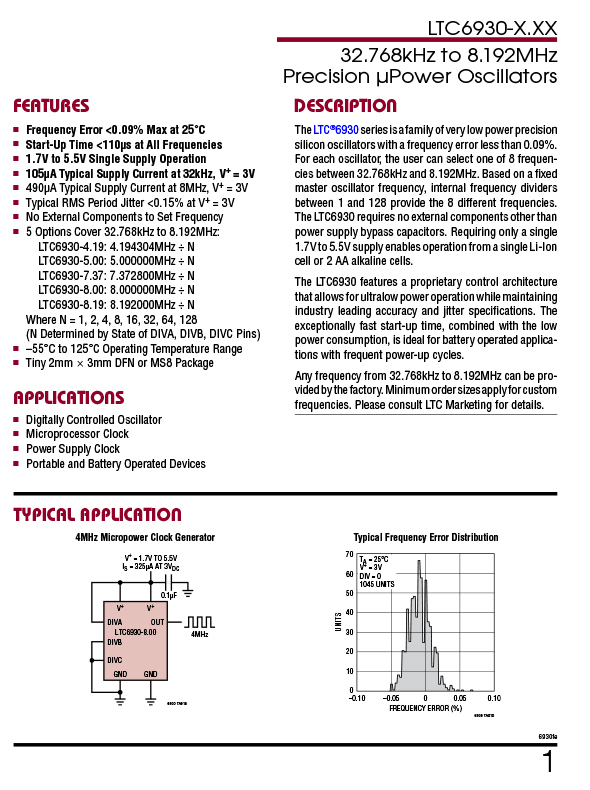

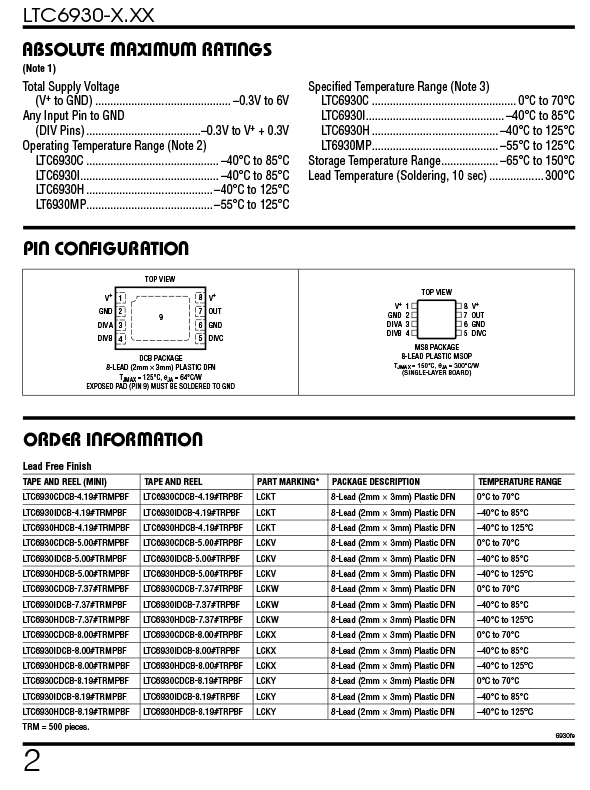

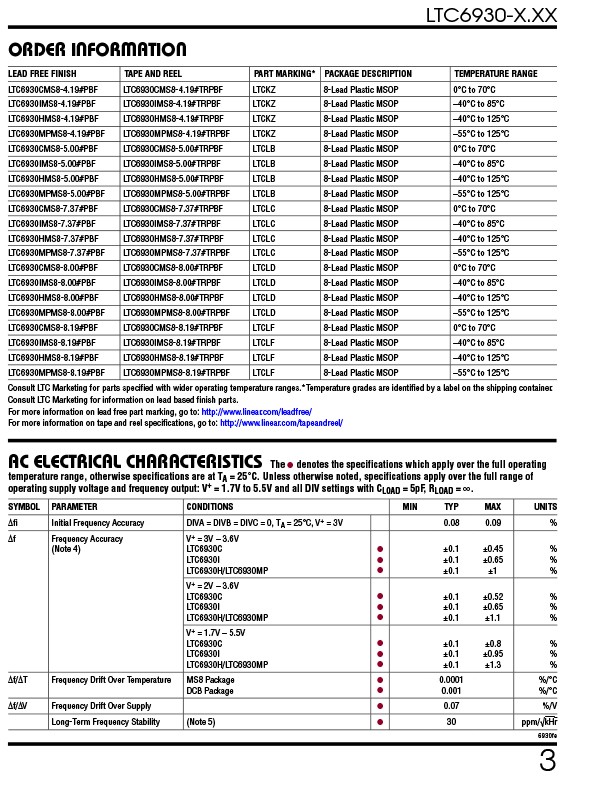

Product datasheet
