Product Description
| Type# | Description |
| ANSC PART# | ANSC - 74F02DC |
| Ihs Manufacturer | NATIONAL SEMICONDUCTOR CORP |
| Package Description | DIP-14 |
| Family | F/FAST |
| Length | 19.43 mm |
| Load Capacitance (CL) | 50 pF |
| Logic IC Type | NOR GATE |
| Max I(ol) | 0.02 A |
| Number of Functions | 4 |
| Number of Inputs | 2 |
| Number of Terminals | 14 |
| Operating Temperature-Max | 70 °C |
| Operating Temperature-Min | / |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Power Supply Current-Max (ICC) | 13 mA |
| Prop. Delay@Nom-Sup | 6.5 ns |
| Propagation Delay (tpd) | 5.3 ns |
| Qualification Status | Not Qualified |
| Schmitt Trigger | NO |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |

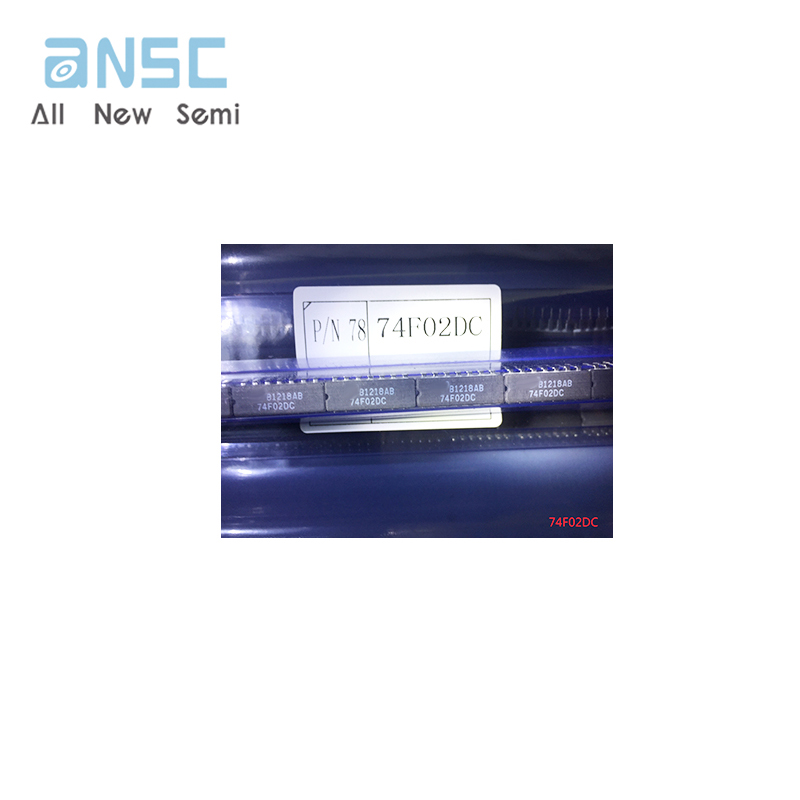

Product Photos

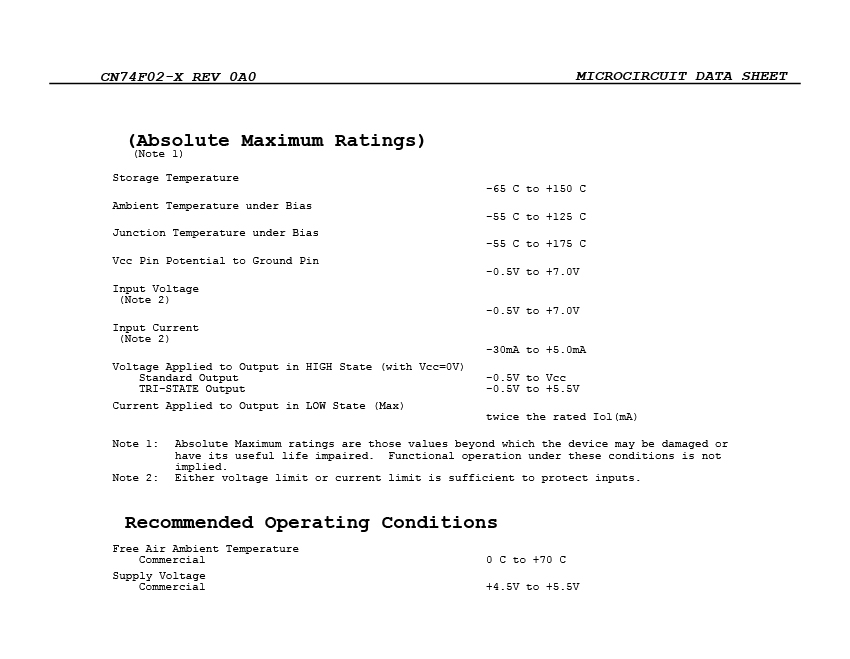

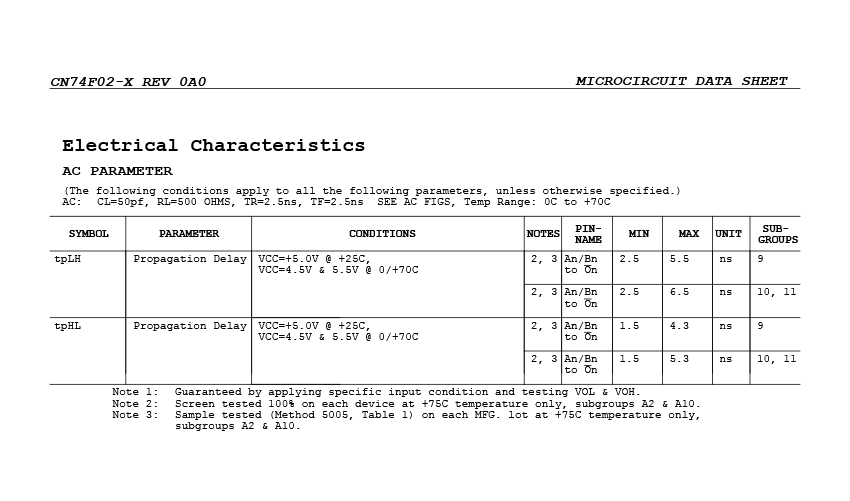

Product datasheet
