Product Description The 5962-8605301LA is a programmable array logic (PAL) integrated circuit (IC) from Texas Instruments, designed for use in a variety of applications. This device is a member of the PAL-TYPE family, featuring 10 macrocells, 11 dedicated inputs, and 10 I/O lines. With a maximum clock frequency of 22 MHz, this IC is suitable for high-speed applications. Features 10 macrocells for complex logic functions 11 dedicated inputs for direct connection to external signals 10 I/O lines for data input/output Programmable logic type: OT PLD (One-Time Programmable Programmable Logic Device) Operating temperature range: -55°C to 125°C Power supply: 5 V Package type: DIP (Dual In-Line Package) with 24 pins Terminal pitch: 2.54 mm Terminal finish: Tin/Lead (Sn/Pb) - hot dipped
Primary applications: High-speed logic applications requiring complex logic functions Industrial control systems Automotive electronics Secondary applications: Consumer electronics Medical devices Aerospace and defense systems |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - 5962-8605301LA |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC |
| Part Package Code | DIP |
| Package Description | DIP-24 |
| Pin Count | 24 |
| Architecture | PAL-TYPE |
| Clock Frequency-Max | 22 MHz |
| JESD-30 Code | R-GDIP-T24 |
| Length | 32.005 mm |
| Number of Dedicated Inputs | 11 |
| Number of I/O Lines | 10 |
| Number of Inputs | 22 |
| Number of Outputs | 10 |
| Number of Product Terms | 132 |
| Number of Terminals | 24 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min |
-55 °C |
| Organization | 11 DEDICATED INPUTS, 10 I/O |
| Output Function | MACROCELL |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP24,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Programmable Logic Type | OT PLD |
| Propagation Delay | 30 ns |
| Qualification Status | Not Qualified |
| Screening Level | MIL-STD-883 |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Max | 5.5 V |
| Supply Voltage-Min | 4.5 V |
| Supply Voltage-Nom | 5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | MILITARY |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |
Product Photos

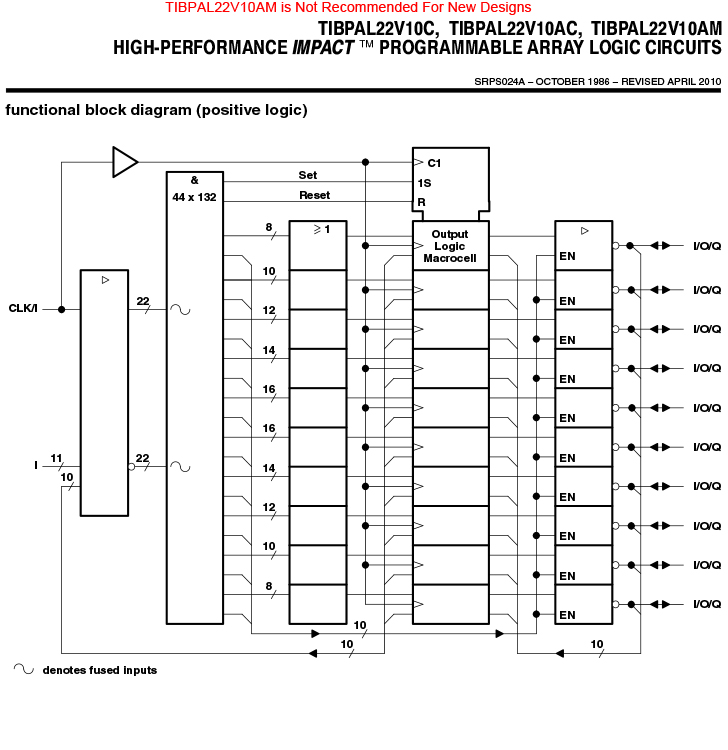

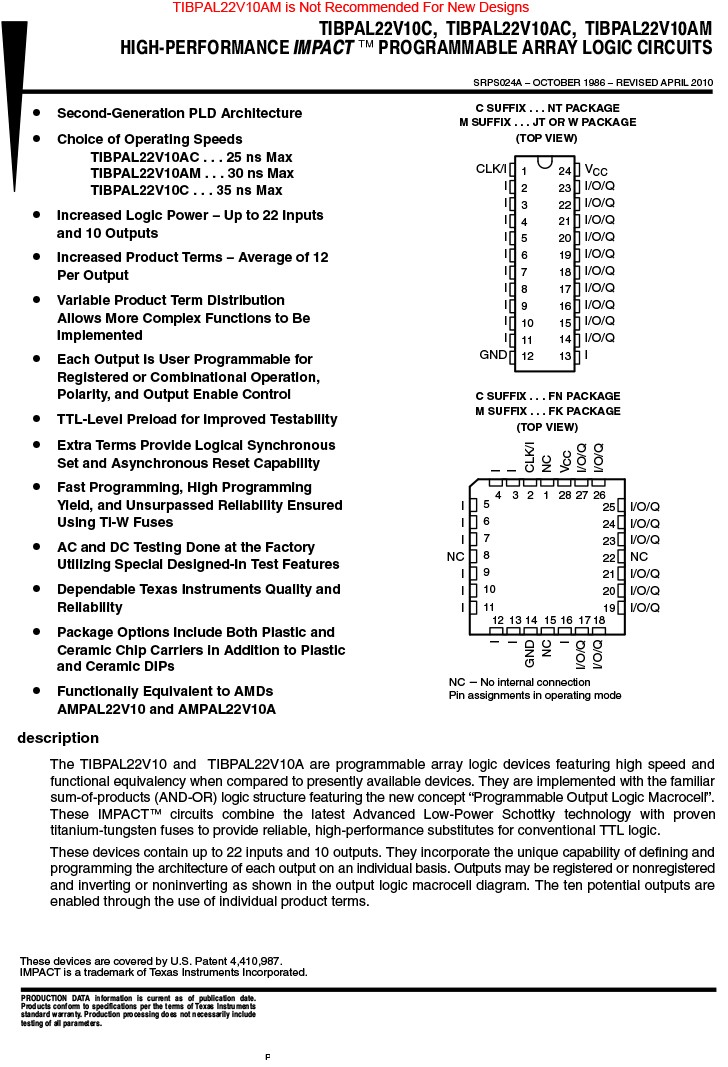

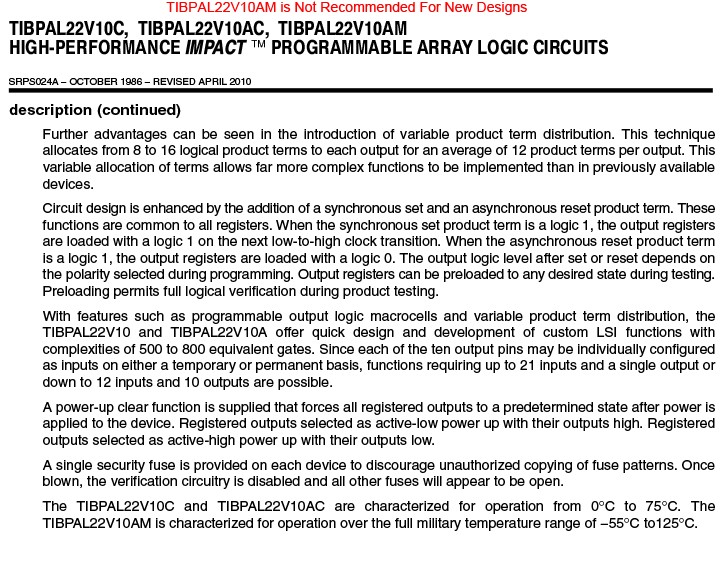

Product datasheet
