Product Details
|
General Description The LVT16244 and LVTH16244 contain sixteen non-inverting buffers with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus oriented transmitter/receiver. The device is nibble controlled. Individual 3-STATE control inputs can be shorted together for 8-bit or 16-bit operation.
■ Input and output interface capability to systems at 5V VCC ■ Bushold data inputs eliminate the need for external pull-up resistors to hold unused inputs (74LVTH16244), also available without bushold feature (74LVT16244). ■ Live insertion/extraction permitted ■ Power Up/Down high impedance provides glitch-free bus loading ■ Outputs source/sink 32 mA/64 mA ■ Functionally compatible with the 74 series 16244 ■ Latch-up performance exceeds 500 mA ■ ESD performance: Human-body model > 2000V Machine model > 200V Charged-drive model > 1000V ■ Also packaged in plastic Fine-Pitch Ball Grid Array (FBGA) |
Product Description
| Type | Description |
| ANSC PART# | ANSC - 74LVTH16244MTD |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Manufacturer | Fairchild Semiconductor |
| Series | 74LVTH |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 4 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 32mA, 64mA |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature |
-40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 48-TSSOP |
| Base Product Number | 74LVTH16244 |

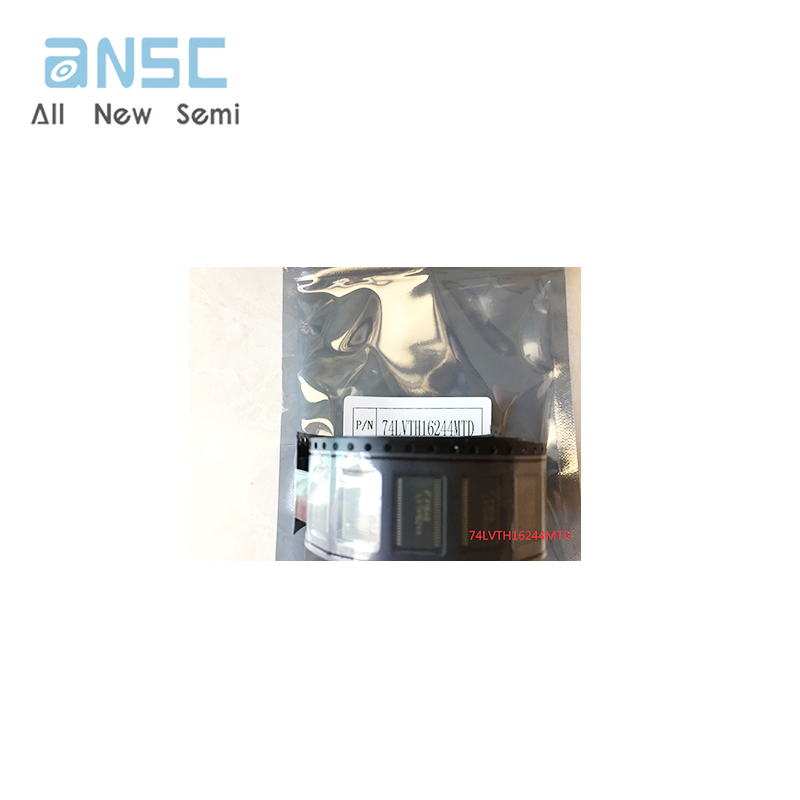

Product Photos

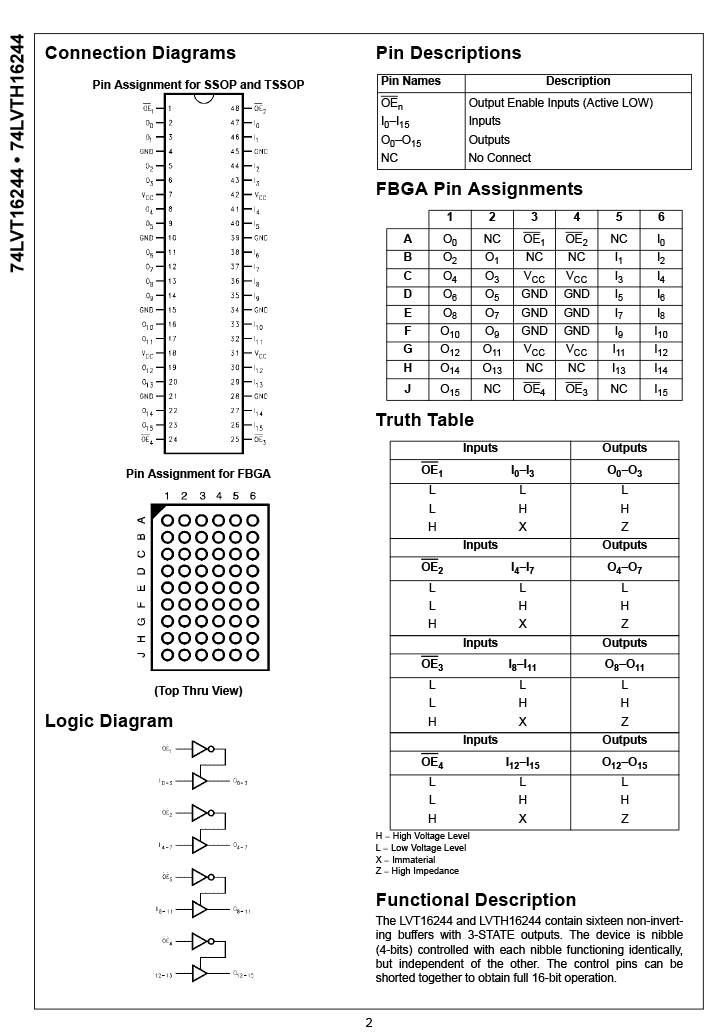

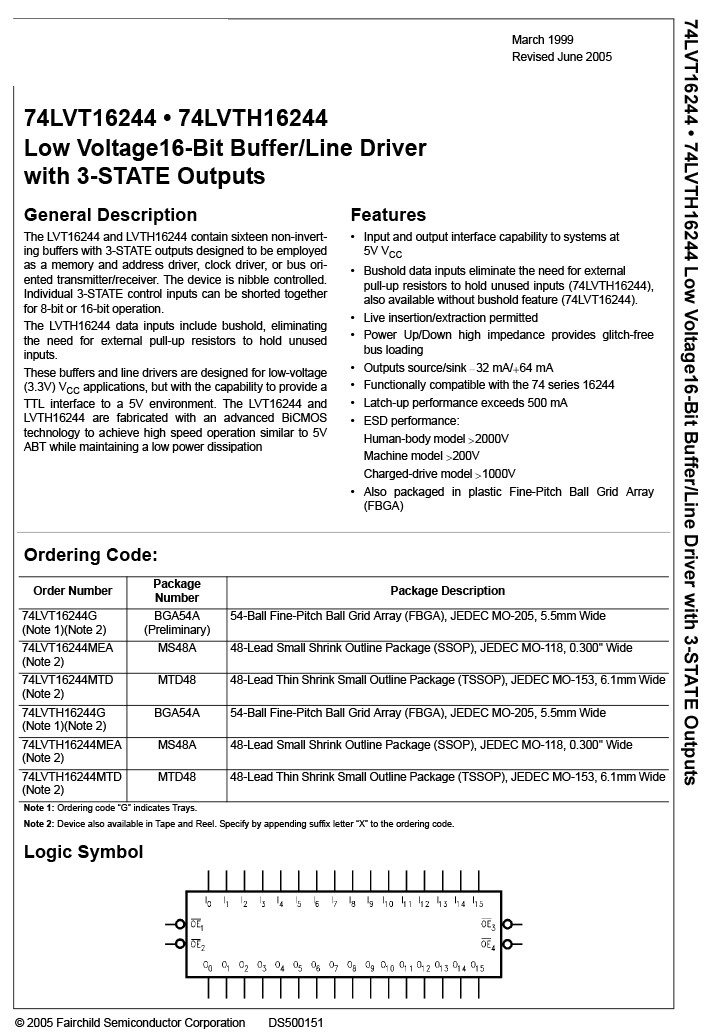

Product datasheet
For more information, please download
