Product Details
| OCTAL D-TYPE FLIP-FLOP WITH 3-STATE OUTPUTS The MC54/74F374 is a high-speed, low-power octal D-type flip-flop featuring separate D-type inputs for each flip-flop and 3-state outputs for bus oriented applications. A buffered Clock (CP) and Output Enable (OE) are common to all flip-flops. ? Edge-triggered D-Type Inputs ? Buffered Positive Edge-triggered Clock ? 3-State Outputs for Bus-Oriented Applications ? ESD > 4000 Volts |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - 54F374DMQB |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC |
| Part Package Code | DIP |
| Package Description | CERAMIC, DIP-20 |
| Pin Count | 20 |
| Family | F/FAST |
| JESD-30 Code | R-GDIP-T20 |
| Length | 25.019 mm |
| Logic IC Type | BUS DRIVER |
| Number of Bits | 8 |
| Number of Functions | 1 |
| Number of Ports | 2 |
| Number of Terminals | 20 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package | DIP |
| Package Equivalence | DIP20,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Propagation Delay (tpd) | 11 ns |
| Screening Level | MIL-STD-883 |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | MILITARY |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |

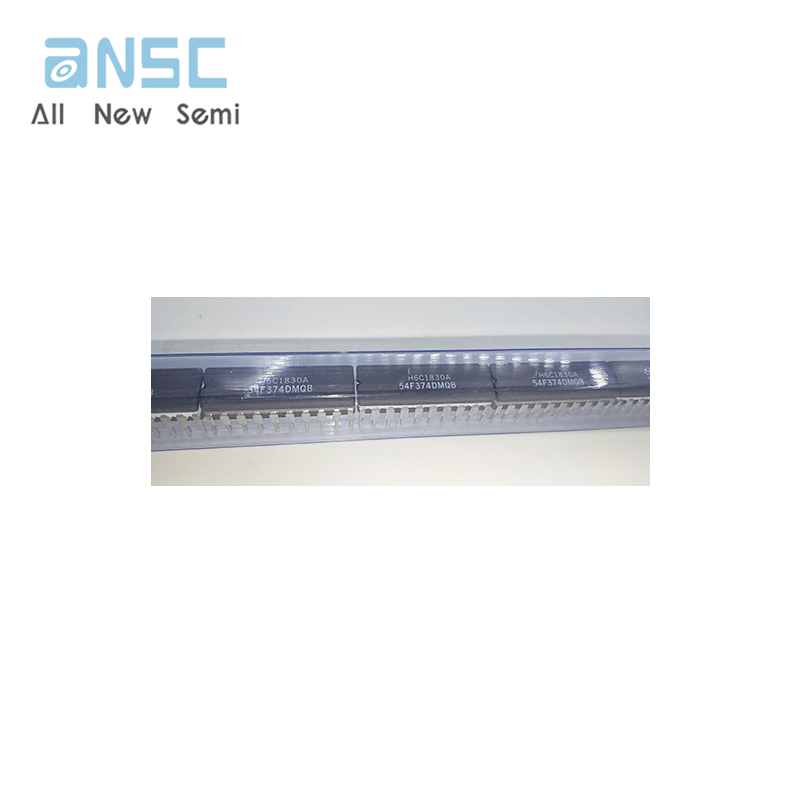

Product Photos
Product datasheet
For more information, please download
