Product Features

?High Performance 16-bit CPU with 4-Stage Pipeline

–  80/60 ns Instruction Cycle Time at 25/33 MHz CPU Clock

–  400/303 ns Multiplication (16 × 16 bits), 800/606 ns Division (32 / 16 bits)

–  Enhanced Boolean Bit Manipulation Facilities

–  Additional Instructions to Support HLL and Operating Systems

–  Register-Based Design with Multiple Variable Register Banks

–  Single-Cycle Context Switching Support

–  16 Mbytes Total Linear Address Space for Code and Data

–  1024 Bytes On-Chip Special Function Register Area

?16-Priority-Level Interrupt System with 56 Sources, Sample-Rate down to 40/30 ns

?8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities viaPeripheral Event Controller (PEC)

?Clock Generation via on-chip PLL (factors 1:1.5/2/2.5/3/4/5),via prescaler or via direct clock input

?On-Chip Memory Modules

–  2 Kbytes On-Chip Internal RAM (IRAM)

–  2 Kbytes On-Chip Extension RAM (XRAM)

–  128/32 Kbytes On-Chip Mask ROM

?On-Chip Peripheral Modules

–  16-Channel 10-bit A/D Converter with Programmable Conversion Timedown to 7.8 μs

–  Two 16-Channel Capture/Compare Units

–  4-Channel PWM Unit

–  Two Multi-Functional General Purpose Timer Units with 5 Timers

–  Two Serial Channels (Synchronous/Asynchronous andHigh-Speed-Synchronous)

–  On-Chip CAN Interface (Rev. 2.0B active) with 15 Message Objects(Full CAN / Basic CAN)

?Up to 16 Mbytes External Address Space for Code and Data

–  Programmable External Bus Characteristics for Different Address Ranges

–  Multiplexed  or  Demultiplexed  External  Address/Data  Buses  with  8-Bit  or  16-BitData Bus Width

–  Five Programmable Chip-Select Signals

–  Hold- and Hold-Acknowledge Bus Arbitration Support

?Idle and Power Down Modes

?Programmable Watchdog Timer and Oscillator Watchdog

?Up to 111 General Purpose I/O Lines,partly with Selectable Input Thresholds and Hysteresis

?Supported by a Large Range of Development Tools like C-Compilers,Macro-Assembler   Packages,   Emulators,   Evaluation   Boards,   HLL-Debuggers,Simulators, Logic Analyzer Disassemblers, Programming Boards

?On-Chip Bootstrap Loader

?144-Pin MQFP Package

?176-Pin BGA Package1)

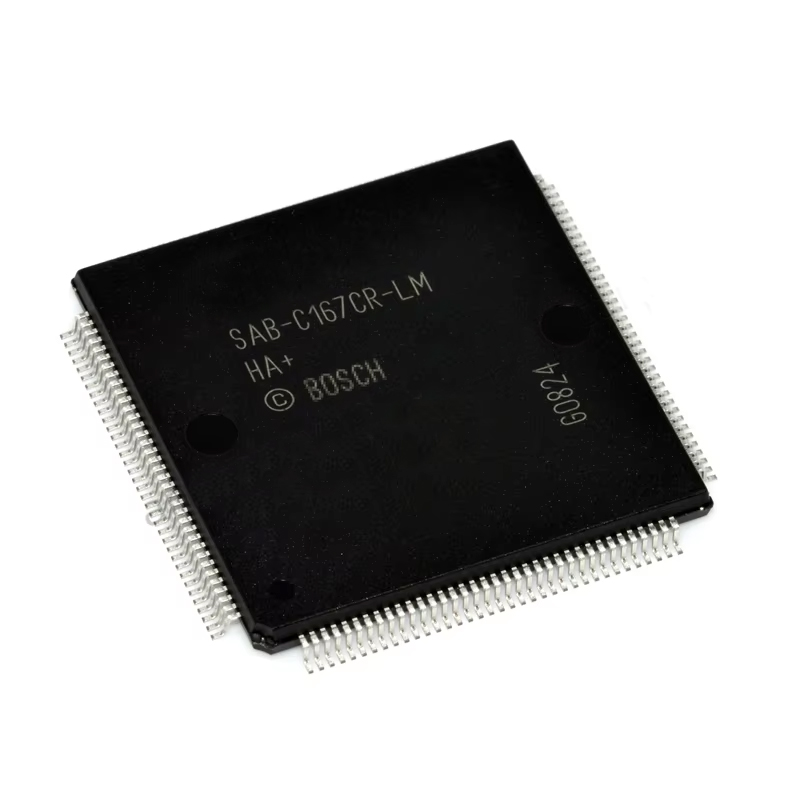

Actual product photos

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
