Product Advantages
? Screw connection technology, safe and reliable
? Meets UL1059 600 V Class C standard
? Meet the requirements of IEC 61800-5-1 for electric shock protection
? The design of the middle flange reduces the space of at least one circuit compared to other solutions
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-9EDGKS-10.16-L2-02P |
| 包裝類型 Packaging type | 盒裝 Boxed |
| 硬導線橫截面 Cross section of hard wire | 0.2~4mm2 |
| 柔性導線橫截面 Cross section of flexible wire | 0.2~4mm2 |
| 可連接導線橫截面 Cross section of connectable wires | 28~12AWG |
| 剝線長度 Strip length | 7mm |
| 額定電壓(B) Rated voltage (B) | 600V |
| 額定電流(B) Rated current (B) | 20A |
| 額定電壓 Rated voltage | 500V |
| 額定電涌電壓(III/3) Rated surge voltage (III/3) | 6KV |
| 連接方式 Connection method | 螺釘連接 Screw connection |
| 間距 Spacing | 7.62mm |
| 位數 Digit | 2 |
| 層數 Number of layers | 1 |
| 環保事項 Environmental issues | 符合 Compliant with REACH/RoHS |
| 接觸件材料 Contact material | 銅合金 Copper alloy |
| 觸點區域金屬表面 Metal surface in contact area | 鍍錫 Tin-plating |
| 絕緣材料 Insulation material | PA66 |
| 外殼顏色 Shell color | 黑 Black |
| 阻燃等級 Flame retardant grade | UL94V-0 |
| 環境溫度（運行） Environmental temperature (operating) | -40℃~105℃(取決于降額曲線Depends on the derating curve) |

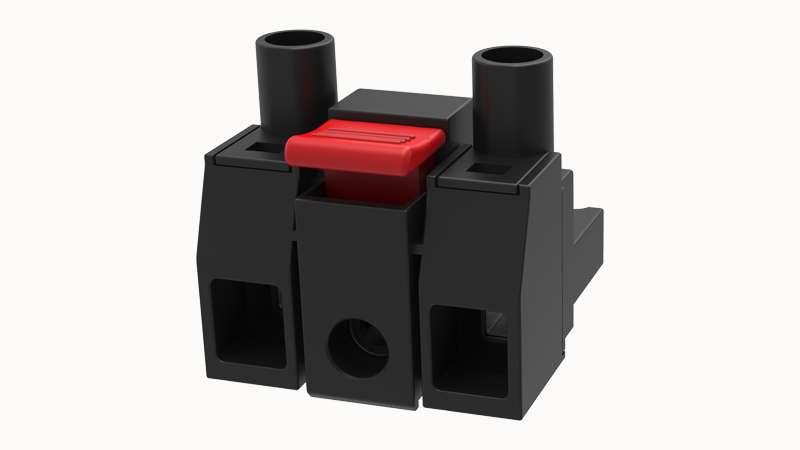

Product Show
