Product Advantages

? Double layer compact design

? PUSH-IN connection technology, fast wiring

Attribute	Attribute value

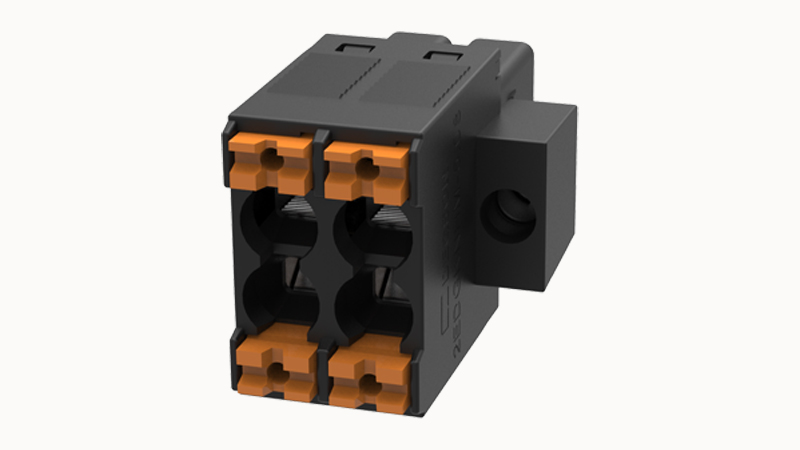

ANSM-Part#	ANSM-2EDGKNHM-5.08-04P
包裝類型 Packaging type	袋裝 In bags
硬導線橫截面 Cross section of hard wire	0.2~2.5mm2
柔性導線橫截面 Cross section of flexible wire	0.2~1.5mm2
可連接導線橫截面 Cross section of connectable wires	24~16AWG
扭矩 Torque	0.2N.m
剝線長度 Strip length	10mm
額定電壓(B) Rated voltage (B)	300V
額定電流(B) Rated current (B)	10A
額定電壓 Rated voltage	400V
額定電涌電壓(III/3) Rated surge voltage (III/3)	4KV
連接方式 Connection method	直插式彈簧連接 Direct insertion spring connection
螺釘頭驅動方式 Screw head driving method	十一字螺絲刀 Eleven character screwdriver
螺紋 Thread	M2
間距 Spacing	5.08mm
位數 Digit	4
層數 Number of layers	2
環保事項 Environmental issues	符合 Compliant with REACH/RoHS
接觸件材料 Contact material	銅合金 Copper alloy
觸點區域金屬表面 Metal surface in contact area	鍍錫 Tin-plating
絕緣材料 Insulation material	PA66
外殼顏色 Shell color	黑 Black
絕緣材料組 Insulation material group	Ⅰ
阻燃等級 Flame retardant grade	UL94V-0
環境溫度（運行） Environmental temperature (operating)	-40℃~105℃(取決于降額曲線Depends on the derating curve)

2EDGKNHM-5.08-04P-1Y-00A(H)

詳情8.1

詳情頁3.1

詳情5.1

詳情6.1

詳情9

We also provide ：
