Product Advantages

? Universal installation method that can be used globally

? Compatible with multiple types of sockets, the device design is highly flexible

? Compared to standard products, the performance has been fully upgraded and the quality is more stable

? Structural optimization design, capable of withstanding higher voltage shocks

Attribute	Attribute value

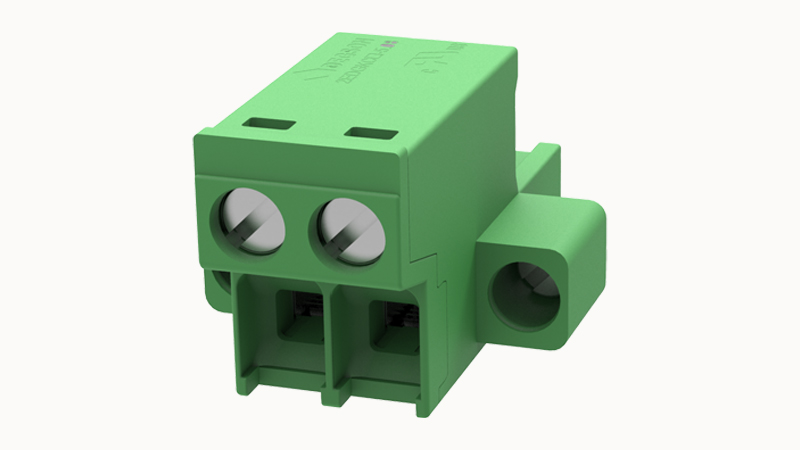

ANSM-Part#	ANSM-2EDGKCM-5.08-HP-02P
包裝類型 Packaging type	盒裝 Boxed
硬導線橫截面 Cross section of hard wire	0.2~2.5mm2
柔性導線橫截面 Cross section of flexible wire	0.2~2.5mm2
塞規a x b／直徑 Plug gauge a x b/diameter	2.8mm x2.0mm/2.4mm
可連接導線橫截面 Cross section of connectable wires	28~12AWG
扭矩 Torque	0.5N.m
剝線長度 Strip length	10mm
額定電壓(B) Rated voltage (B)	300V
額定電流(B) Rated current (B)	15A
額定電壓 Rated voltage	800V
額定電涌電壓(III/3) Rated surge voltage (III/3)	6KV
連接方向 Connection direction	0°
連接方式 Connection method	螺釘連接 Screw connection
螺釘頭驅動方式 Screw head driving method	一字螺絲刀 A screwdriver
螺紋 Thread	M2.5
間距 Spacing	5.08mm
位數 Digit	2
層數 Number of layers	1
環保事項 Environmental issues	符合 Compliant with REACH/RoHS
接觸件材料 Contact material	銅合金 Copper alloy
接線點金屬表面 Connection point metal surface	鍍錫 Tin-plating
觸點區域金屬表面 Metal surface in contact area	鍍錫 Tin-plating
絕緣材料 Insulation material	PA66
外殼顏色 Shell color	綠 Green
絕緣材料組 Insulation material group	Ⅰ
阻燃等級 Flame retardant grade	UL94V-0

2EDGKCM-5.08-HP-02P-14-00Z(H)
