Product Advantages

? Compatible with 4U chassis, meeting IP20 protection level

? High density integrated design, meeting signal transmission requirements, compatible with 4T panel installation

? The plug is designed to facilitate easy removal and insertion

? Meets the professional requirements of State Grid Corporation of China, with independent patents

? Direct insertion wiring improves wiring efficiency

? The maximum wire diameter of a single wiring hole can reach 1.5mm 2

Attribute	Attribute value

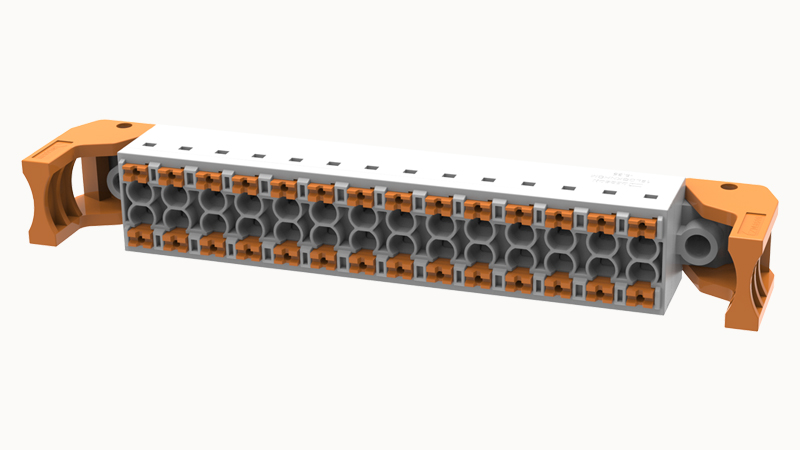

ANSM-Part#	ANSM-15EDGKNHGM-6.35-28P
包裝類型 Packaging type	盒裝 Boxed
防護等級 Protection grade	IP20
硬導線橫截面 Cross section of hard wire	0.5~1.5mm2
柔性導線橫截面 Cross section of flexible wire	0.5~1.5mm2
可連接導線橫截面 Cross section of connectable wires	20~16AWG
剝線長度 Strip length	12mm
額定電壓(B) Rated voltage (B)	300V
額定電壓 Rated voltage	400V
額定電流 Rated voltage	6A
額定電壓(III/3) Rated voltage (III/3)	320V
額定電涌電壓(III/3) Rated surge voltage (III/3)	4KV
連接方向 Connection direction	0°
連接方式 Connection method	直插式彈簧連接 Direct insertion spring connection
是否插拔 Whether to plug or unplug	是 Yes
間距 Spacing	6.35mm
位數 Digit	28
層數 Number of layers	2
環保事項 Environmental issues	符合 Compliant with REACH/RoHS
接觸件材料 Contact material	銅合金 Copper alloy
接線點金屬表面 Connection point metal surface	鍍錫 Tin-plating
觸點區域金屬表面 Metal surface in contact area	鍍錫 Tin-plating
絕緣材料 Insulation material	PA66
外殼顏色 Shell color	灰 Grey
絕緣材料組 Insulation material group	Ⅰ
阻燃等級 Flame retardant grade	UL94V-0
環境溫度（運行） Environmental temperature (operating)	-40℃~105℃(取決于降額曲線 depending on the derating curve)

15EDGKNHGM-6.35-28P-1Y-00Z(H)
