Product Advantages
? Using PUSH-IN connection technology, fast wiring can be achieved
? Equipped with a rotating card lock, easy to operate and high space utilization rate
? Can adapt to high current transmission of 50A
? Built in stainless steel clip enhances the stability of temperature rise
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-5EDGKDG-7.62-02P |
| 額定電流(B) Rated current (B) | 35A |
| 包裝類型 Packaging type | 盒裝 Boxed |
| 硬導線橫截面 Cross section of hard wire | 0.2~10mm2 |
| 柔性導線橫截面 Cross section of flexible wire | 0.2~10mm2 |
| 可連接導線橫截面 Cross section of connectable wires | 24~8AWG |
| 剝線長度 Strip length | 14mm |
| 額定電壓(B) Rated voltage (B) | 600V |
| 額定電壓 Rated voltage | 1000V |
| 額定電流 Rated voltage | 41A |
| 額定電壓(III/3) Rated voltage (III/3) | 1000V |
| 額定電涌電壓(III/3) Rated surge voltage (III/3) | 8KV |
| 連接方式 Connection method | 直插式彈簧連接 Direct insertion spring connection |
| 是否插拔 Whether to plug or unplug | 是 Yes |
| 間距 Spacing | 7.62mm |
| 位數 Digit | 2 |
| 層數 Number of layers | 1 |
| 接觸件材料 Contact material | 銅 Copper |
| 接線點金屬表面 Connection point metal surface | 鍍錫 Tin-plating |
| 絕緣材料 Insulation material | PA66 |
| 外殼顏色 Shell color | 綠 Green |
| 絕緣材料組 Insulation material group | Ⅰ |
| 阻燃等級 Flame retardant grade | UL94V-0 |
| 環境溫度（運行） Environmental temperature (operating) | -40℃~105℃(取決于降額曲線Depends on the derating curve) |

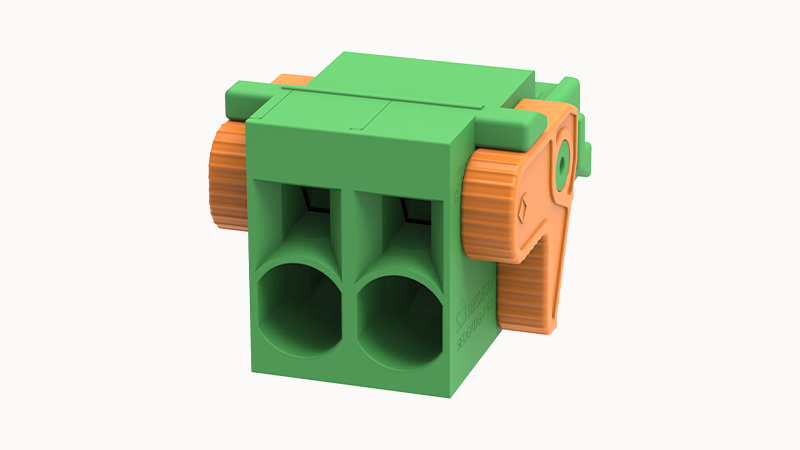

Product Show
