Product Advantages
? Push In direct insertion, spring connection is more resistant to vibration
? Special structure coding, wiring guidance identification
? 1 bit 2 holes, realizing circuit diversion
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DGBSC-PG03F/4-03P |
| 額定電流(B) Rated current (B) | 23A |
| 包裝類型 Packaging type | 盒裝 Boxed |
| 硬導線橫截面 Cross section of hard wire | 0.5~4mm2 |
| 可連接導線橫截面 Cross section of connectable wires | 20~12AWG |
| 剝線長度 Strip length | 10mm |
| 額定電壓(B) Rated voltage (B) | 600V |
| 額定電壓 Rated voltage | 250V |
| 額定電流 Rated voltage | 25A |
| 額定電壓(III/3) Rated voltage (III/3) | 250V |
| 額定電涌電壓(III/3) Rated surge voltage (III/3) | 4KV |
| 連接方式 Connection method | 直插式彈簧連接 Direct insertion spring connection |
| 是否插拔 Whether to plug or unplug | 是 Yes |
| 間距 Spacing | 10mm |
| 位數 Digit | 3 |
| 層數 Number of layers | 1 |
| 環保事項 Environmental issues | 符合REACH/RoHS |
| 接觸件材料 Contact material | 銅 Copper |
| 接線點金屬表面 Connection point metal surface | 鍍錫 Tin-plating |
| 絕緣材料 Insulation material | PA66 |
| 外殼顏色 Shell color | 黑 Black |
| 絕緣材料組 Insulation material group | Ⅰ |
| 阻燃等級 Flame retardant grade | UL94V-0 |
| 環境溫度（運行） Environmental temperature (operating) | -40℃~105℃(取決于降額曲線Depends on the derating curve) |

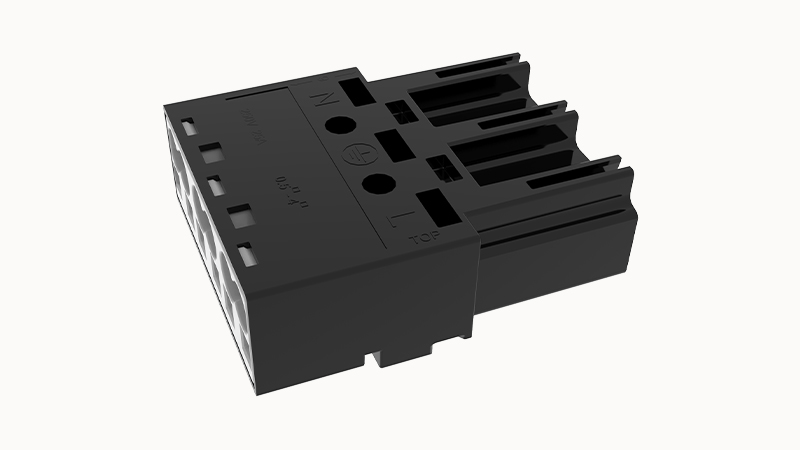

Product Show
