Product Descriptions
The TL074, TL074A and TL074B are high speed J–FET input quad operational amplifiers incorporating well matched, high voltage J–FET and bipolar transistors in a monolithic integrated circuit.
The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.
Product Features
■ WIDE COMMON-MODE (UP TO VCC+) AND DIFFERENTIAL VOLTAGE RANGE
■ LOW INPUT BIAS AND OFFSET CURRENT
■ LOW NOISE en = 15nV/√Hz (typ)
■ OUTPUT SHORT-CIRCUIT PROTECTION
■ HIGH INPUT IMPEDANCE J–FET INPUT STAGE
■ LOW HARMONIC DISTORTION : 0.01 PERCENT (typ)
■ INTERNAL FREQUENCY COMPENSATION
■ LATCH UP FREE OPERATION
■ HIGH SLEW RATE : 13V/μs (typ)
Specifications
| Attribute | Attribute value |
| Model | ANSC-M2502252462 |
| Product Model | TL074CN |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | STMicroelectronics |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Amplifier Type | J-FET |
| Number of Circuits | 4 |
| Output Type | - |
| Slew Rate | 13V/μs |
| Gain Bandwidth Product | 3 MHz |
| Current - Input Bias | 30 pA |
| Voltage - Input Offset | 3 mV |
| Current - Supply | 1.4mA (x4 Channels) |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 6 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-DIP |
| Base Product Number | TL074 |

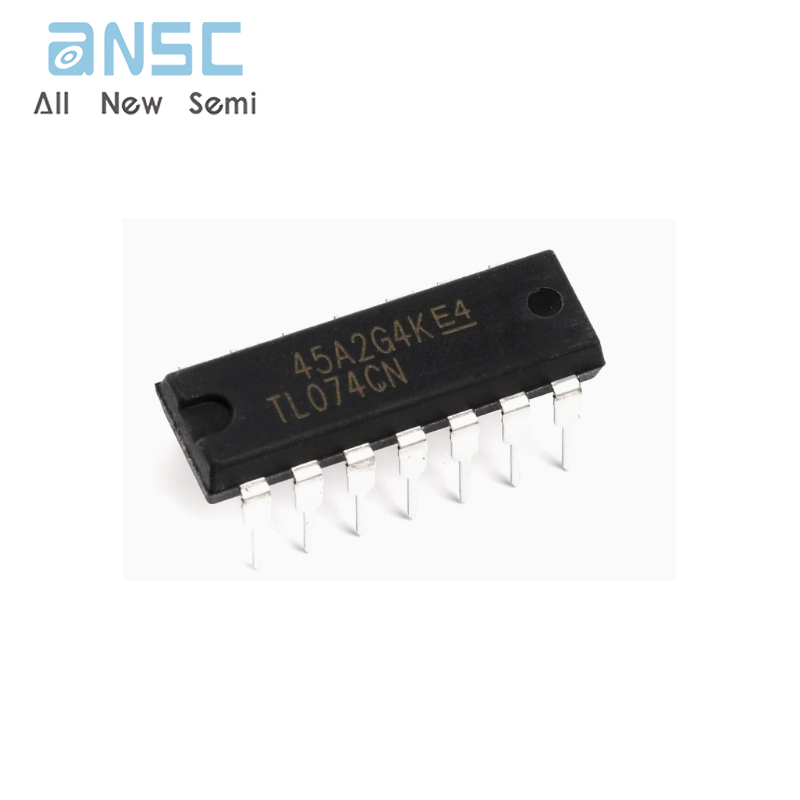

Actual product photos
