Product Descriptions
TOPSwitch?-JX cost effectively incorporates a 725 V power MOSFET, high-voltage switched current source, multi-mode PWM control, oscillator, thermal shutdown circuit, fault protection and other control circuitry onto a monolithic device.
Product Features
EcoSmart – Energy Efficient
? Ideal for applications from 10 W to 245 W
? Energy efficient over entire load range
? No-load consumption below 100 mW at 265 VAC
? Up to 750 mW standby output power for 1 W input at 230 VAC
High Design Flexibility for Low System Cost
? Multi-mode PWM control maximizes efficiency at all loads
? 132 kHz operation reduces transformer and power supply size
? 66 kHz option for highest efficiency requirements
? Accurate programmable current limit
? Optimized line feed-forward for line ripple rejection
? Frequency jittering reduces EMI filter cost
? Fully integrated soft-start for minimum start-up stress
? 725 V rated MOSFET
? Simplifies meeting design derating requirements
Extensive Protection Features
? Auto-restart limits power delivery to <3% during overload faults
? Output short-circuit protection (SCP)
? Output over-current protection (OCP)
? Output overload protection (OPP)
? Output overvoltage protection (OVP)
? User programmable for hysteretic/latching shutdown
? Simple fast AC reset
? Primary or secondary sensed
? Line undervoltage (UV) detection prevents turn-off glitches
? Line overvoltage (OV) shutdown extends line surge withstand
? Accurate thermal shutdown with large hysteresis (OTP)
Advanced Package Options
? eDIP?-12 package:
? 43 W / 117 W universal input power output capability with PCB / metal heat sink
? Low profile horizontal orientation for ultra-slim designs
? Heat transfer to both PCB and heat sink
? Optional external heat sink provides thermal impedance equivalent to a TO-220
? eSIP?-7C package:
? 177 W universal input output power capability
? Vertical orientation for minimum PCB footprint
? Simple heat sink mounting using clip provides thermal impedance equivalent to a TO-220
? eSOP?-12 package:
? 66 W universal input output power capability
? Low profile surface mounted for ultra-slim designs
? Heat transfer to PCB via exposed pad and SOURCE pins
? Supports wave or reflow soldering
? Extended creepage to DRAIN pin
? Heat sink is connected to SOURCE for low EMI
Product Applications
? Notebook or laptop adapter
? Generic adapter
? Printer
? LCD monitor
? Set-top box
? PC or LCD TV standby
? Audio amplifier
Specifications
| Attribute | Attribute value |
| Model | ANSC-M2502242443 |
| Product Model | TOP264VG |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| AC DC Converters, Offline Switchers | |
| Manufacturer | Power Integrations |
| Series | TOPSwitch?-JX |
| Packaging | Tube |
| Part Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 0.78 |
| Frequency - Switching | 66kHz, 132kHz |
| Power (Watts) | 34 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 12-SDIP (0.412", 10.46mm), 11 Leads, Exposed Pad |
| Supplier Device Package | eDIP-12 |
| Mounting Type | Through Hole |
| Base Product Number | TOP264 |

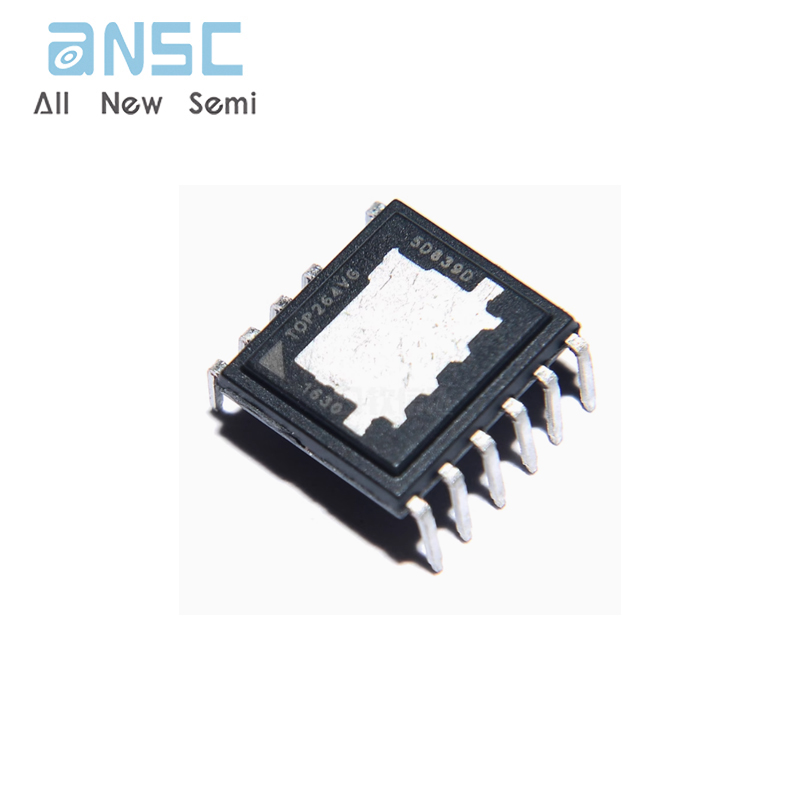

Actual product photos
