Product Descriptions
The Zynq?-7000 family is based on the Xilinx SoC architecture. These products integrate a feature-rich dual-core or single-core ARM? Cortex?-A9 based processing system (PS) and 28 nm Xilinx programmable logic (PL) in a single device. The ARM Cortex-A9 CPUs are the heart of the PS and also include on-chip memory, external memory interfaces, and a rich set of peripheral connectivity interfaces.
Product Features
Application Processor Unit (APU)
? 2.5 DMIPS/MHz per CPU
? CPU frequency: Up to 1 GHz
? Coherent multiprocessor support
? ARMv7-A architecture
? TrustZone? security
? Thumb?-2 instruction set
? Jazelle? RCT execution Environment Architecture
? NEON? media-processing engine
? Single and double precision Vector Floating Point Unit (VFPU)
? CoreSight? and Program Trace Macrocell (PTM)
? Timer and Interrupts
? Three watchdog timers
? One global timer
? Two triple-timer counters
Caches
? 32 KB Level 1 4-way set-associative instruction and data caches (independent for each CPU)
? 512 KB 8-way set-associative Level 2 cache (shared between the CPUs)
? Byte-parity support
On-Chip Memory
? On-chip boot ROM
? 256 KB on-chip RAM (OCM)
? Byte-parity support
External Memory Interfaces
? Multiprotocol dynamic memory controller
? 16-bit or 32-bit interfaces to DDR3, DDR3L, DDR2, or LPDDR2 memories
? ECC support in 16-bit mode
? 1GB of address space using single rank of 8-, 16-, or 32-bit-wide memories
? Static memory interfaces
? 8-bit SRAM data bus with up to 64 MB support
? Parallel NOR flash support
? ONFI1.0 NAND flash support (1-bit ECC)
? 1-bit SPI, 2-bit SPI, 4-bit SPI (quad-SPI), or two quad-SPI (8-bit) serial NOR flash
8-Channel DMA Controller
? Memory-to-memory, memory-to-peripheral, peripheral-to-memory,
and scatter-gather transaction support
Specifications
| Attribute | Attribute value |
| Model | ANSC-M2502212396 |
| Product Model | XC7Z020-2CLG484I |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| System On Chip (SoC) | |
| Manufacturer | AMD |
| Series | Zynq?-7000 |
| Packaging | Tray |
| Part Status | Active |
| Architecture | MCU, FPGA |
| Core Processor | Dual ARM? Cortex?-A9 MPCore? with CoreSight? |
| Flash Size | - |
| RAM Size | 256KB |
| Peripherals | DMA |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
| Speed | 766MHz |
| Primary Attributes | Artix?-7 FPGA, 85K Logic Cells |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Package / Case | 484-LFBGA, CSPBGA |
| Supplier Device Package | 484-CSPBGA (19x19) |
| Number of I/O | 130 |
| Base Product Number | XC7Z020 |

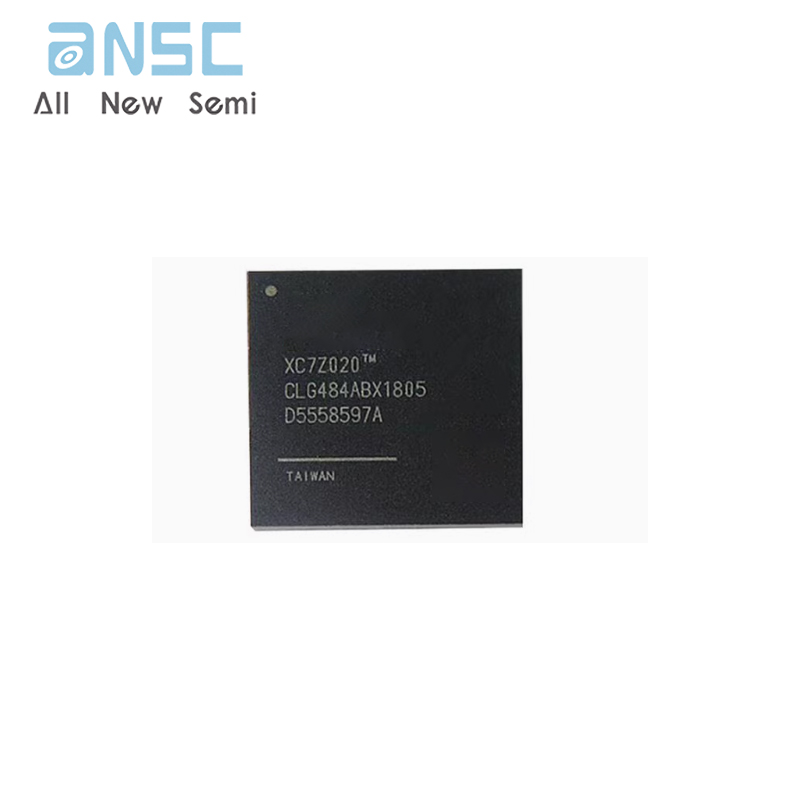

Actual product photos
