Product details
General Description
The MIC5207 is an efficient linear voltage regulator with ultra-low-noise output, very low dropout voltage (typically 17mV at light loads and 165mV at 150mA), and very low ground current (720μA at 100mA output). The MIC5207 offers better than 3% initial accuracy.
Designed especially for hand-held, battery-powered devices, the MIC5207 includes a CMOS or TTL compatible enable/shutdown control input. When in shutdown, power consumption drops nearly to zero.
Key MIC5207 features include a reference bypass pin to improve its already low-noise performance, reversed battery protection, current limiting, and overtemperature shutdown.
Features
? Ultra-low-noise output
? High output voltage accuracy
? Guaranteed 180mA output
? Low quiescent current
? Low dropout voltage
? Extremely tight load and line regulation
? Very low temperature coefficient
? Current and thermal limiting
? Reversed-battery protection
? “Zero” off-mode current
? Logic-controlled electronic enable
Applications
? Cellular telephones
? Laptop, notebook, and palmtop computers
? Battery-powered equipment
? PCMCIA VCC and VPP regulation/switching
? Consumer/personal electronics
? SMPS post-regulator/dc-to-dc modules
? High-efficiency linear power supplies
Product Description
|
Type |
Description |
|---|---|
|
Category |
Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators |
|
Mfr |
Microchip Technology |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Output Configuration |
Positive |
|
Output Type |
Fixed |
|
Number of Regulators |
1 |
|
Voltage - Input (Max) |
16V |
|
Voltage - Output (Min/Fixed) |
2.5V |
|
Voltage - Output (Max) |
- |
|
Voltage Dropout (Max) |
0.4V @ 150mA |
|
Current - Output |
180mA |
|
Current - Quiescent (Iq) |
170 μA |
|
Current - Supply (Max) |
3 μA |
|
PSRR |
- |
|
Control Features |
Enable |
|
Protection Features |
Over Current, Over Temperature, Reverse Polarity |
|
Operating Temperature |
-40°C ~ 125°C |
|
Mounting Type |
Surface Mount |
|
Package / Case |
SC-74A, SOT-753 |
|
Supplier Device Package |
SOT-23-5 |
|
Base Product Number |
MIC5207 |

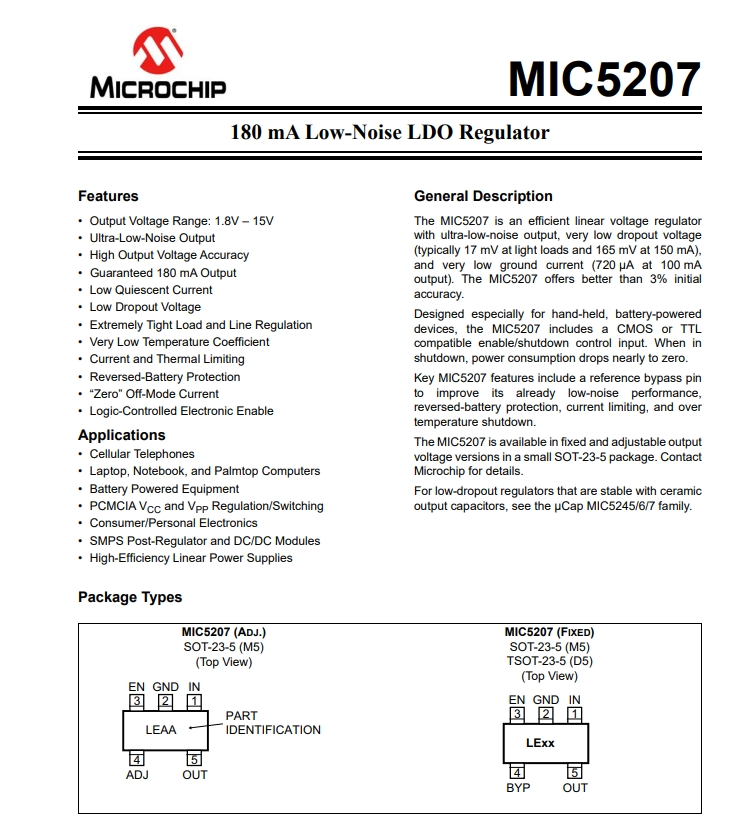

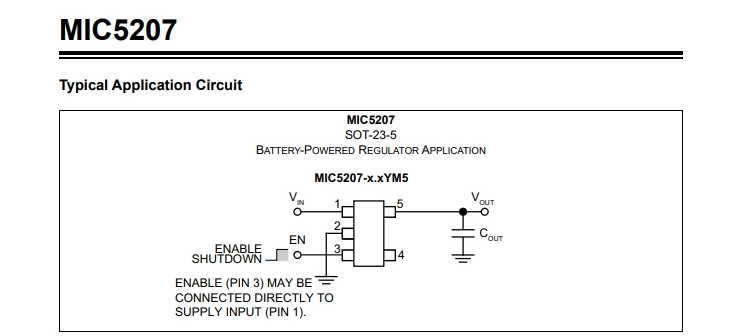

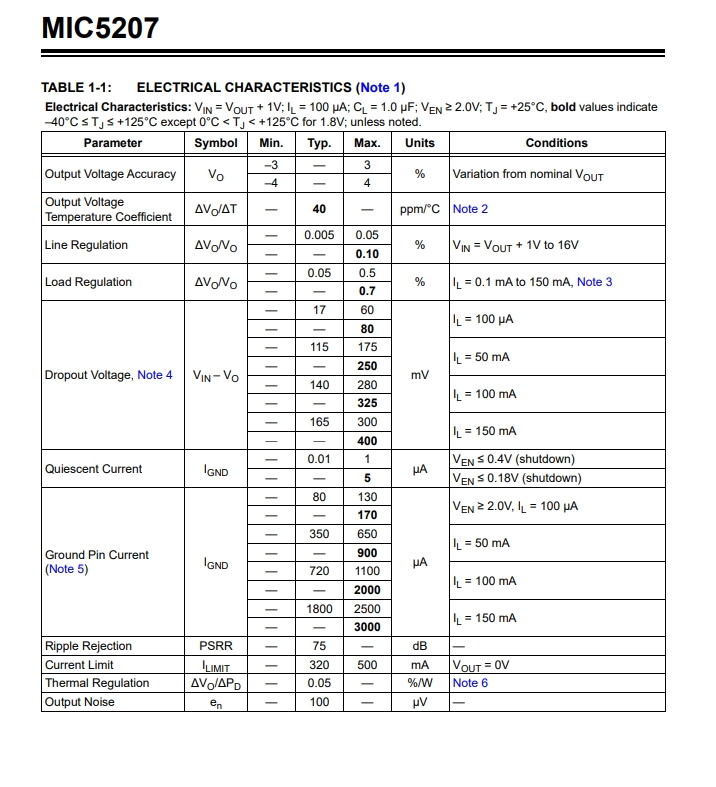

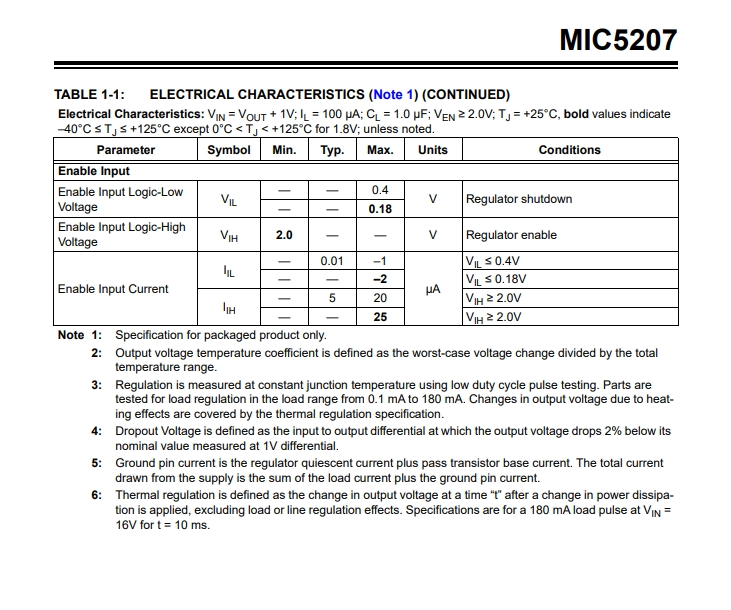

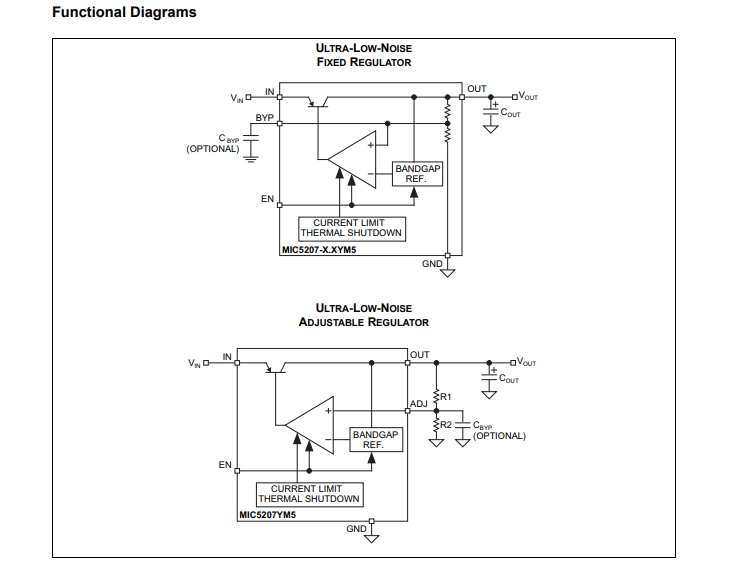

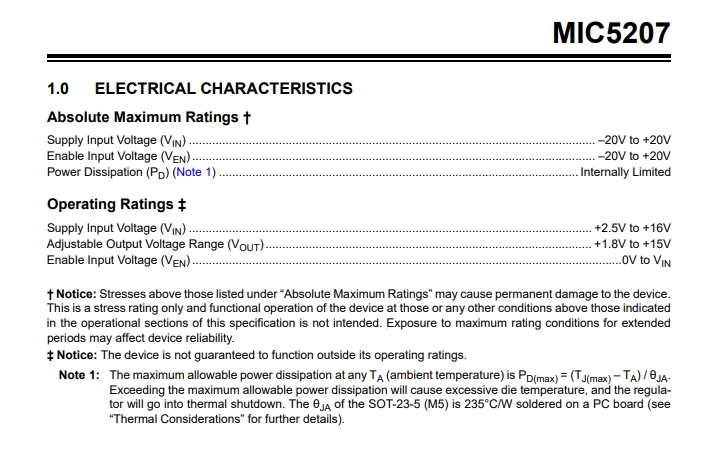

Product images
Product datasheet
For more information, please download
