Product Parameters
IC model: STM32F411CEU6
IC storage: 512KBYTES FLASH, 128KBYTES SRAM
External crystal oscillator: 25MHz high-speed crystal oscillator+32.768KHZ low-speed crystal oscillator
Back FLASH pad: Users can solder and install FLASH themselves as needed (recommended W25032JVSSIQ)
Ready made communication interface: TYPE-CUSB、SWD、USART(A9:TXA10:RX)
Board size: 21MM * 53MM
Product Descriptions

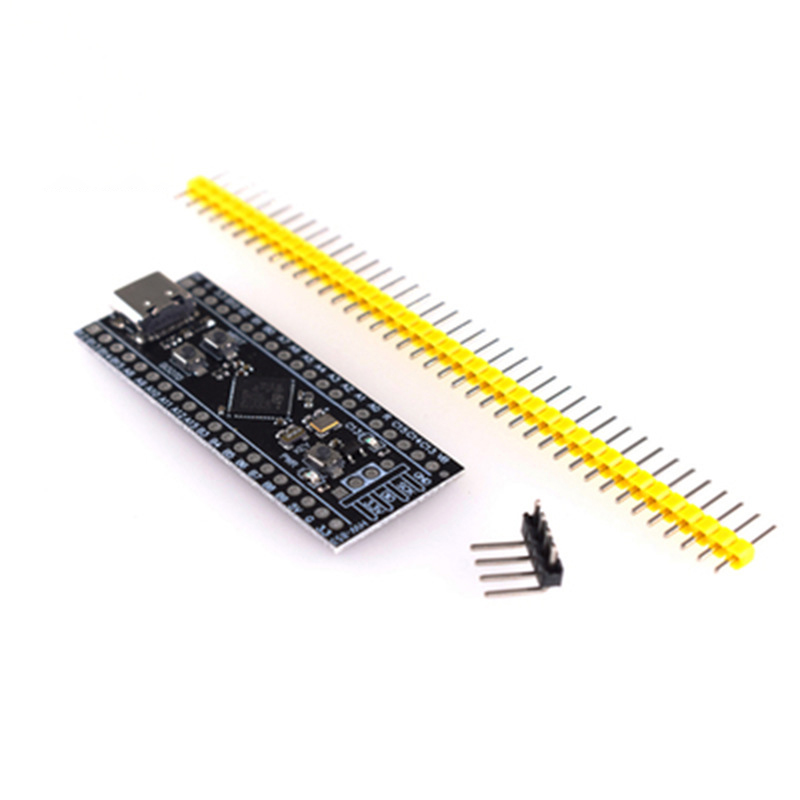

This is an STM32F411CEU6 core development board with an ARM core Cortex@-M4 It is rich in resources and backed by powerful resources provided by STMicroelectronics, making it a good choice for both learning and secondary development.
Product Functions

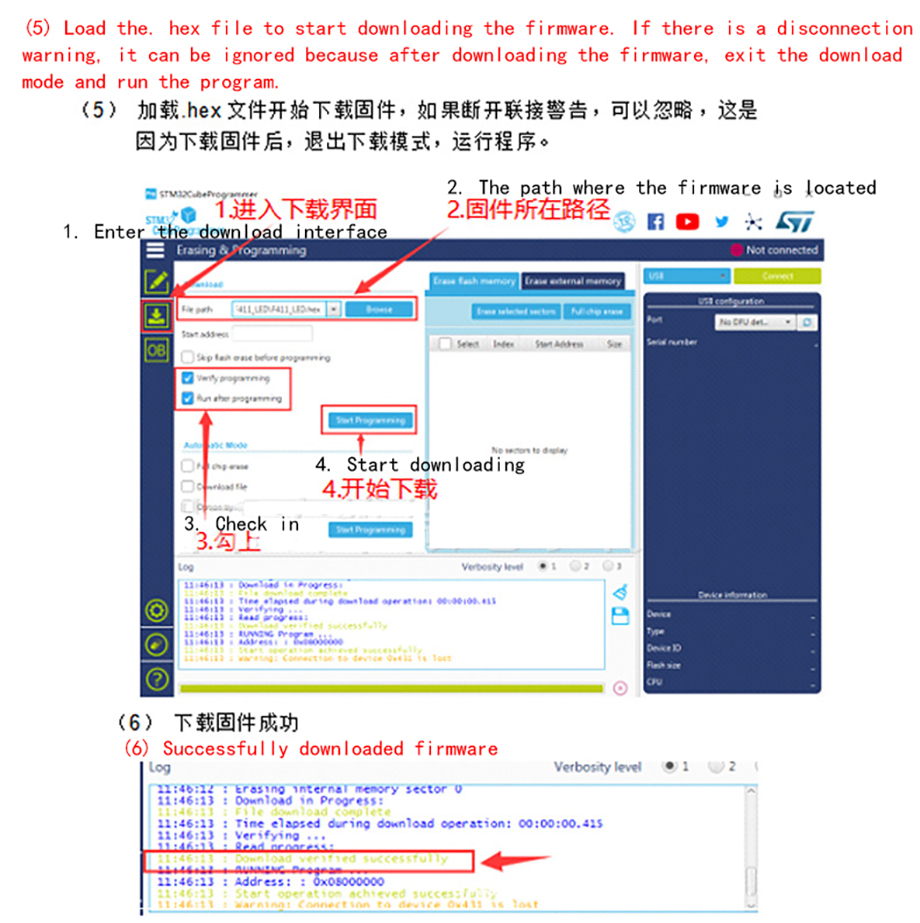

1. Download firmware
1.1 Port: The module can download firmware to fash using USB/USART (A9: TX A10: RX)/SWD interface. For other download methods, you need to check the ST official website.
1.2 Hardware: Type USB2 data cable/USB to serial module/ST-LINK

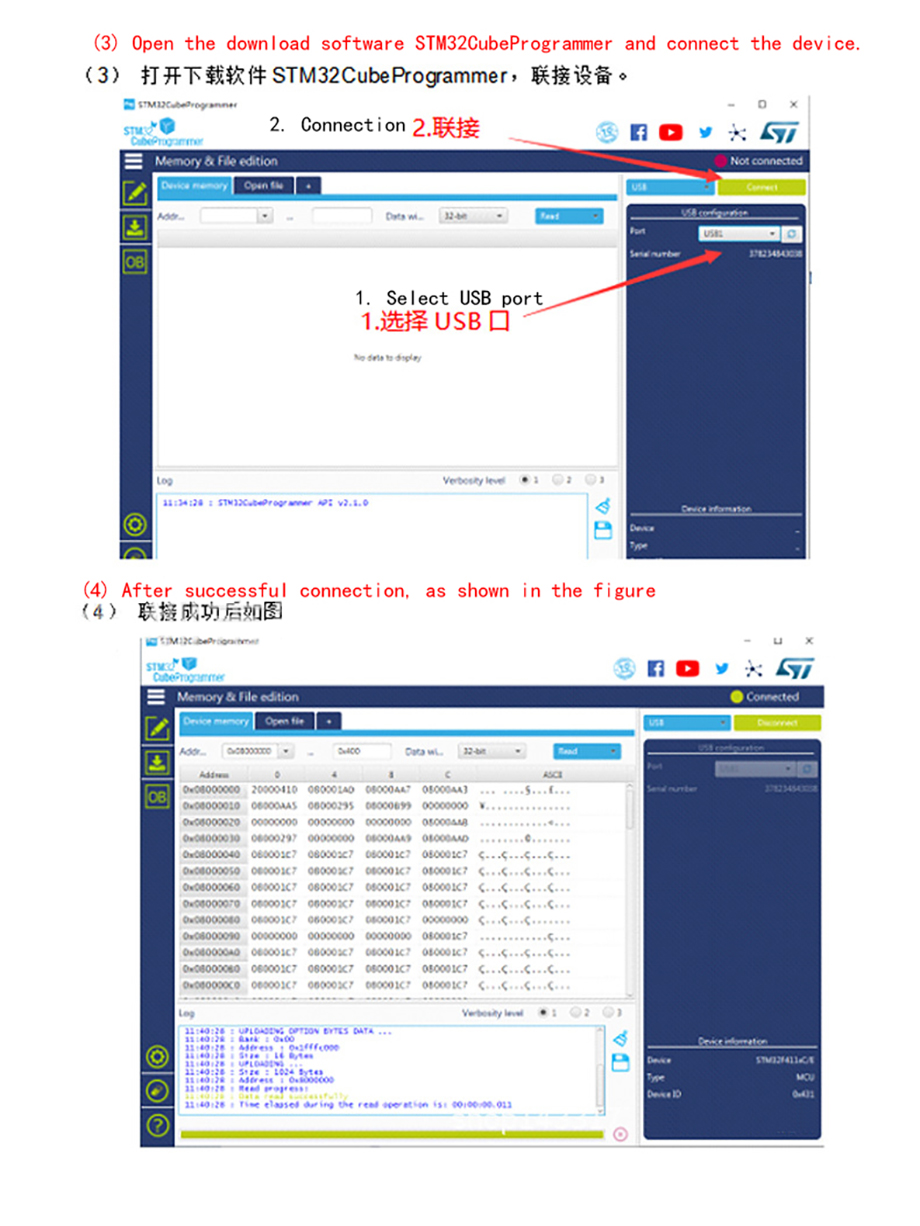

1.3 Software: STM32CubeProgrammer (Download the software from the ST official website)

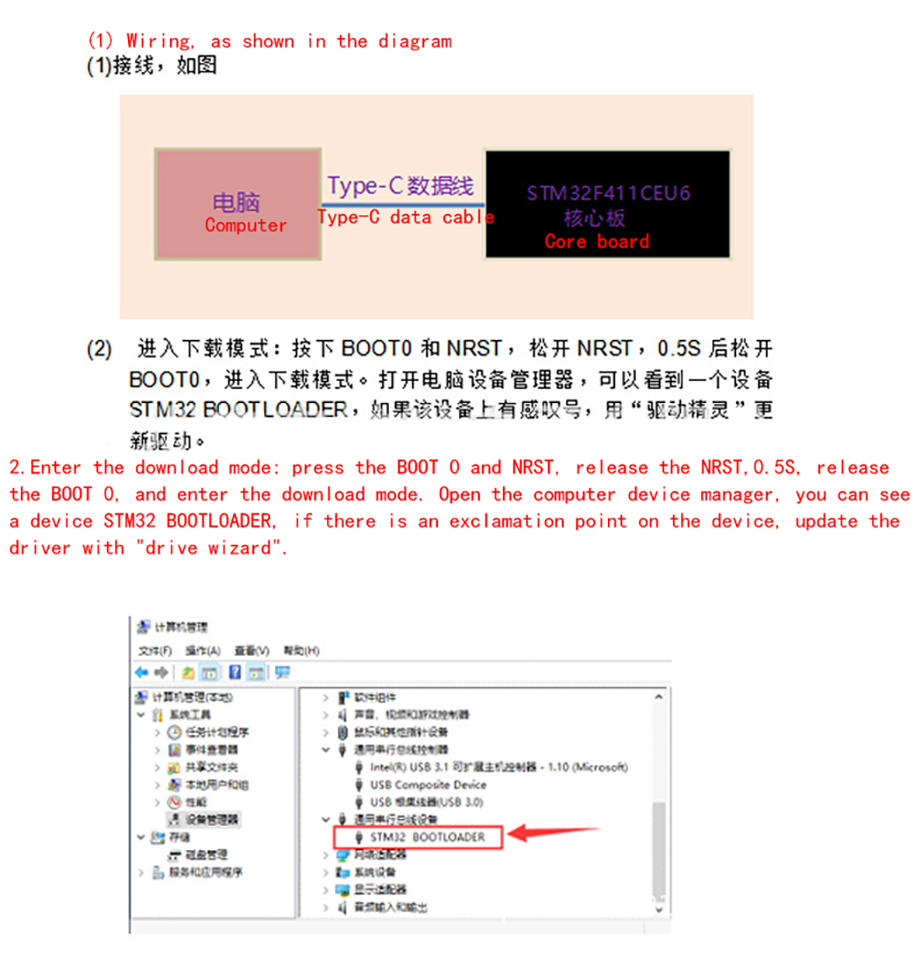

1.4 Download firmware method. Taking USB download as an example:

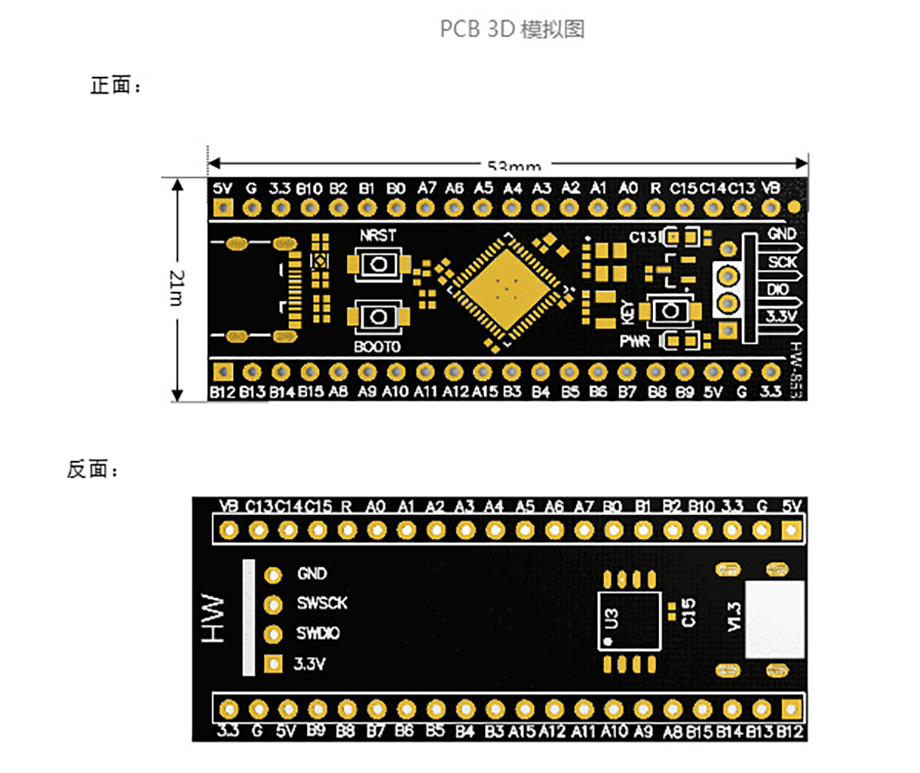

Product Size

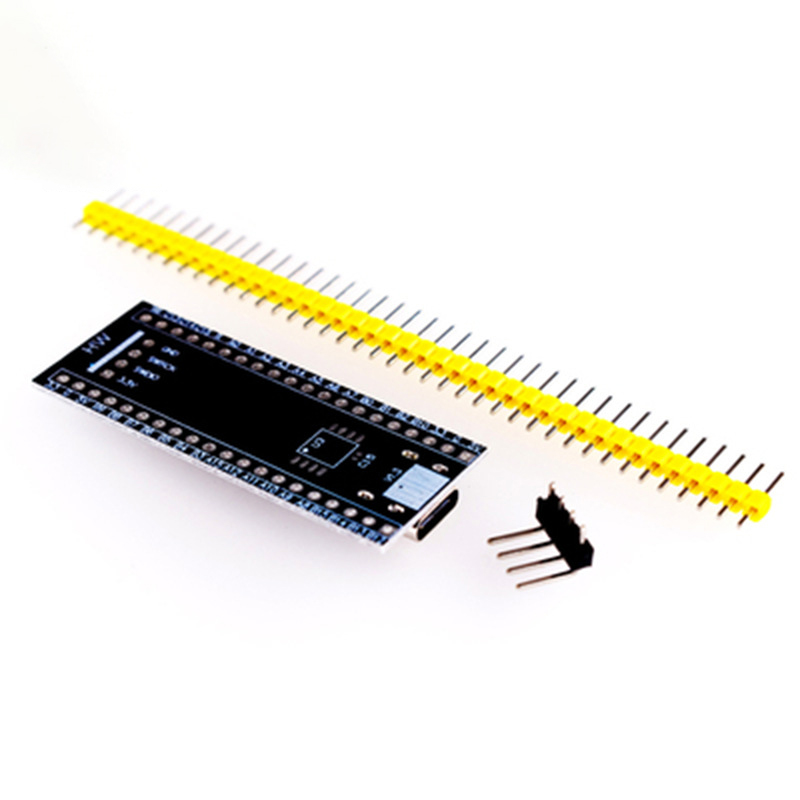

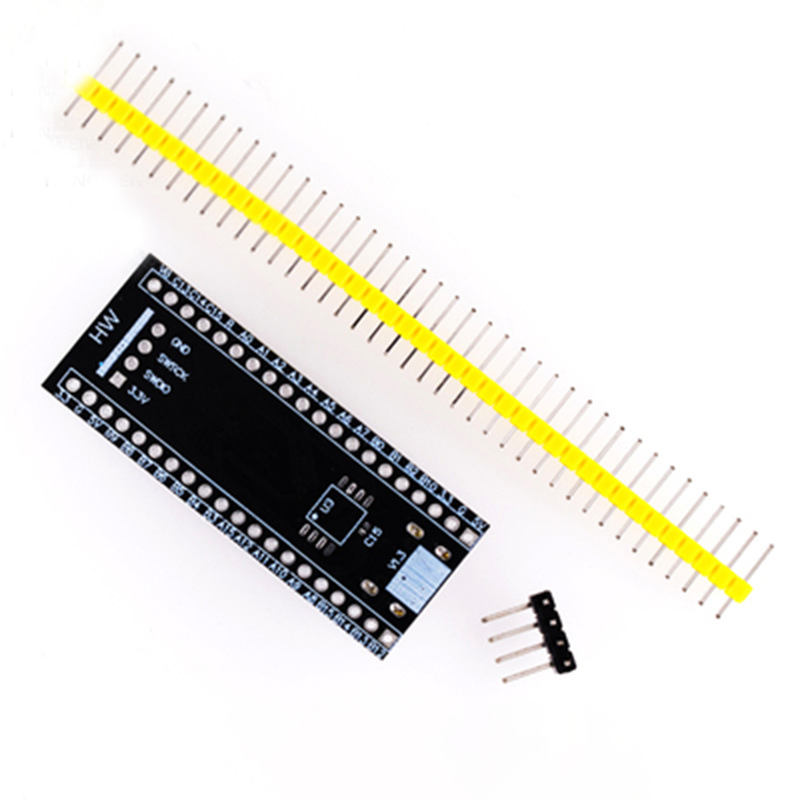

Product Show
