Module features

Jogging type: Initial state is low level, touch is high level, no touch is low level (similar to the function of lightly touching a button)

low power consumption

The power supply can be 2~5.5V DC

Both the front and back sides can serve as touch surfaces, replacing traditional touch buttons

4 M2 screw positioning holes for easy installation

Action note: First, lightly touch the touch sensor, and then press and hold the touch sensor for a longer time to achieve flashing and long-lasting illumination of the desk lamp;

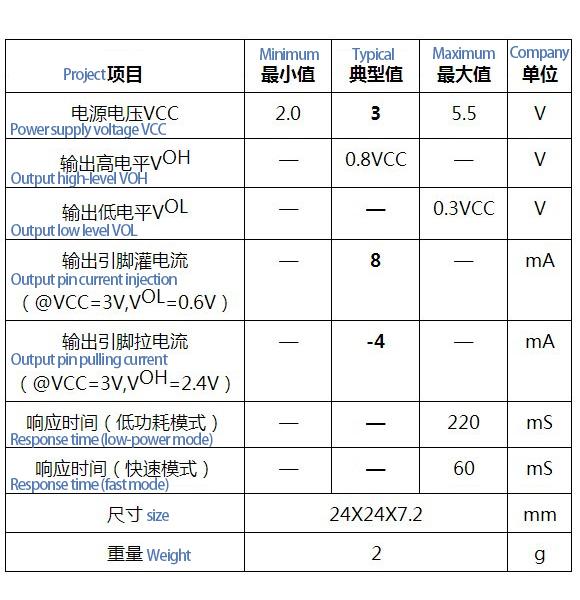

Product parameters

Control interface: There are a total of 3 pins (GND, VCC, SIG), GND is ground, VCC is power supply, SIG is digital signal output pin;

Power indicator light: green LED, lights up when powered on correctly;

Touch area: The internal area of an icon similar to a fingerprint, which can be triggered by lightly touching with a finger.

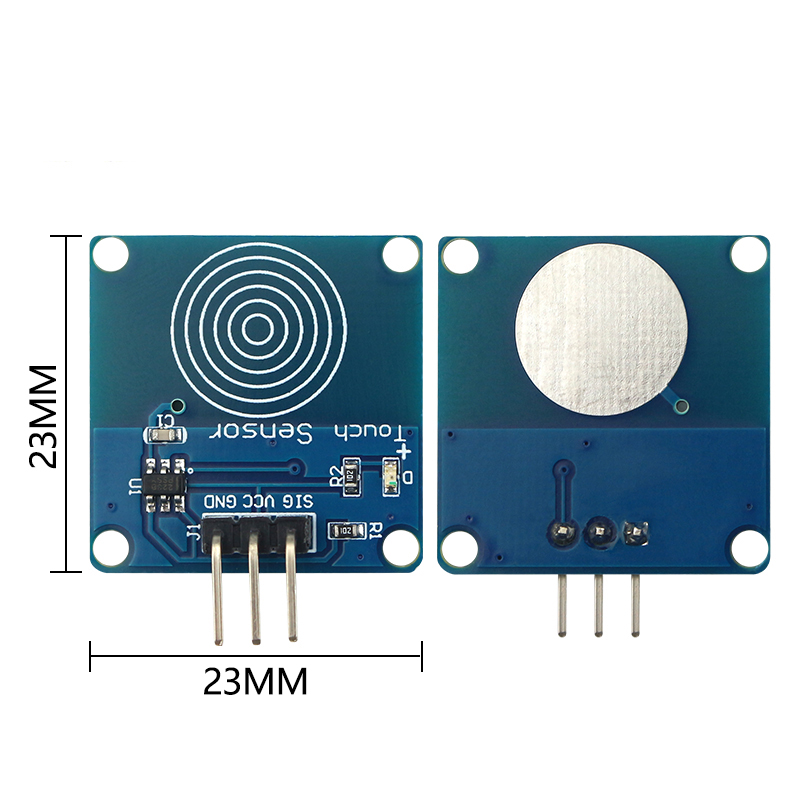

Positioning holes: 4 M2 screw positioning holes with a diameter of 2.2mm, making it easy to install and position the module, and achieving combination between modules;

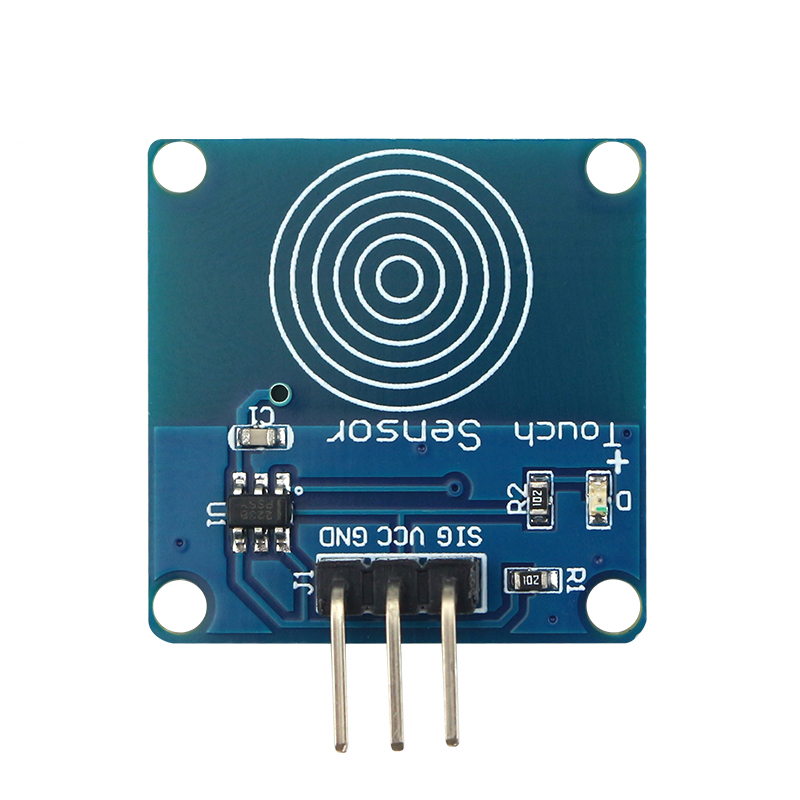

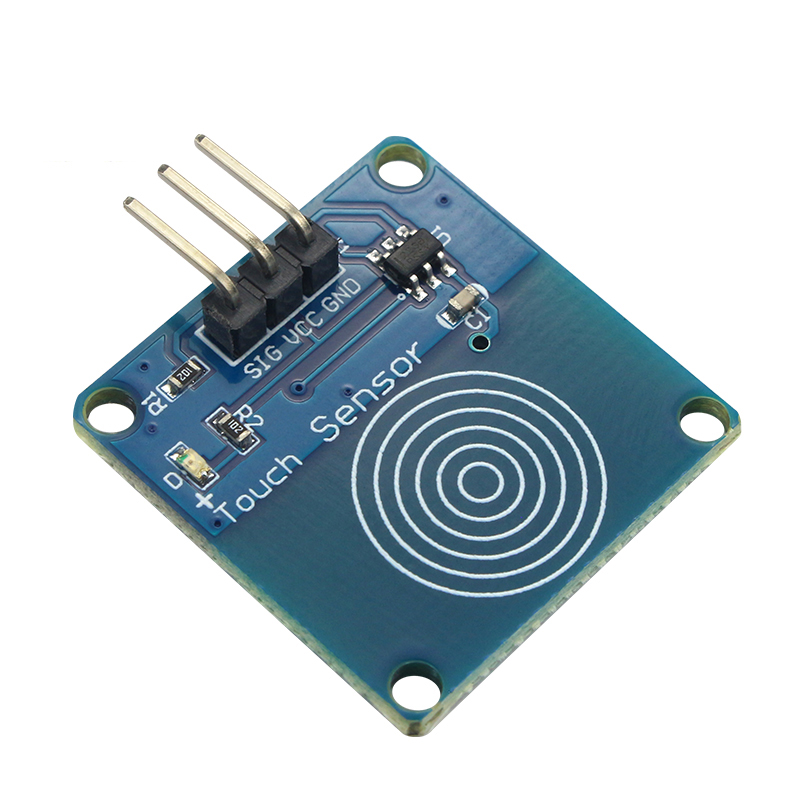

Product Photograph

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
