Product Descriptions

1. Current sensor chip: ACS712ELC-20A；

2. Pin 5V power supply, onboard power indicator light;

3. The module can measure positive and negative 5A currents, corresponding to an analog output of 100mV/A;

4. When no current is detected passing through, the output voltage is VCC/2;

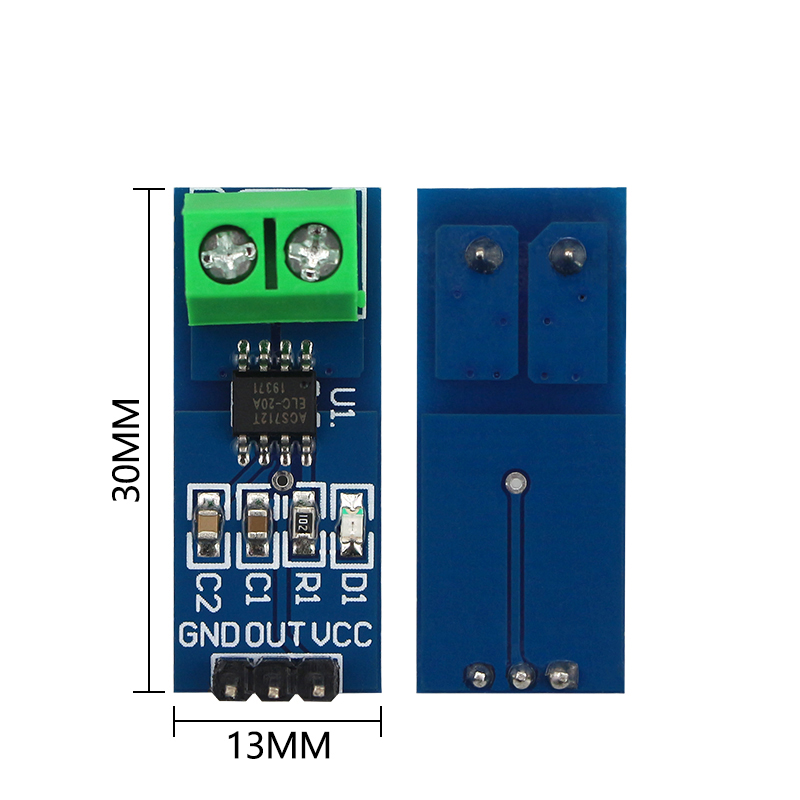

5. PCB board size: 31 (mm) x 13 (mm);

Note: ACS712 is based on the principle of Hall detection. Please try to avoid the influence of magnetic fields when using it!

Shipping List

ACS712 module (20A) x 1 block

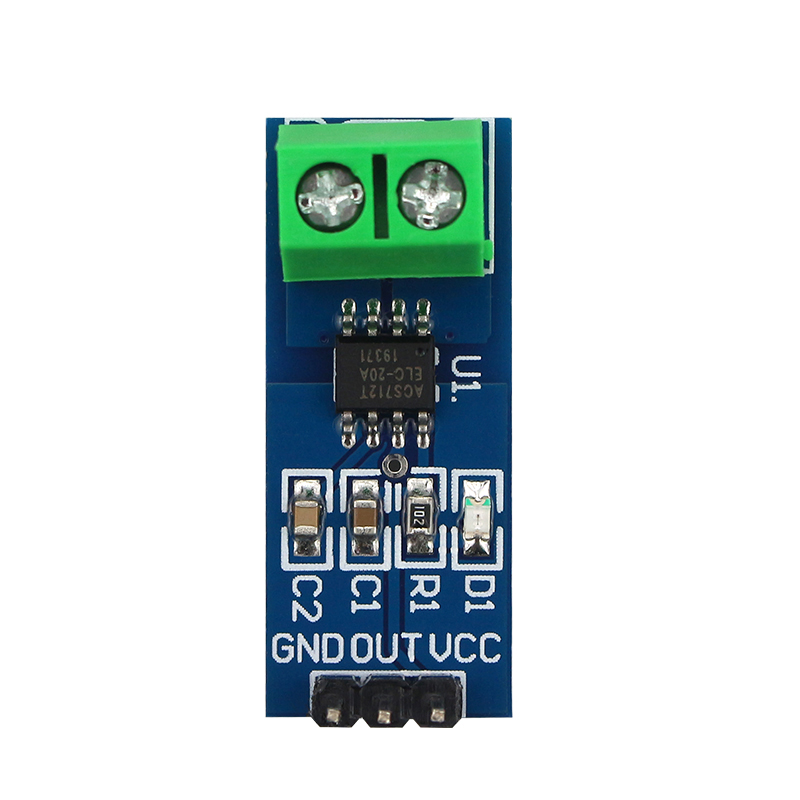

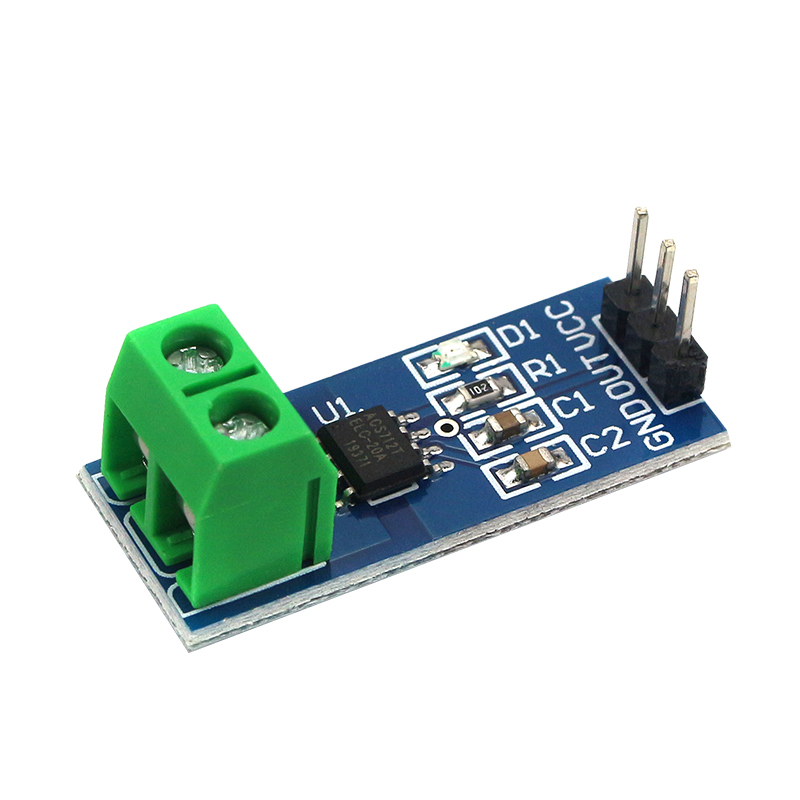

Product Photograph

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
