Module usage instructions

1. Please refer to the wiring diagram below for detailed instructions on the wiring of this module;

2. The switch output of the module depends on the conduction and disconnection of the angle switch. When the angle switch is disconnected, DO outputs a high level, and when the angle switch is turned on, DO outputs a low level;

3. The output terminal can be directly connected to the microcontroller to detect high and low levels, thereby detecting changes in angle;

4. The output end can directly drive the relay module, which can form a high-power angle switch to protect electrical equipment and other products from automatic power-off when they are tilted.

Module features

1. Using the high-sensitivity angle switch SW-520D as the sensor

2. The comparator output has a clean signal, good waveform, and strong driving capability, exceeding 15mA.

3. Working voltage 3.3V-5V

4. Output format: Digital switch output (0 and 1)

5. Equipped with fixed bolt holes for easy installation

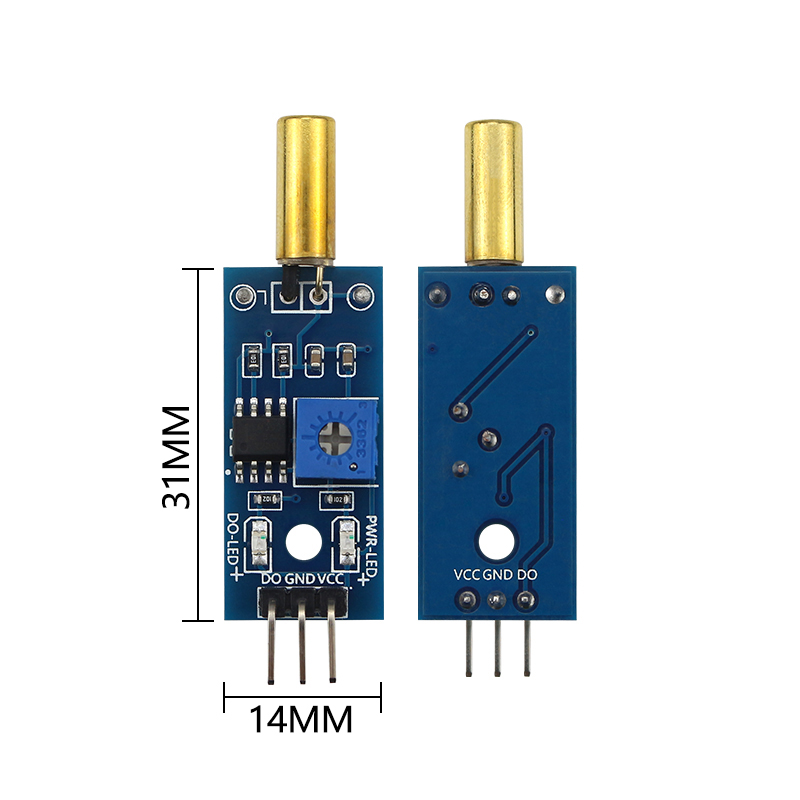

6. Small PCB size: 3.2cm x 1.4cm

7. Using a wide voltage LM393 comparator

Purpose

Various products tilt, tilt trigger alarm, tilt power-off sensor, tilt sensor.

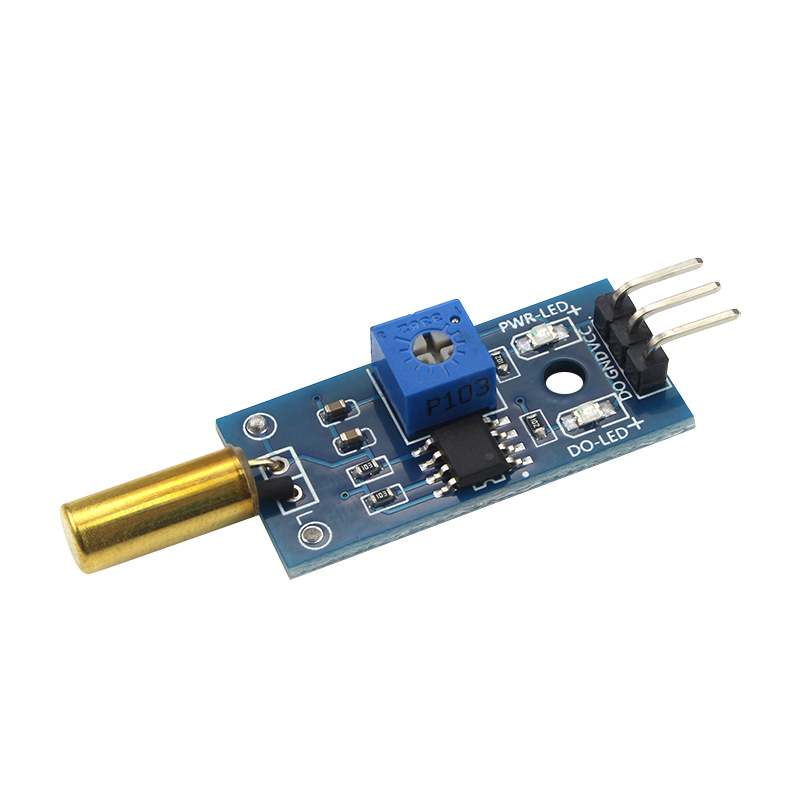

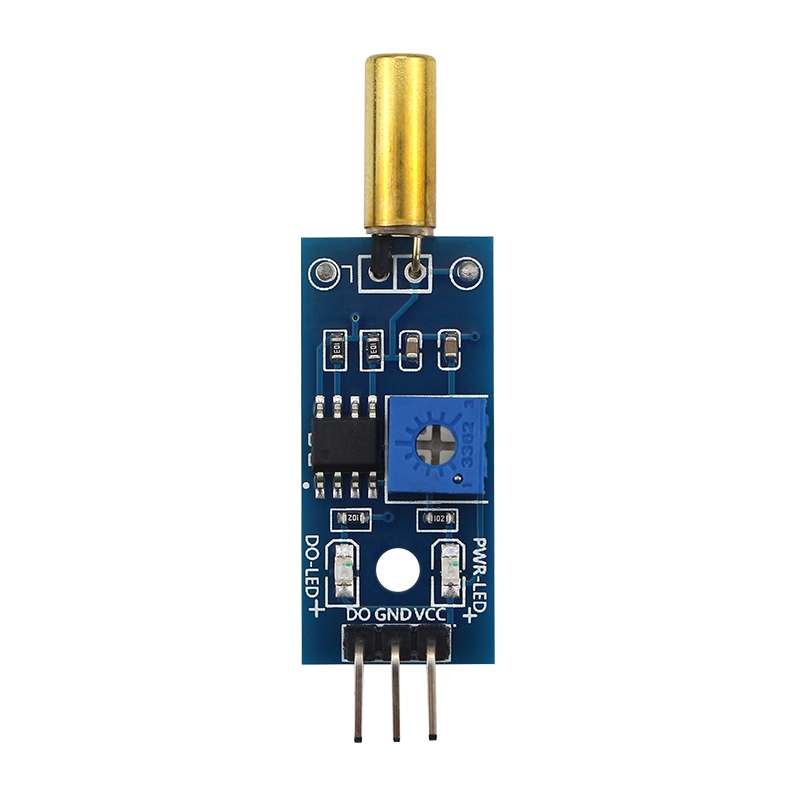

Actual product photos
