Original stock GP2Y1051AU0F PM2.5 dust sensor 0 peripheral circuit 5V serial port
Product Descriptions：
Sharp GP2Y1010AU0F
Additional driving signals need to be provided to the sensor.

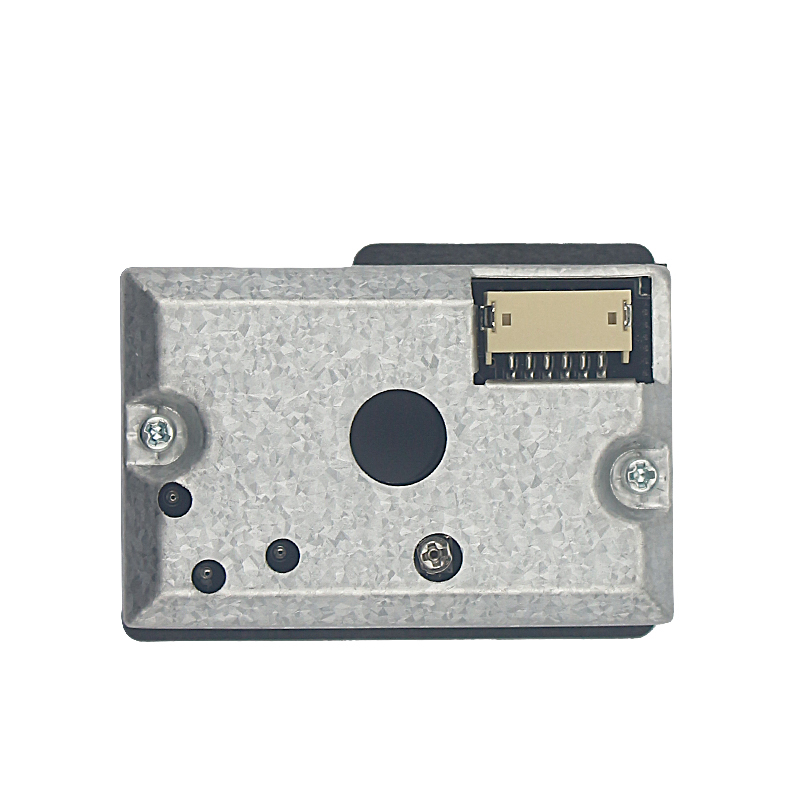

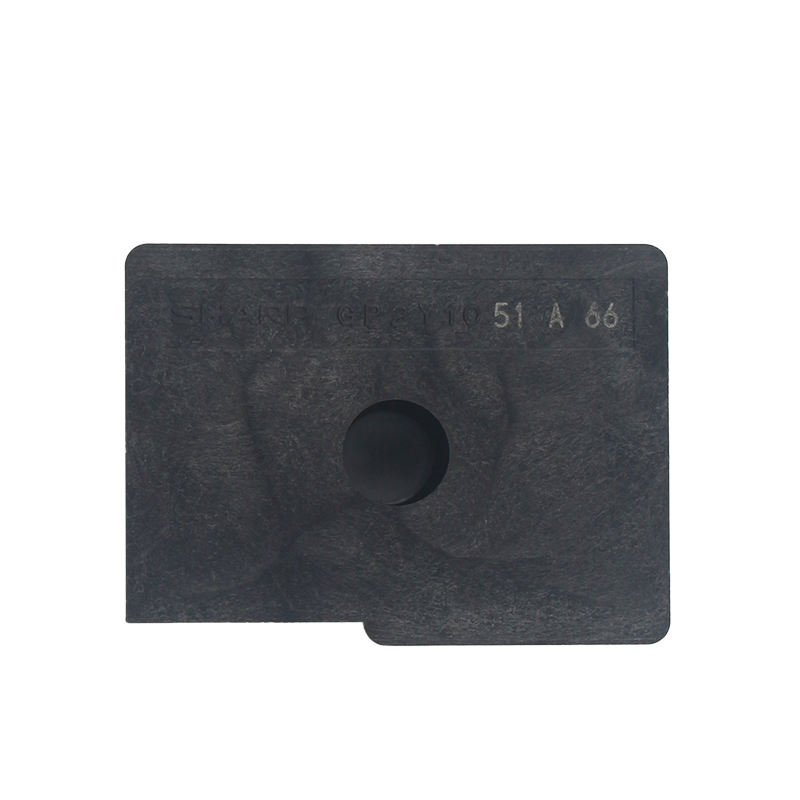

Sharp second-generation GP2Y1051AU0F
No need to provide a driving signal to the sensor, just add 5V DC power.
Sharp's second-generation upgraded version from Japan has high sensitivity and good stability!
Power supply voltage: DC 4.8V-5.2V
Current consumption: 20mA
Sensitivity: 0.35V/(0.1mg/m3)
Working temperature: -10~65 ℃
Storage temperature: -20~80 ℃

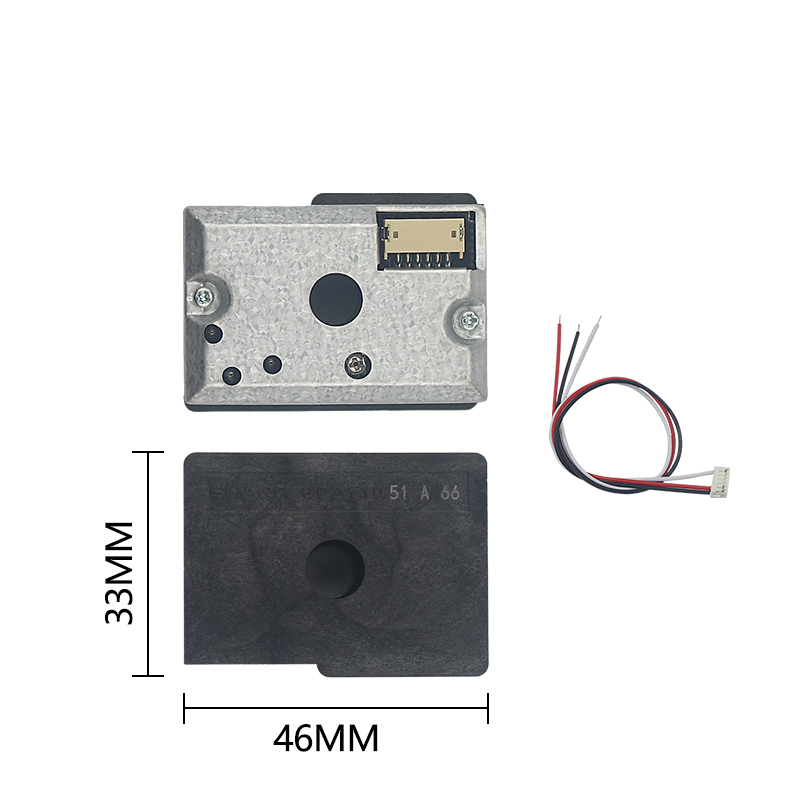

Size: 46mm × 30mm × 17.6mm
Line length: 20cm
