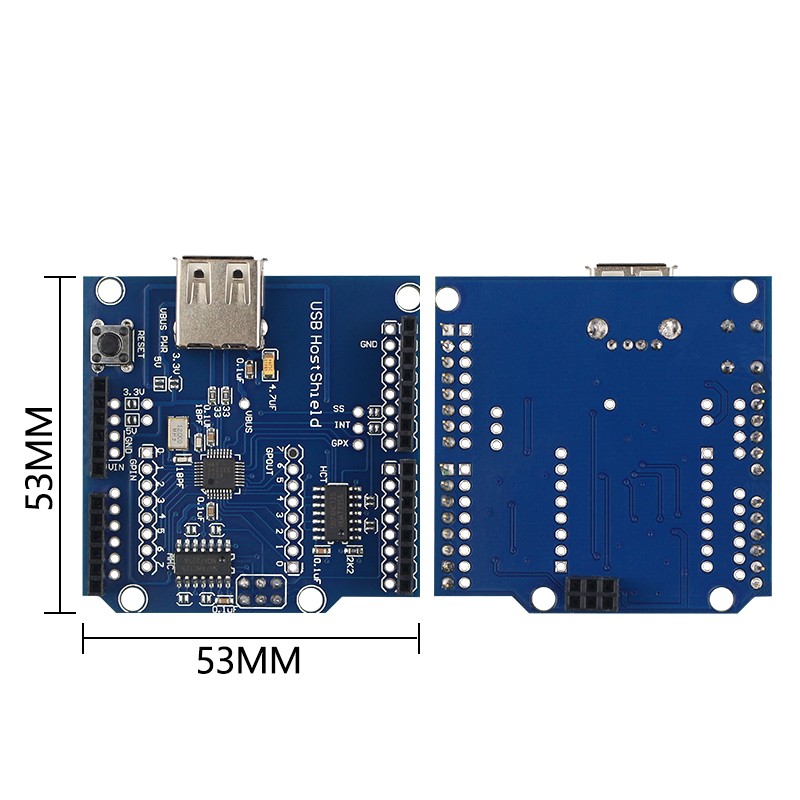

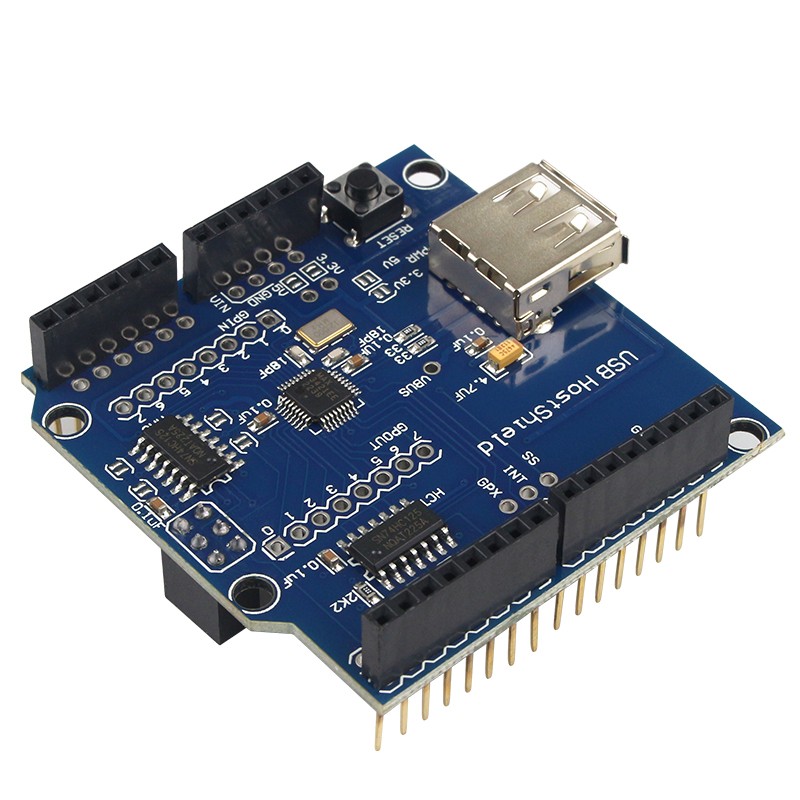

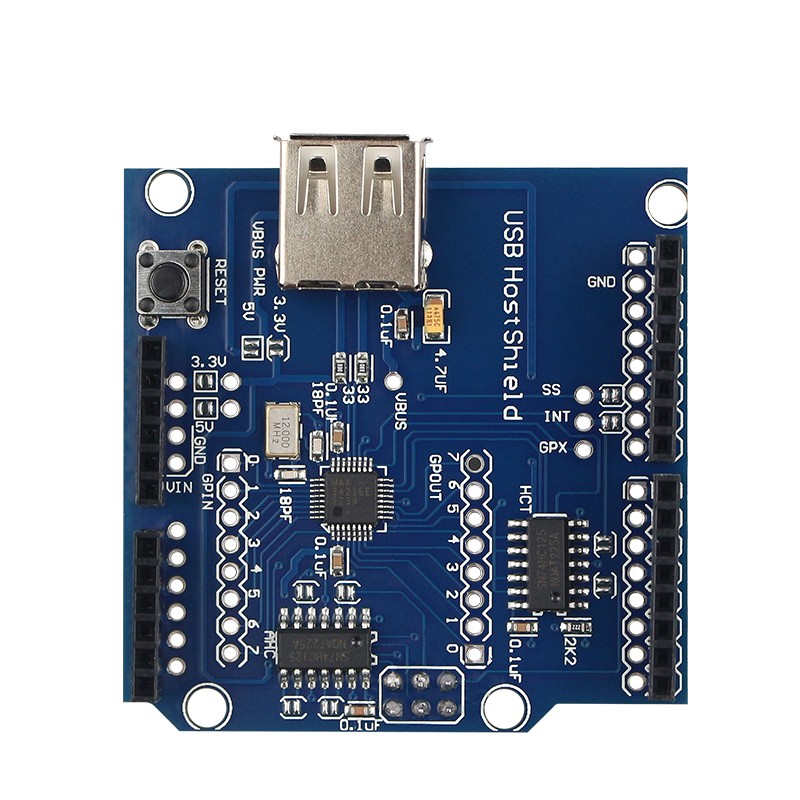

USB Host Shield compatible with Google ADK and compatible with UNO MEGA MAX3421 development board module
Product Descriptions：
Link: https://pan.baidu.com/s/1-J4p-JeEPucjNBmJTChruw Extraction code: 5adt
Support Google Android ADK function, support Android phones: G1, Nexus One, Nexus S, Motorola Droid X
(The mobile system needs to be upgraded to Android 2.3.4, and the tablet needs to be upgraded to Android 3.1)
Provide compiled APK installation package and ADK source files
Compatible with Aduino hardware:
Aduino Uno 328
Aduino Diecimila/Duemilanove 328
Aduino Mega 2560 (recommended)
Aduino Mega 1280Enable Aduino to implement USB HOST functionality, enabling communication with other USB devices and supporting USB HUB functionality.
When debugging Demokit, the phone needs to enable USB debugging
This is a USB Host expansion board that needs to be paired with an Arduino motherboard to use
Supports most Ardu control boards such as UNO, MEGA, etc
The following device classes are currently supported by the shield:
· HID devices, such as keyboards, mice, joysticks, etc.
· USB to serial converters – FTDI, PL-2303, ACM, as well as certain cell phones and GPS receivers
· ADK-capable Android phones and tables
· Digital cameras – Canon EOS, Powershot, Nikon DSLRs and P&S, as well as generic PTP
Support for more devices is currently in development.
Supports AduUNO and MEGA1280, 2560. Ardu can easily communicate with a USB slave device, such as a USB keyboard, mouse, USB flash drive, camera, Android phone, etc.
Using USB Host Shield in conjunction with Ardu can also achieve Google ADK.
USB Host Shield Expansion Board/USB Host Expansion Edition - Enabling Your Ardu to Support Android Phones
Attention: Due to the simplification of some jar packages in Android, running errors may occur. Please refer to the tutorial provided by enthusiastic buyers to solve the problem:
http://intijk.com/
http://intijk.com/?p=977
http://www.cppblog.com/heath/archive/2012/02/02/164857.html
All components are imported with original packaging and produced using lead-free technology.
1. Support Google Android ADK function, support Android phones: G1, Nexus One, Nexus S, Motorola Droid X
(The mobile system needs to be upgraded to Android 2.3.4, and the tablet needs to be upgraded to Android 3.1)
2. Provide compiled APK installation packages and ADK source files
3. Compatible with Arduino hardware:Arduino Uno 328
Arduino Diecimila/Duemilanove 328
Arduino Mega 2560
Arduino Mega 1280
4. Enable Aduino to implement USB HOST functionality, enabling commu。
