1、 Product Introduction and Application
JDY-33 Bluetooth is designed based on Bluetooth 3.0 SPP+BLE, which supports transparent data transmission for Windows, Linux, Android, and IOS. It operates in a 2.4GHz frequency band, uses GFSK modulation, has a transmission power of 6dB, and a transmission distance of 30 meters. Users can modify device names, baud rates, and other commands through AT commands for quick and flexible use.

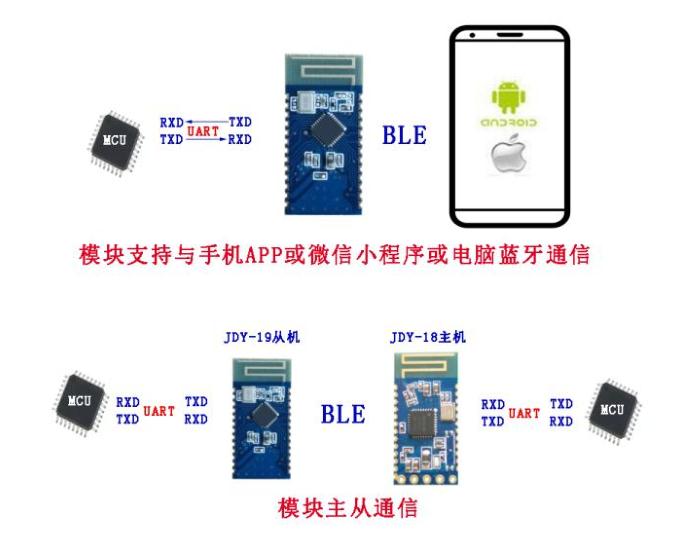

The advantages of JDY-33 are very obvious, supporting SPP and computer Bluetooth communication, supporting mobile APP or WeChat mini program, and also supporting communication between JDY-18 host and slave.
2、 Product application
JDY-33 is a classic Bluetooth+BLE dual-mode Bluetooth that can communicate with Bluetooth enabled computers (desktop, laptop), mobile phones (Android), and IOS. Can be applied to
◆ Bluetooth POS machine
◆ Thermal printer
◆ Smart home control
◆ Automotive ODB testing equipment
◆ Application of various Bluetooth transparent transmission products
◆ Shared power bank, shared weight scale
3、 Module parameters
Model | JDY-33 |
Working frequency band | 2.4GHZ |
Communication interface | UART |
Working voltage | 1.8-3.6V (recommended 3.3V) |
Working temperature | -40℃ - 80℃ |
Antenna | Built in PCB antenna |
Transmission distance | 30 meters |
Master slave support | From machine |
Module size | 26.7 * 13 *1.7 mm(length, width, height) |
Bluetooth version | Bluetooth 3.0 SPP + BLE4.2 |
SMT soldering temperature | <260℃ |
Working current | 6.5mA |
Deep sleep current | <10uA |
Transmission power | 6db（） |
Receiving sensitivity | -96dbm |
SPP throughputSPP | 16K bytes/s (Android, Windows) When connected to Android or computer via Bluetooth, the communication speed can reach 16k bytes per second without packet loss (supporting continuous data transmission and reception via serial port) |
BLE | 4K bytes/s (Android, iOS) When BLE is connected to IOS or Android, the communication speed is 4K per second (supporting continuous data transmission and reception at a baud rate of 38400, but cannot be continuously transmitted at a baud rate higher than 38400, with additional delay in between) |

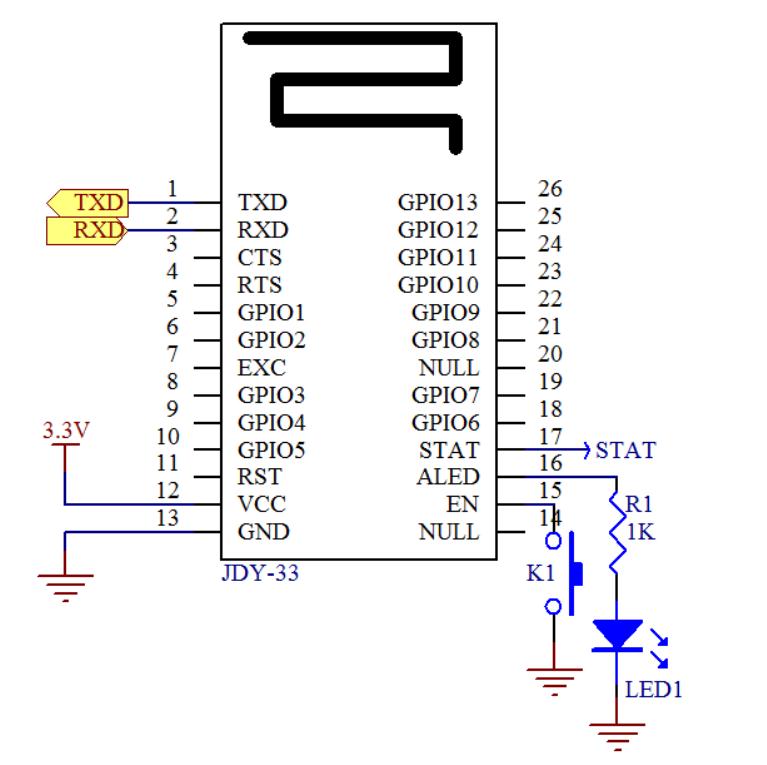

4、 Pin functions and applications
JDY-33 generally only needs to connect the VCC, GND, RXD, and TXD pins for general applications. If the connection is disconnected in the connected state and AT+DusC is sent, deep sleep is required to send AT+SLEEP in the unconnected state. After deep sleep, it can be awakened by the EN pin's falling edge or by sending data through the serial port. It is generally recommended to use the serial port to send the AT+VERSION command to wake up.
5、 Pin Function Description
PIN | Pin function | Pin Function Description |
1 | TXD | Serial port output pin (TTL level) |
2 | RXD | Serial input pin (TTL level) |
3 | CTS | Serial port flow control CTS pin |
4 | RTS | Serial port flow control RTS pin |
5 | GPIO1 | Default no function (can customize input/output IO control according to customer needs |
6 | GPIO2 | Default no function (can customize input/output IO control according to customer needs) |
7 | EXC | Default no function (can customize input/output IO control according to customer needs) |
8 | GPIO3 | Default no function (can customize input/output IO control according to customer needs) |
9 | GPIO4 | Default no function (can customize input/output IO control according to customer needs) |
10 | GPIO5 | Default no function (can customize input/output IO control according to customer needs) |
11 | RST | Reset (low level effective) |
12 | VCC | Power supply(1.8-3.6V) |
13 | GND | Land |
14 | NULL | |
15 | EN | Input pin, used for sleep wake-up (effective falling edge) |
16 | ALED | Broadcast status pin (not connected to flash, outputs high level after connection) |
17 | STAT | Connect status pin (not connected to low level, outputs high level after connection) |
18 | GPIO6 | Default no function (can customize input/output IO control according to customer needs) |
19 | GPIO7 | Default no function (can customize input/output IO control according to customer needs) |
20 | NULL | |
21 | GPIO8 | Default no function (can customize input/output IO control according to customer needs) |
22 | GPIO9 | Default no function (can customize input/output IO control according to customer needs) |
23 | GPIO10 | Default no function (can customize input/output IO control according to customer needs) |
24 | GPIO11 | Default no function (can customize input/output IO control according to customer needs) |
25 | GPIO12 | Default no function (can customize input/output IO control according to customer needs) |
26 | GPIO13 | Default no function (can customize input/output IO control according to customer needs) |

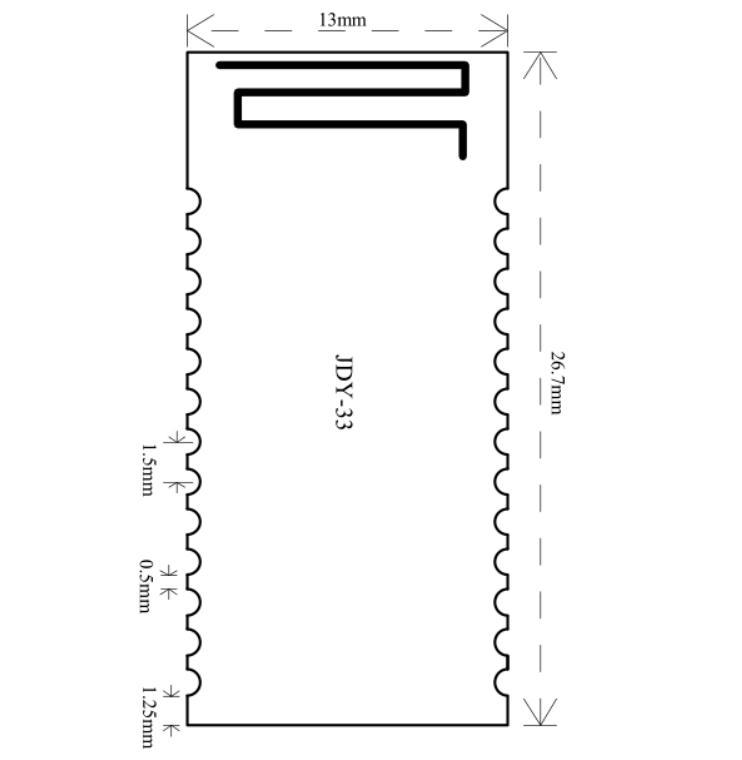

6、 PCB packaging size
7、 Serial port AT instruction set
The JDY-33 module's serial port must include the AT command when sending it.
Sequence | Instructions | Function | Default |
1 | AT | Test | |
2 | AT+VERSION | Version number | JDY-33-V1.1 |
3 | AT+STAT | Query connection status | 00 |
4 | AT+SLEEP | Sleep | - |
5 | AT+BAUD | Baud rate setting and query | 9600 |
6 | AT+NAME | Broadcast Name Setting and Query | JDY-33-SPP |
7 | AT+NAMB | BLE broadcast name setting query | JDY-33-BLE |
8 | AT+PIN | Connection password setting and query | 1234 |
9 | AT+LADDR | Query the MAC address of the module | |
10 | AT+RESET | Soft reset | - |
11 | AT+DEFAULT | Restore factory settings | - |
12 | AT+DISC | Disconnect (valid in connected state) | - |
13 | AT+TYPE | Set the query pairing password switch | 0 |
14 | AT+ENLOG | Enable serial port status output | 1 |
15 | AT+UUIDLEN | Set query UUID length | 0 |
16 | AT+SVRUUID | BLE service UUID setting query | FFE0 |
17 | AT+CHRUUID | BLE feature UUID setting query | FFE1 |
18 | AT+CRXUUID | BLE feature UUID setting query | FFE2 |
