30mm remote concealed wireless charger with wired output, furniture, coffee table, desk, bar modification
Product Descriptions:
Compliant with WPC V1.2.3 wireless charging specifications
Product standard: BPP certification standard
Support wireless charging for mainstream smartphones such as Huawei, Xiaomi, Samsung, Apple, etc
Power supply mode: 24V/2-3A power adapter
Wireless charging power: 10W/7.5W/5W automatic recognition
Wireless charging efficiency: around 70%
Sensing distance: within 12-32mm, ideal distance 15-28mm
Working frequency: 100-205Khz
Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit
Support dual foreign object inspection (FOD)
Built in fan, self starting when overheated

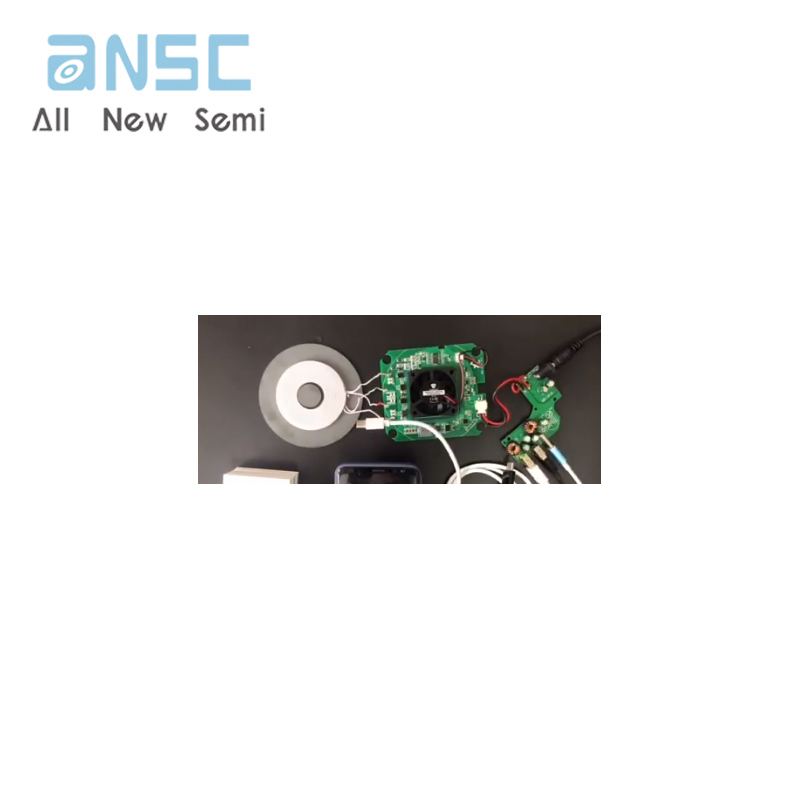

Can be paired with a wired output module, with a total output power of 48W from three ports
Cannot directly place the phone on the coil, it needs to be separated by more than 12mm

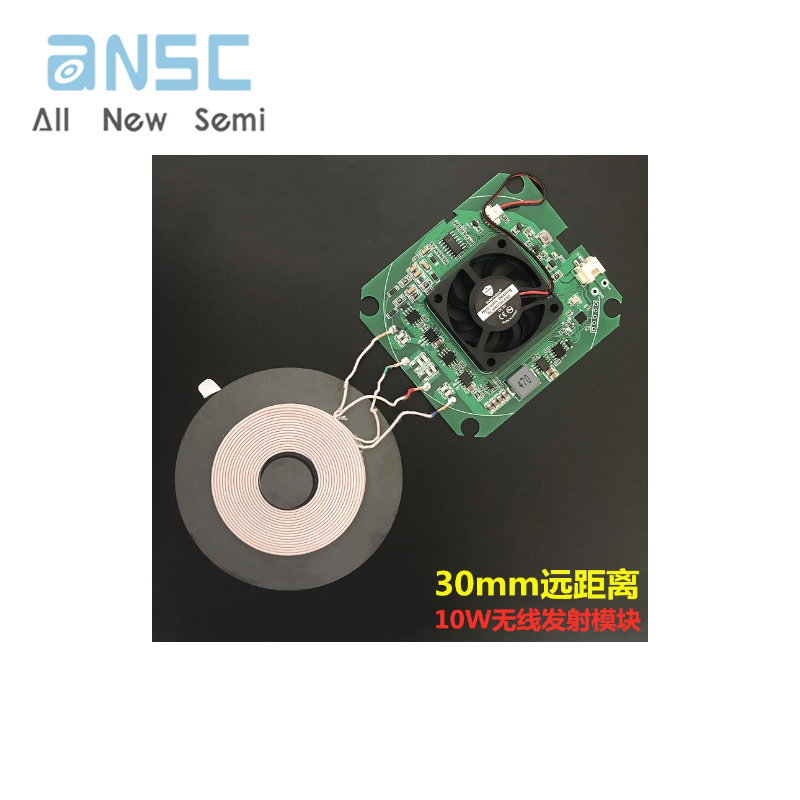

Overall dimensions of PCBA board: length 88mm * width 78mm * thickness 8mm
Magnetic isolation coil size: diameter 70mm, thickness 7mm, 4-layer coil
About Application
About customization
Delivery display
