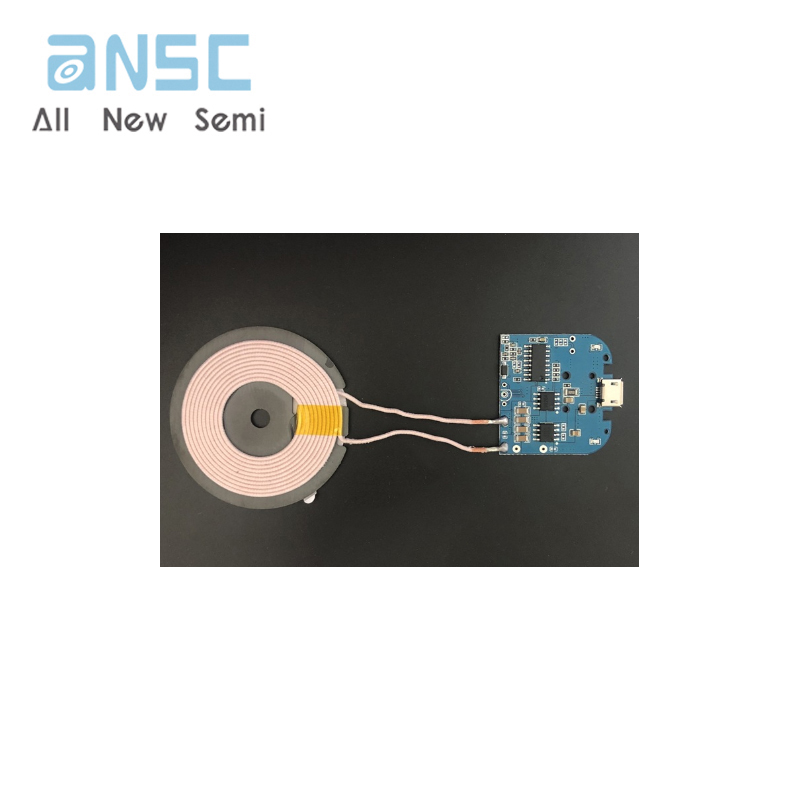

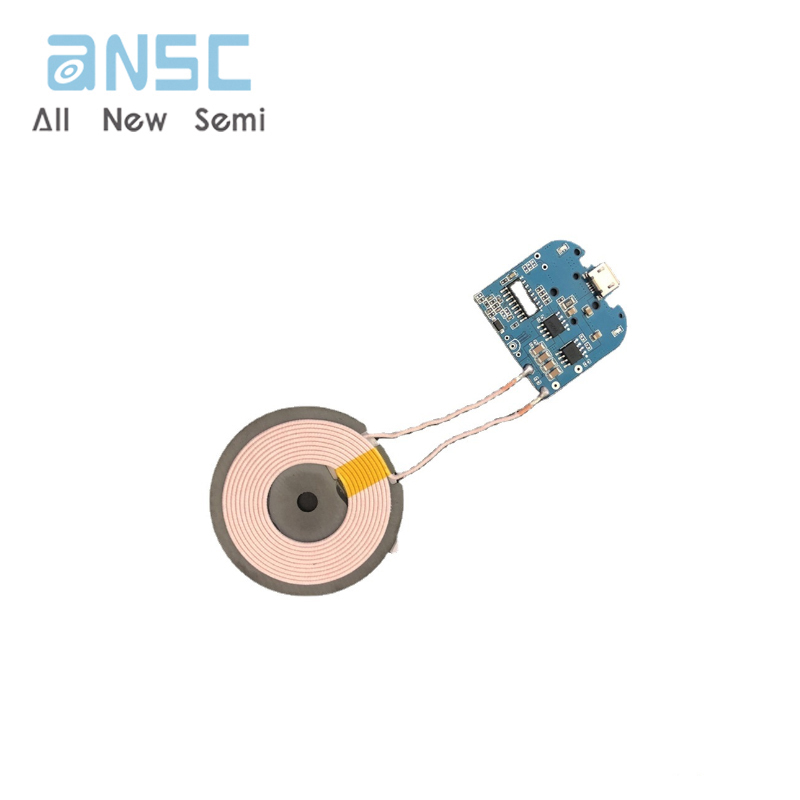

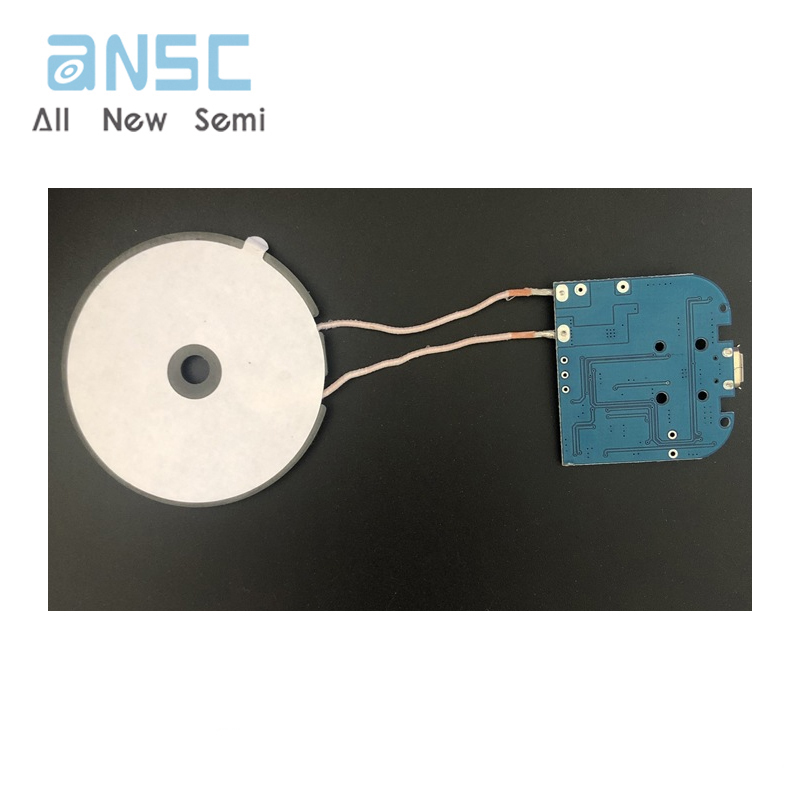

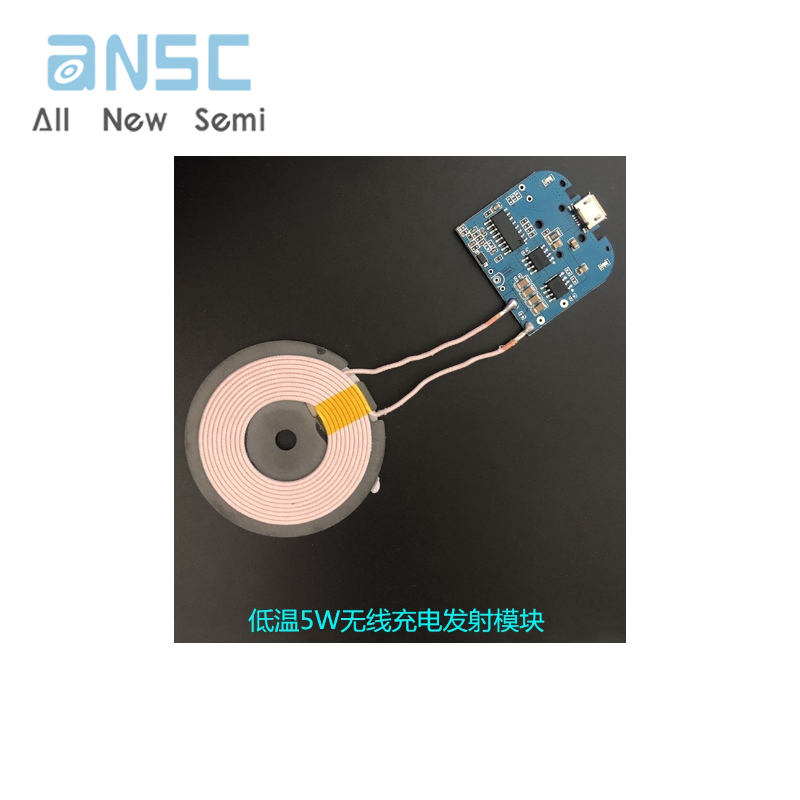

Q5 mobile wireless charger 5W transmitter module base suitable for Apple, Huawei, Samsung circuit board coil modification
Product Descriptions:
Compliant with WPC V1.1 wireless charging specifications
Product standard: QI
Supports wireless charging protocols for smartphones such as Samsung, iPhone, Huawei, Xiaomi, etc
Built in MCU, 12 bit high-precision ADC, communication decoding
Input voltage/current: 5V-2A
Output voltage/current: 5V-1A
Supports peak 5W power output
Charging efficiency is around 75%
Sensing distance<8mm
Working frequency: 100-200Khz
Support dynamic energy balance
Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit
Support dual foreign object inspection (FOD)

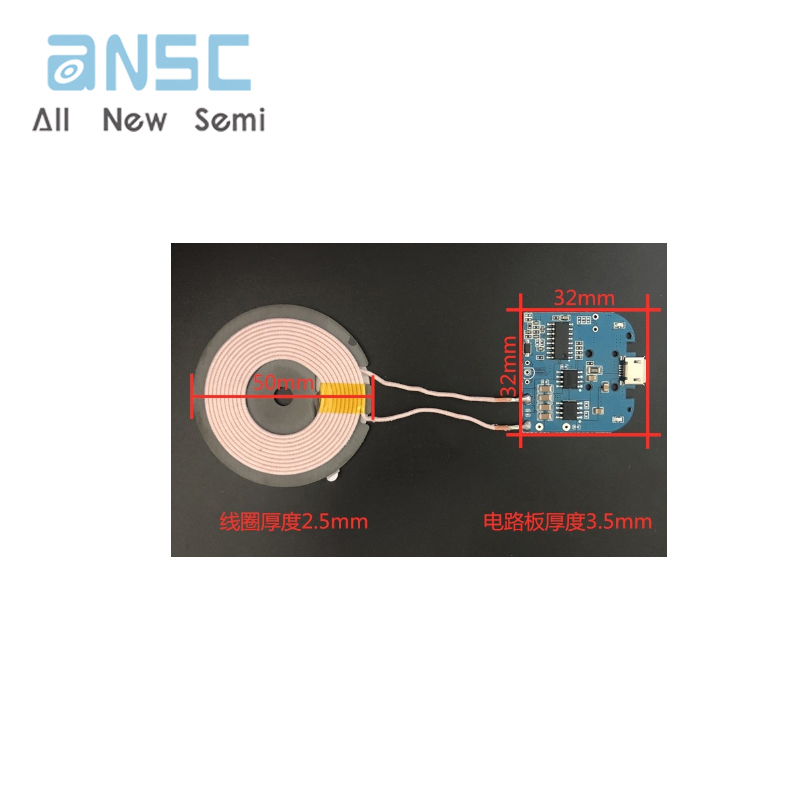

PCBA board size: length 32mm * width 32mm * thickness 3.5mm
Magnetic coil size: diameter 50mm, thickness 2.5mm
