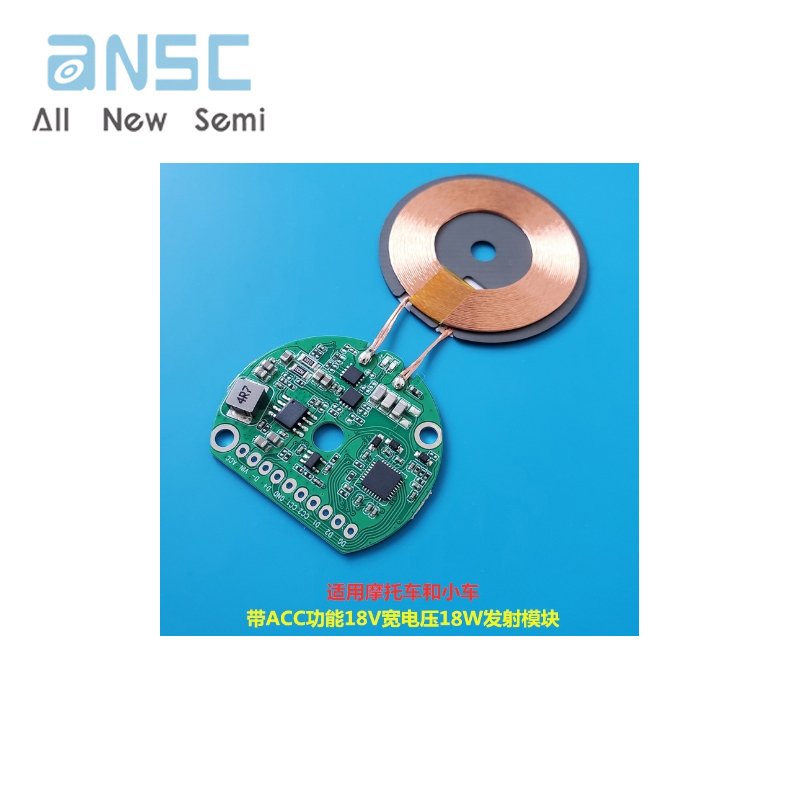

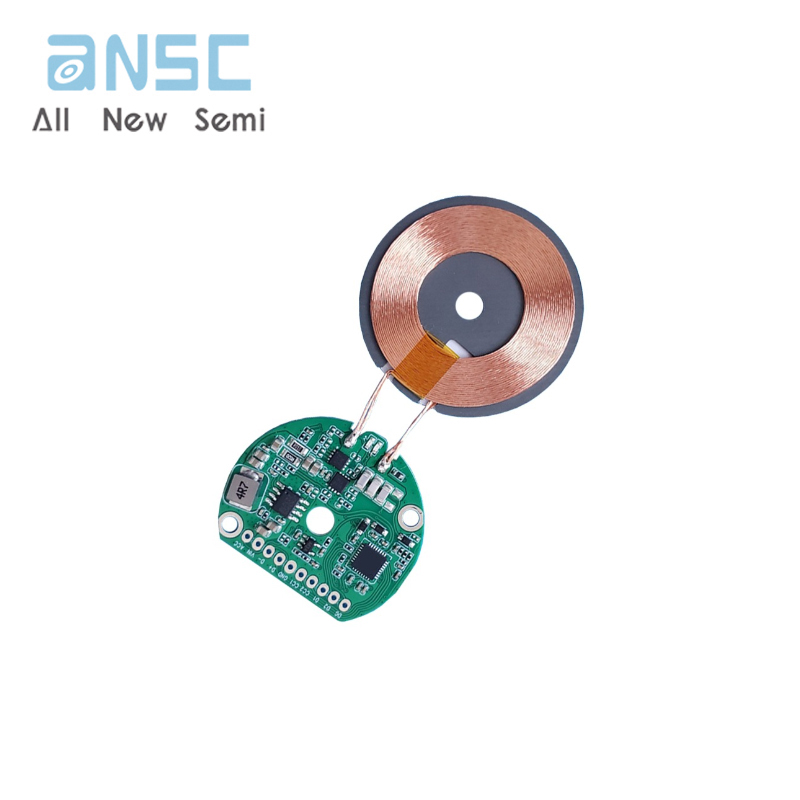

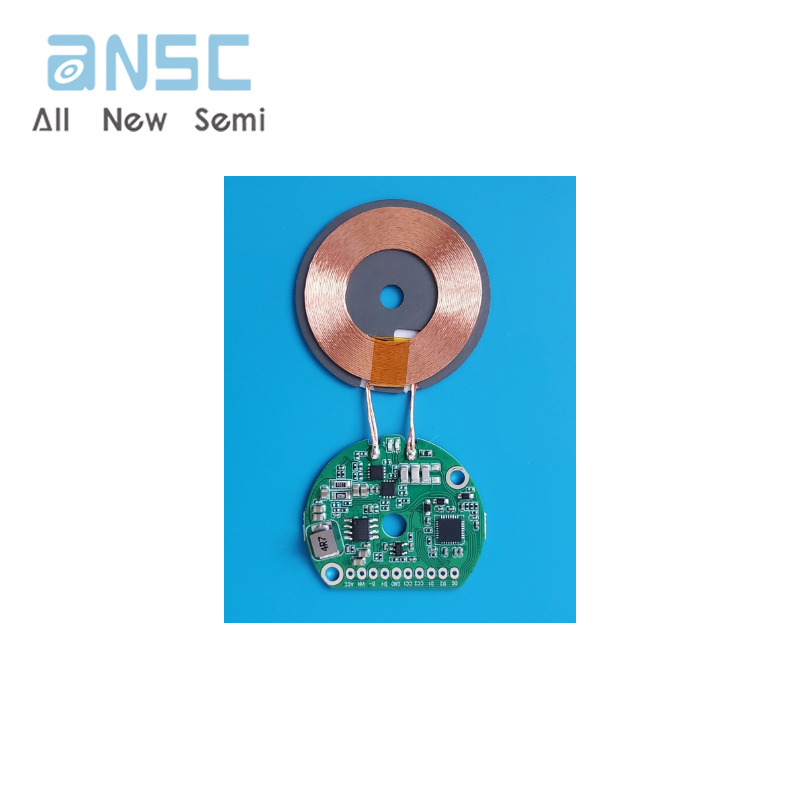

Car mounted 18W highpower mobile wireless charger transmitter module suitable for DIY modification of motorcycles and small cars
Product Feature:
Compliant with WPC V1.2.4 wireless charging specifications
Product standard: EPP certification standard
Equipped with ACC switch function, supports Apple 12 and above charging pop-up animation
Support wireless charging for mainstream smartphones such as Huawei, Xiaomi, Samsung, Apple, etc
Using high-performance control chips, power management chips, and low-temperature throughout the entire process
High stability, strong compatibility, suitable for motorcycles and small cars
Input voltage/current: 9V-18V/2A
Output power: 5-18W automatic recognition
Charging efficiency: around 75-80%
Sensing distance: ≤ 8mm
Working frequency: 100-200Khz
Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit
Support dual foreign object detection (FOD)
PCBA board size: length 40mm * width 34mm * thickness 3.8mm
Magnetic separator coil size: diameter 43mm * thickness 1.8mm
