15W high-power wireless charger for mobile phones fast charging and transmitting module PCBA circuit board coil DIY modification
Product Feature:
Compliant with WPC V1.2.3 wireless charging specifications
Support mainstream mobile phone fast charging protocols such as Huawei, Xiaomi, Samsung, Apple, etc
Using high-performance main control chip, low-temperature charging throughout the entire process
Input method: QC3.0 charging head or soldering cable (9V/2A or 12V/2A adapter)
Output power: 15W/10W/7.5W/5W automatic recognition
Charging efficiency: around 70-80%
Sensing distance:<10mm
Working frequency: 100-200Khz
Support dynamic energy balance
Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit
Support dual foreign object inspection (FOD)

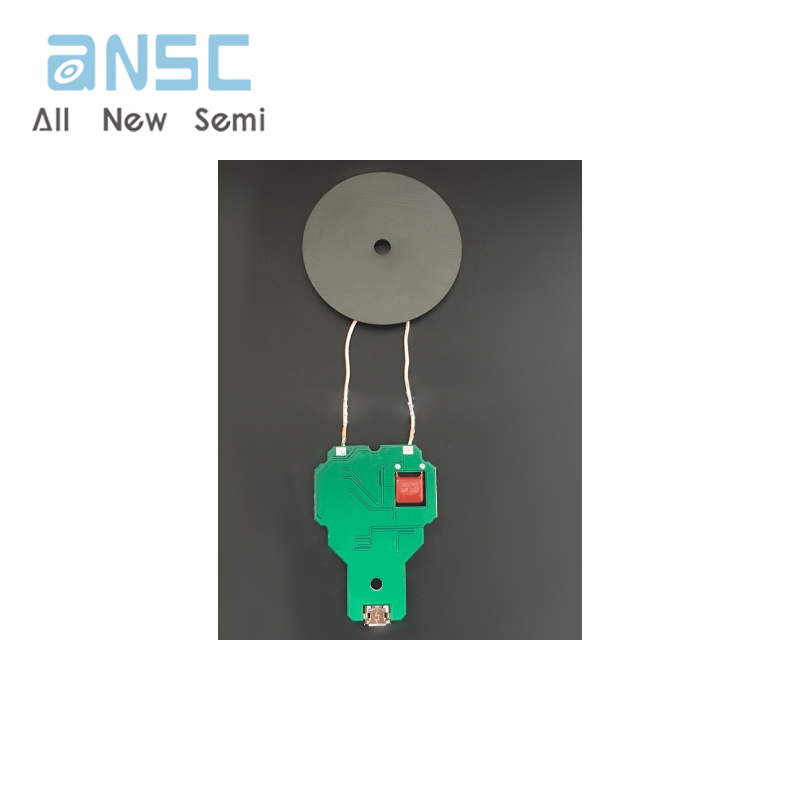

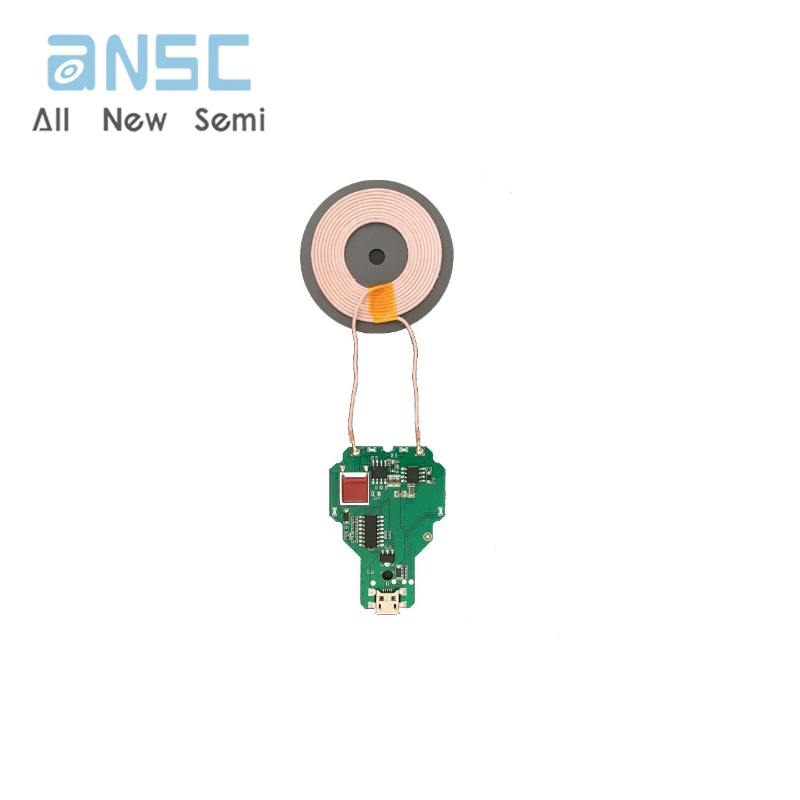

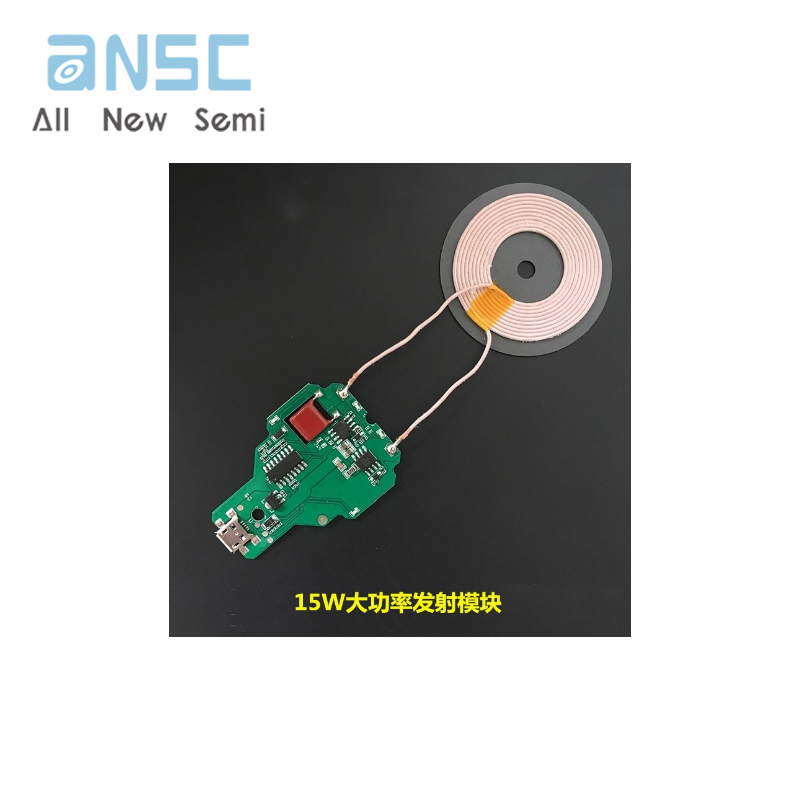

PCBA board size: length 36mm * width 52mm * thickness approximately 2.9mm
Magnetic coil size: diameter 50mm * thickness 2mm
