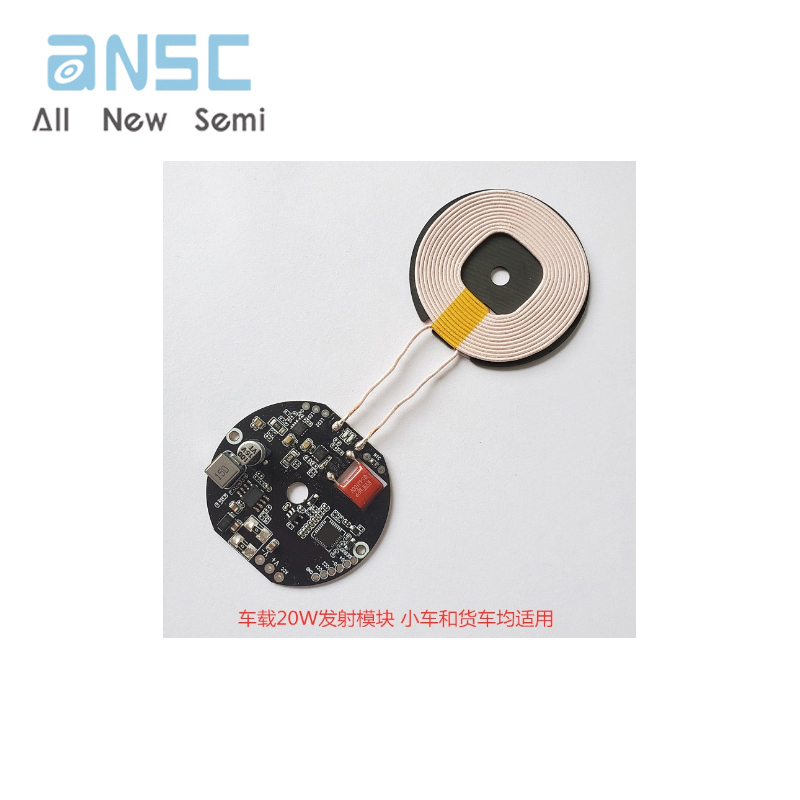

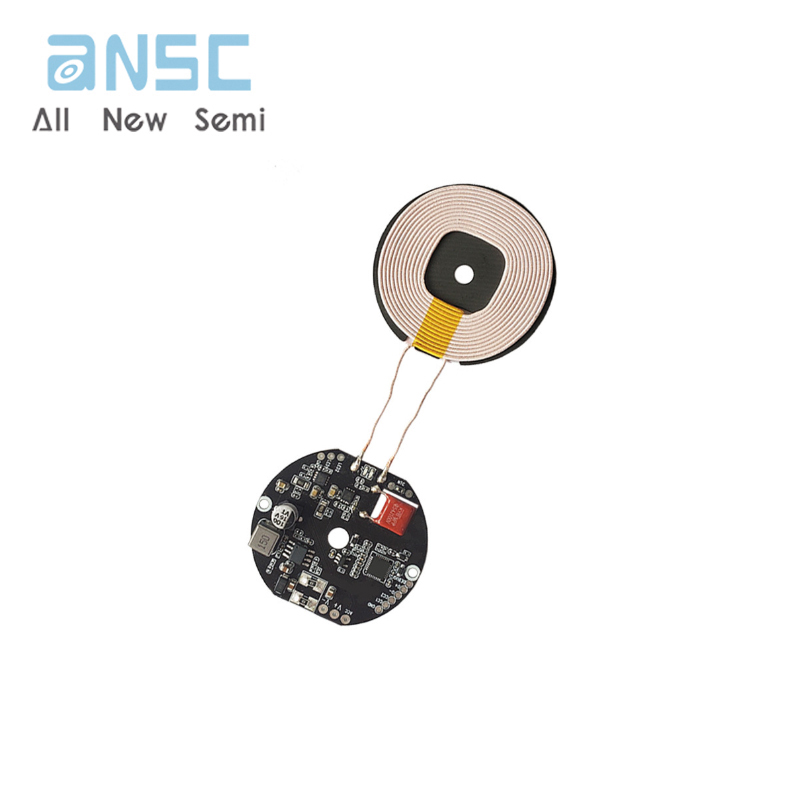

Car mounted 20W mobile wireless charging and transmitting module suitable for Apple Android car DIY modification
Product Feature:
Compliant with WPC V1.2.3 wireless charging specifications
Product standard: EPP certification standard
Supports 13 pop-up animations and wireless charging for mainstream smartphones such as Huawei, Xiaomi, Samsung, and Apple
Using high-performance control chips, power management chips, and low-temperature throughout the entire process
High stability, strong compatibility, suitable for both small cars and trucks
Input voltage/current: 9V-30V2A
Output power: 20W/15/10W/75W/3W Automatic recognition
Charging efficiency: around 80%
Sensing distance: ≤ 8mm
Working frequency: 100-200Khz
Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit
Support dual foreign object detection (FOD)
PCBA board size: length 48mm * width 43mm * thickness 6.8mm
Magnetic separator coil size: diameter 50mm * thickness 2.3mm
