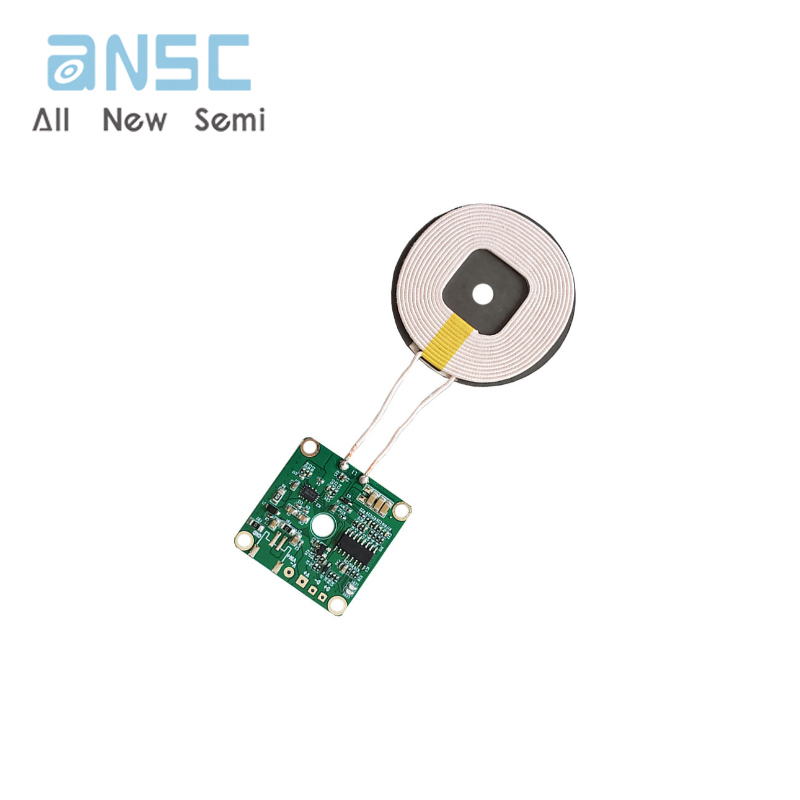

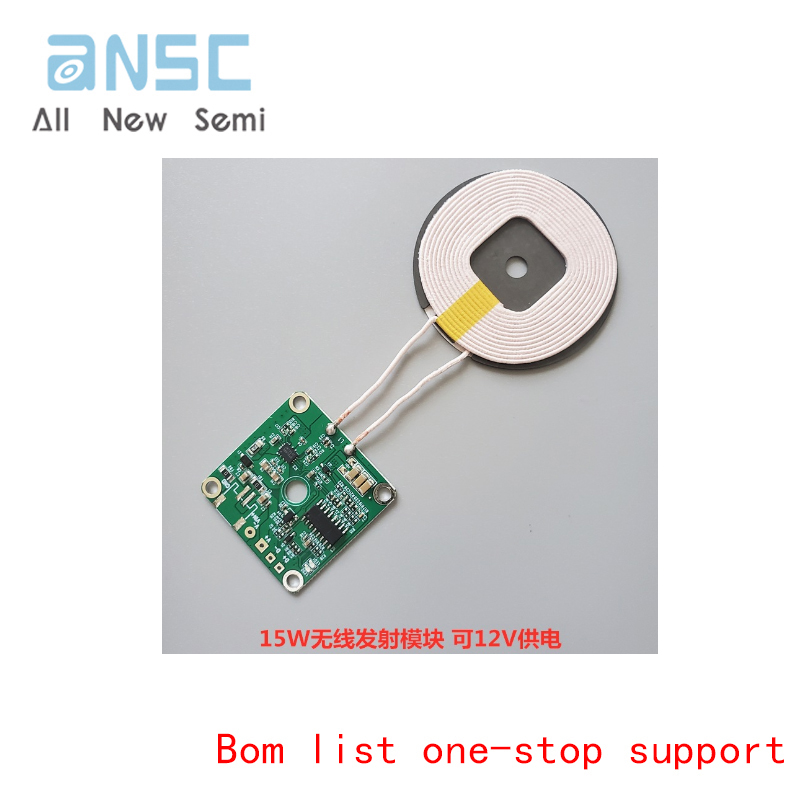

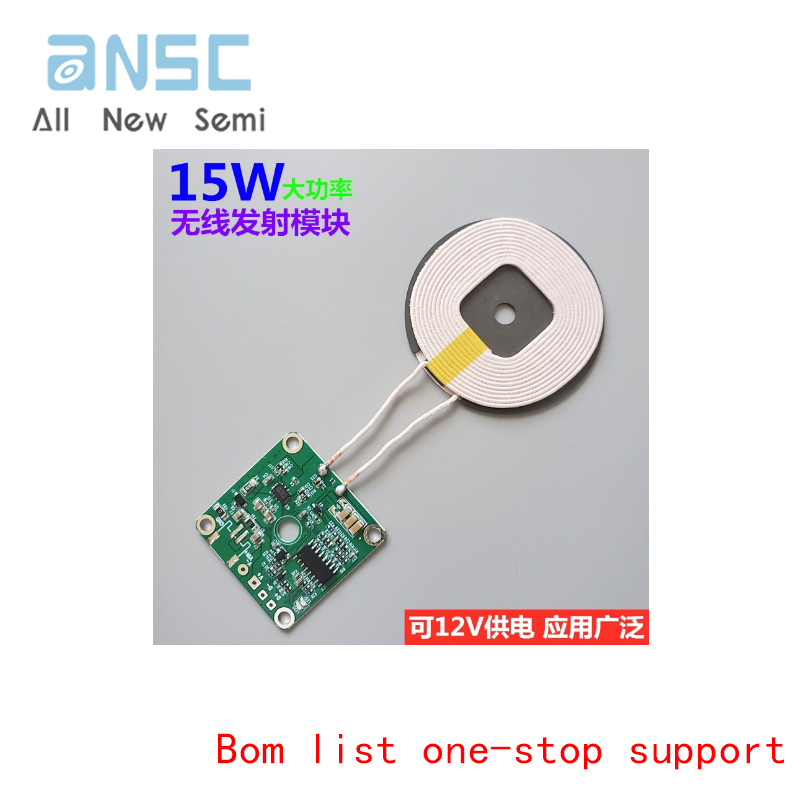

15W mobile wireless charger transmitter module 12V voltage suitable for bedside table lamp digital product modification
Product Feature:
Compliant with WPC V1.2.4 wireless charging specifications
Support mainstream smartphones such as Huawei, Xiaomi, Samsung, Apple, etc
Using high-performance main control chips, with strong compatibility and wide applications
It can be directly powered by 12V and is suitable for installing bedside tables, desk lamps, and other products

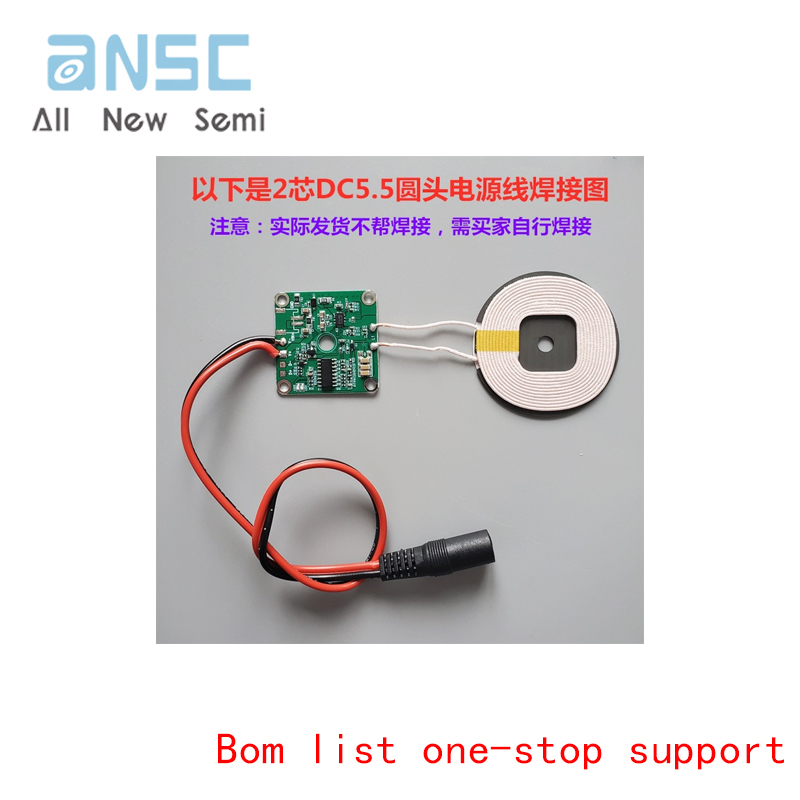

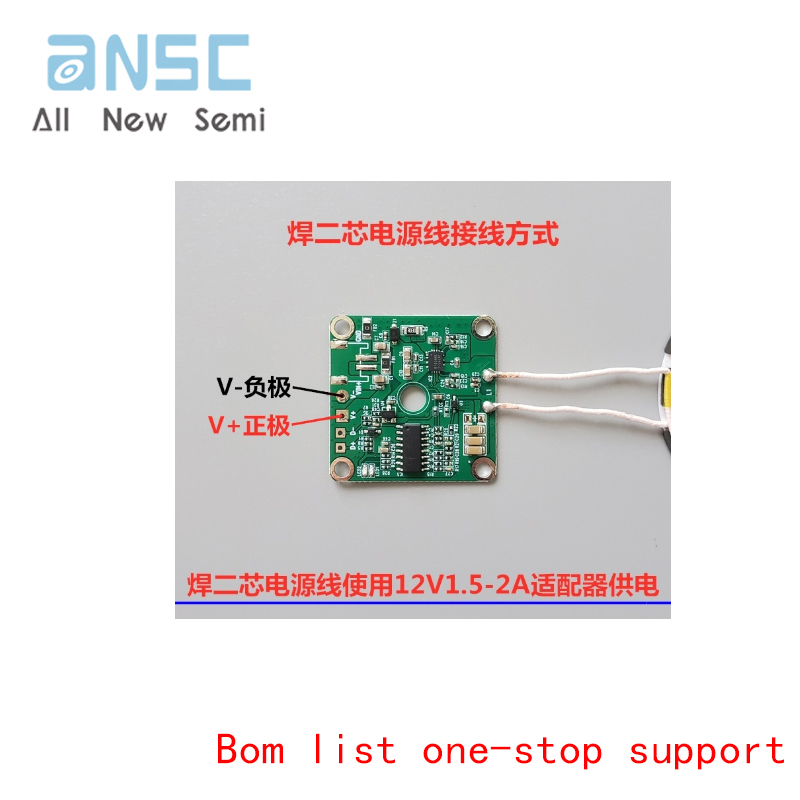

Use a 12V/1.5-2A power adapter to power the soldering two core power cord

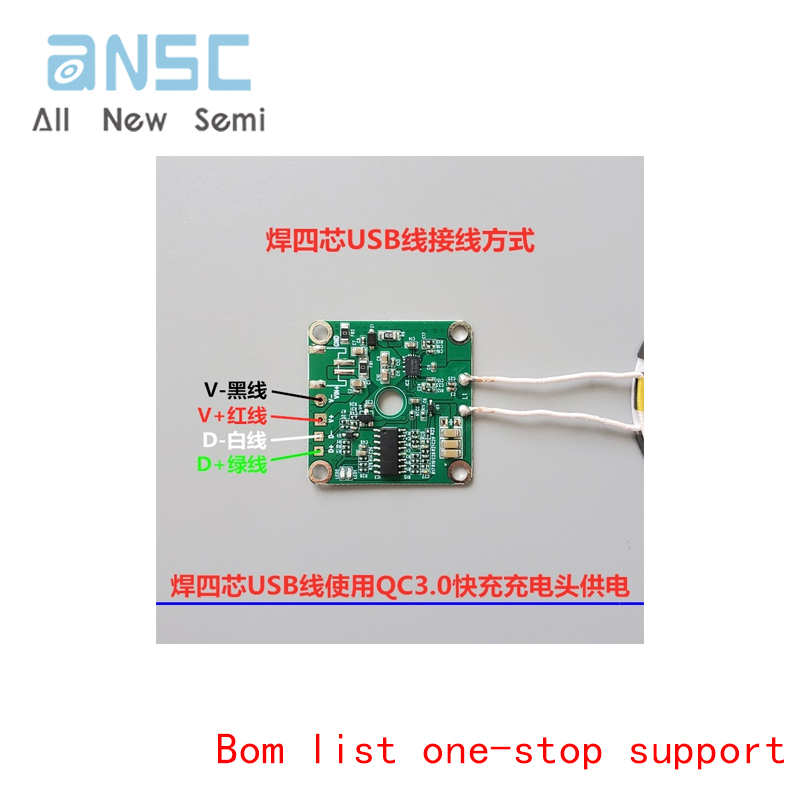

Welding four core USB cable using QC3.0 fast charging head for power supply
Input voltage/current: 12V-1.5-2A, 9V-2A
Output power: 15W/10W 7.5W/5W Automatic recognition
Charging efficiency: around 75%
Sensing distance<8mm
Working frequency: 100-200Khz
Support dynamic energy balance

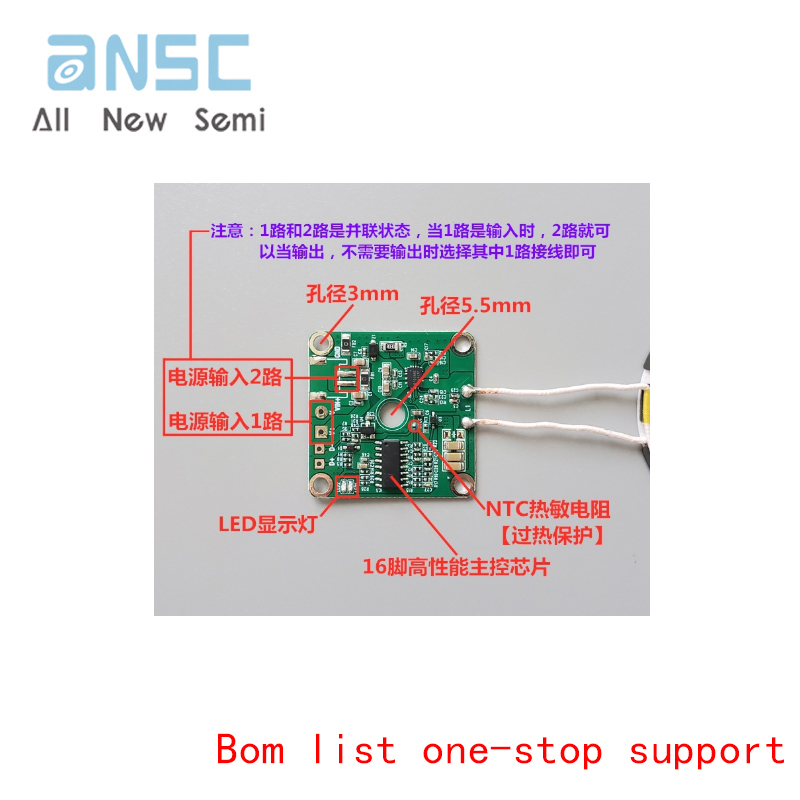

Equipped with overcurrent, overvoltage, overheating and other protection functions
Support dual foreign object inspection (FOD)

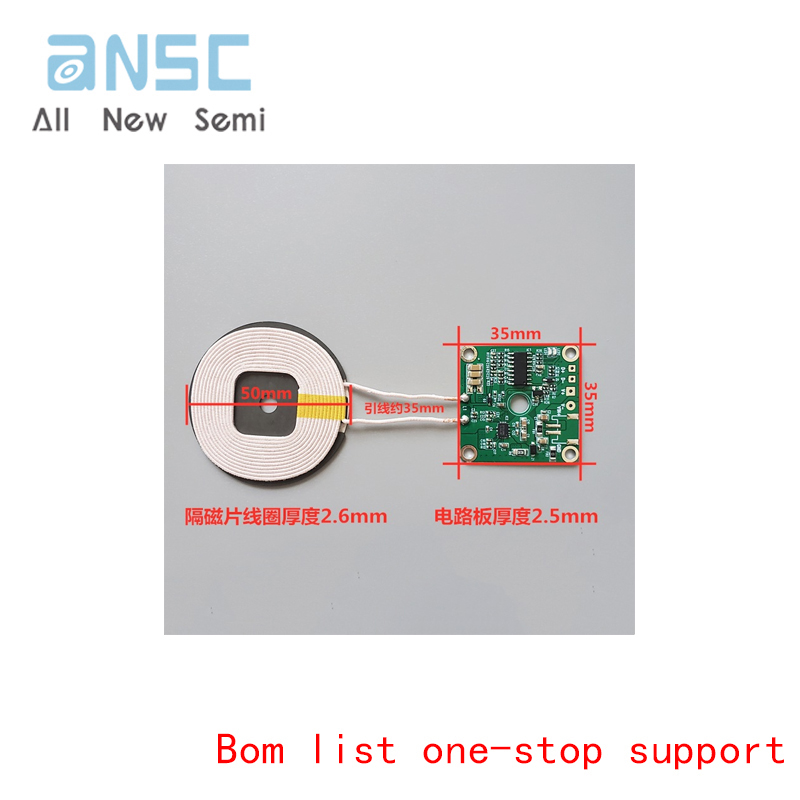

PCBA board size: length 35mm * width 35mm * thickness 2.5mm
Magnetic coil size: diameter 50mm, thickness 2.6mm, 12 coil
