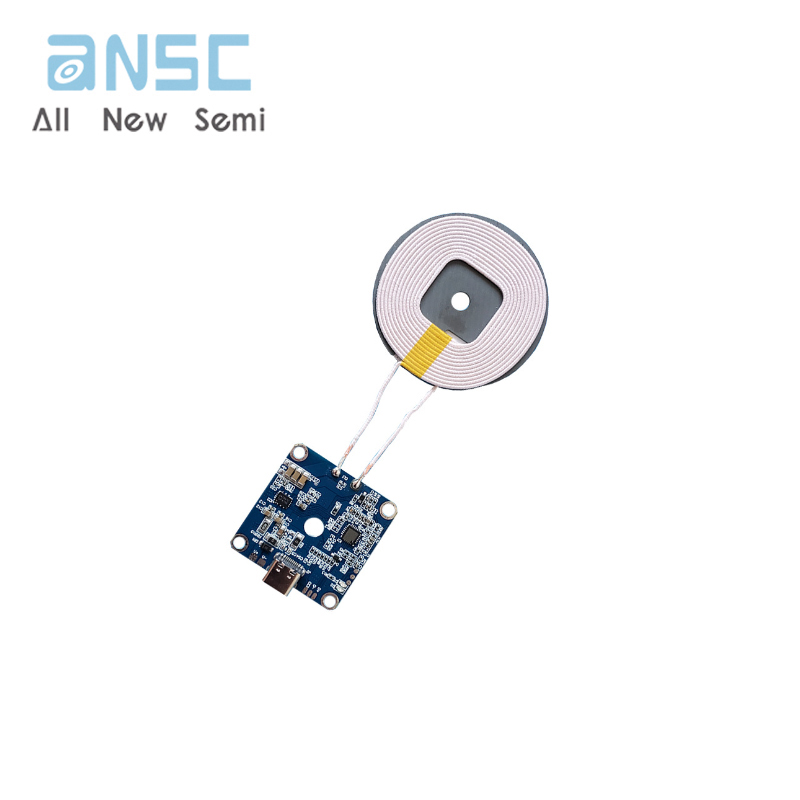

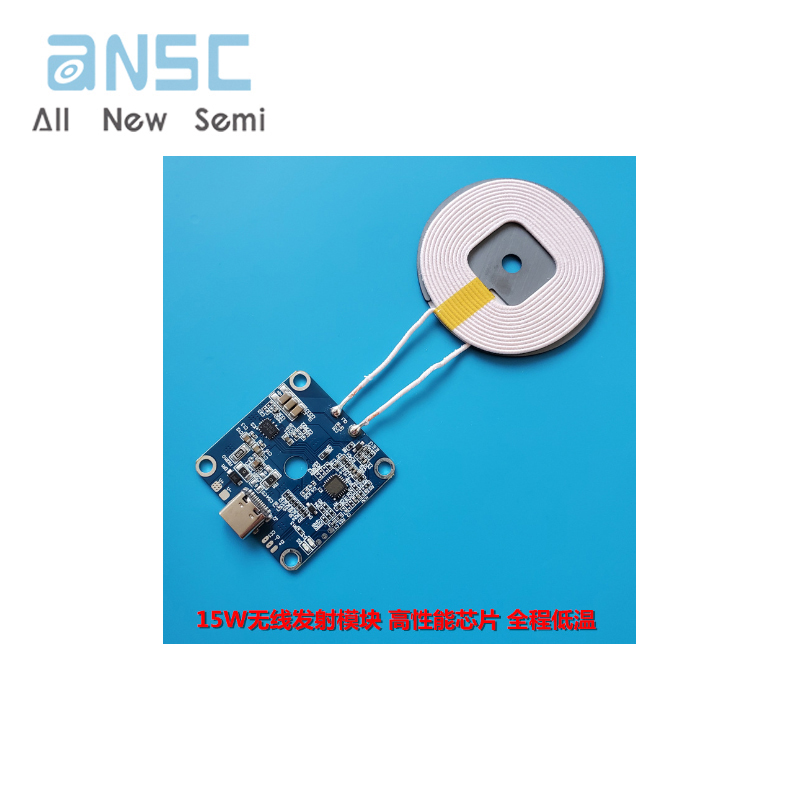

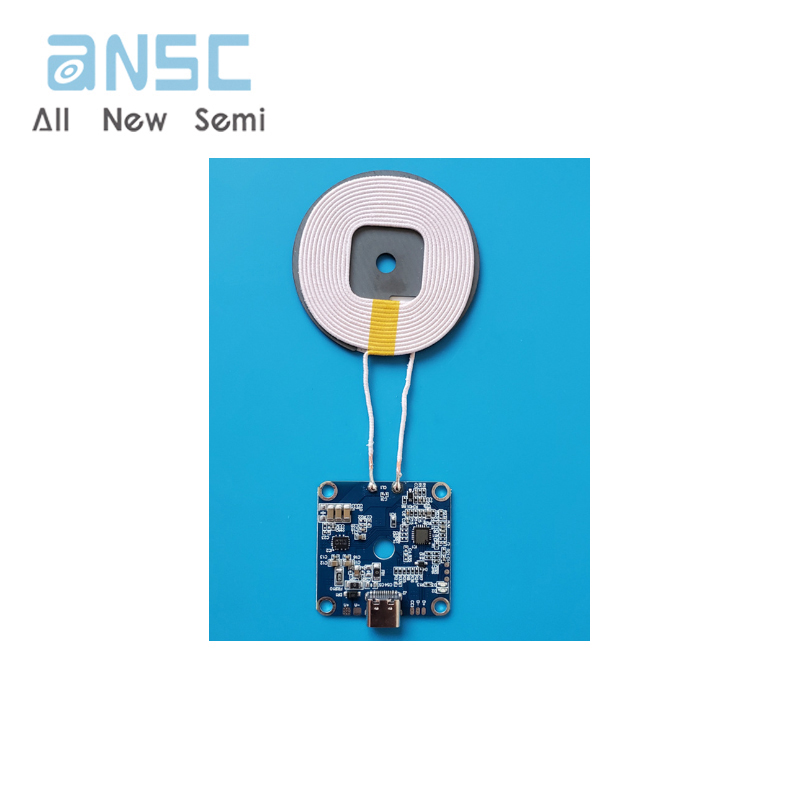

New 15W ultra-low temperature mobile phone wireless charger transmitter module 12V voltage furniture desk lamp car modification
Product Feature:
Compliant with WPC V1.2.4 wireless charging specifications
Product standard: QI standard
Support QC, PD protocol fast charging head power supply
Support wireless charging for mainstream smartphones such as Huawei, Xiaomi, Samsung, and Apple
Using high-performance main control chip, low-temperature charging throughout the entire process
Input voltage/current: 12V-1.5-2A, 9V-2A, 5V-2A
Output power: 15W/10W 7.5W/5W Automatic recognition
Charging efficiency: around 80%
Sensing distance: ≤ 8mm
Working frequency: 100-200Khz
Support dynamic energy balance
Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit
Support dual foreign object inspection (FOD)
PCBA board size: length 35mm * width 35mm * thickness 3.3mm
Magnetic coil size: diameter 50mm, thickness 2.6mm, 12 coil
