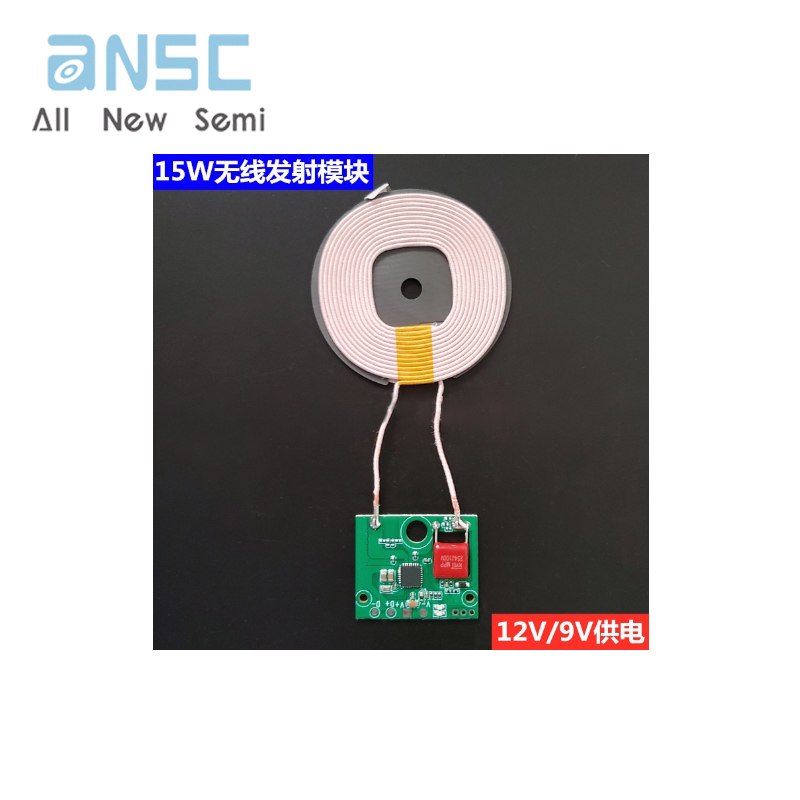

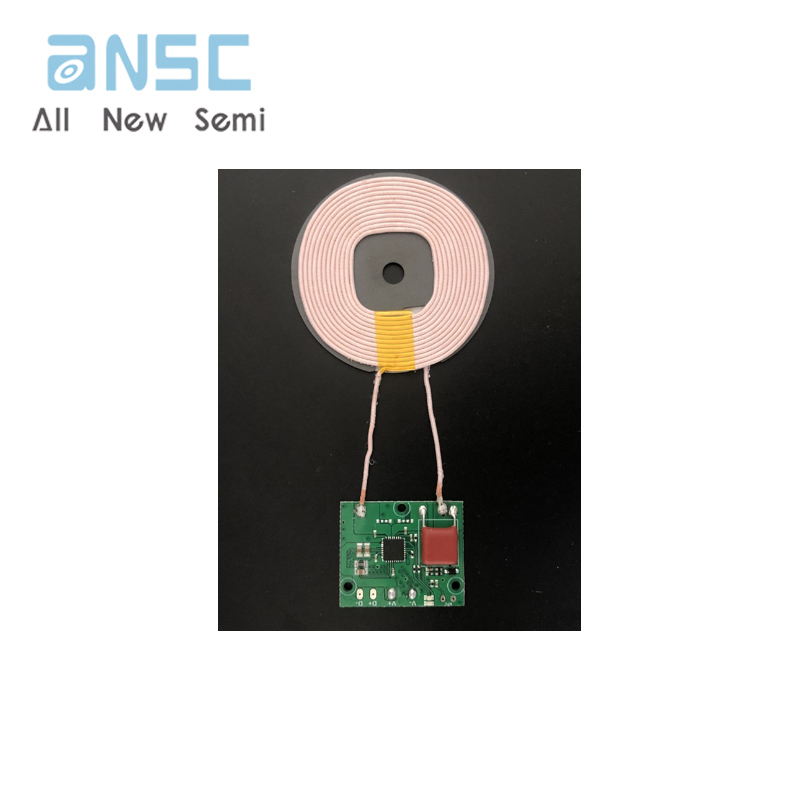

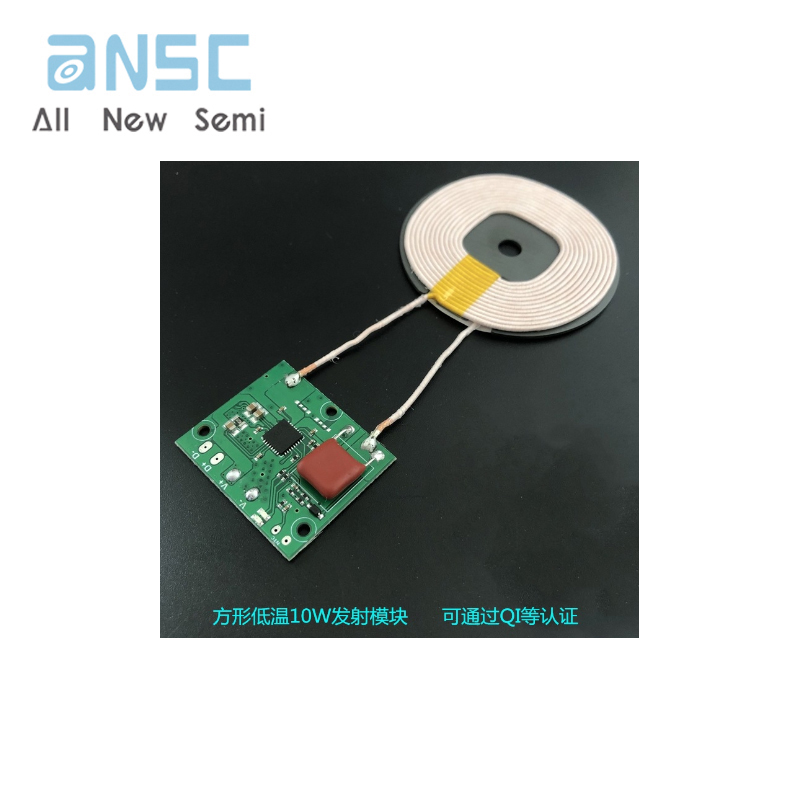

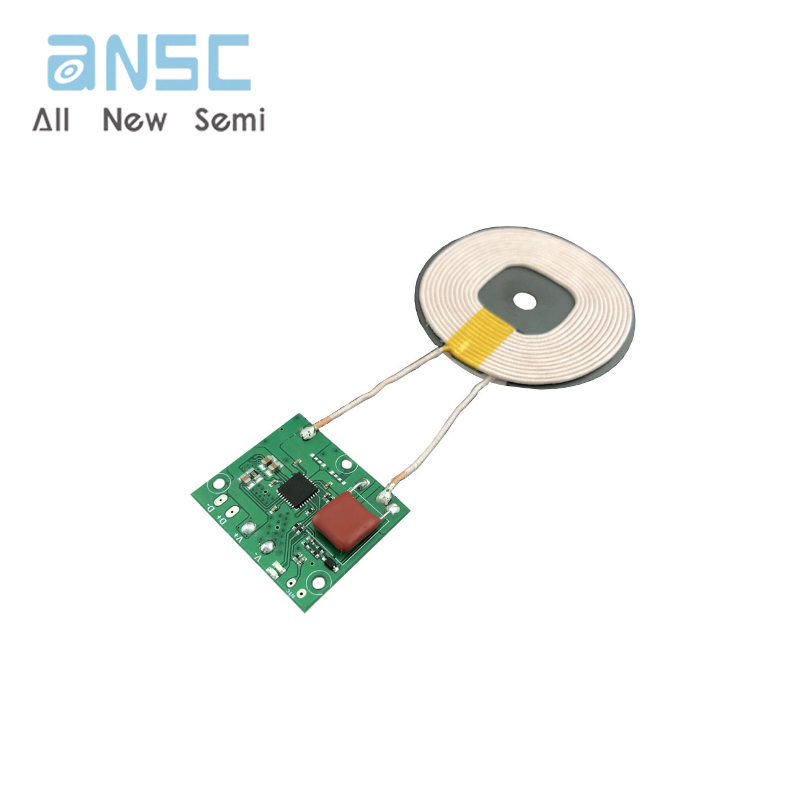

Mobile wireless charger 15W fast charging transmitter module suitable for DIY modification of furniture desk lamps
Product Feature:
Compliant with WPC V1.2.3 wireless charging specifications
Product standard: BPP certification standard
Support wireless charging for mainstream smartphones such as Huawei, Xiaomi, Samsung, Apple, etc
Using high-performance and highly integrated chips, stable charging, and strong compatibility
Input voltage/current: 9V-2A, 5V-2A
Output current: 1A-1.12A
Output power: 10W/7.5W/5W automatic recognition
Charging efficiency: around 75-80%
Sensing distance:<8mm
Working frequency: 100-200Khz
Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit
Support dual foreign object detection (FOD)
PCBA board size: length 30mm * width 25mm * thickness 4.2mm
Magnetic coil size: diameter 50mm, thickness 2.6mm
