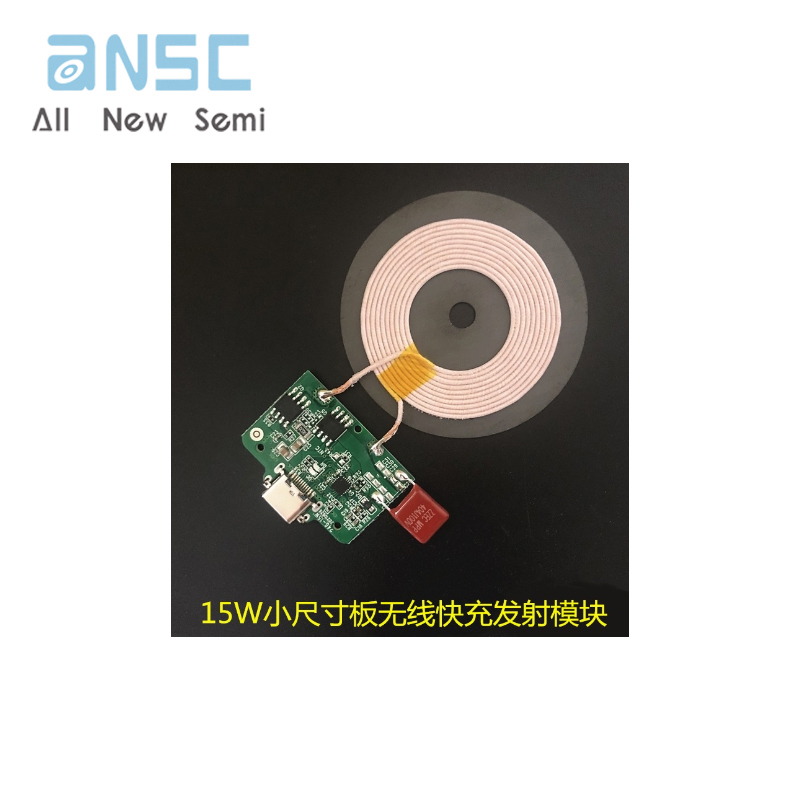

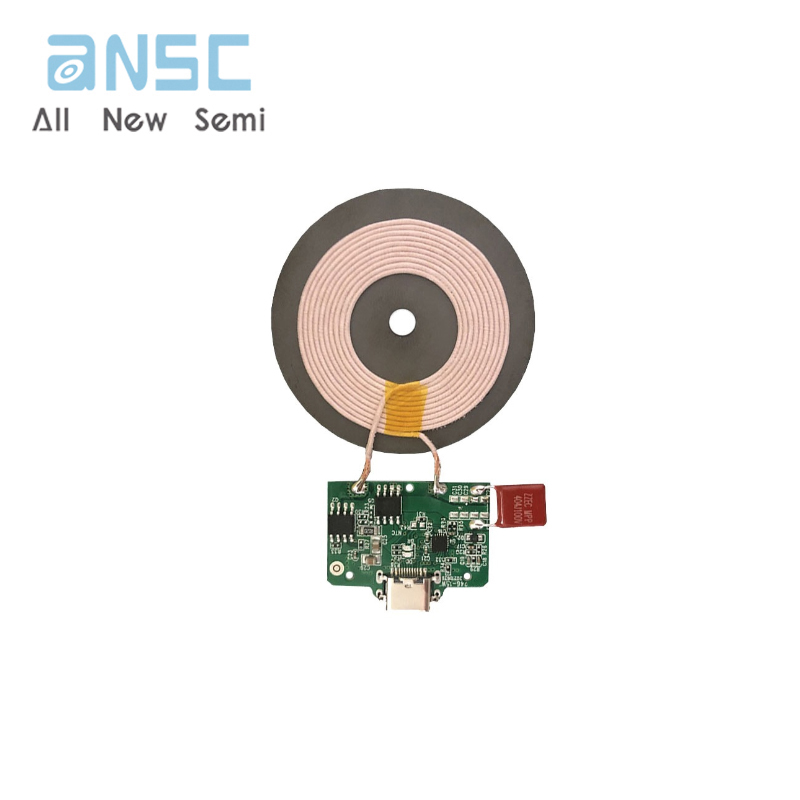

15W high-power mobile wireless charger transmitter base suitable for Apple, Xiaomi, Huawei desktop DIY modification
Product Feature:
Compliant with WPC V1.2.3 wireless charging specifications
Product standard: EPP certification standard
Support wireless charging for mainstream smartphones such as Huawei, Xiaomi, Samsung, Apple, etc
Using high-performance main control chip, stable charging, strong compatibility
Input voltage/current: 9V-2A, 5V-2A
Output current: 1A-1.67A
Output power: 15W/10W/7.5W/5W automatic recognition
Charging efficiency: around 75%
Sensing distance:<8mm
Working frequency: 100-200Khz
Equipped with quadruple protection functions such as overcurrent, overvoltage, overtemperature, and short circuit
Support dual foreign object detection (FOD)
Circuit board size: length 32mm * width 25mm * thickness 3.2mm
Magnetic separator coil size: diameter 50mm, thickness 2.2mm
