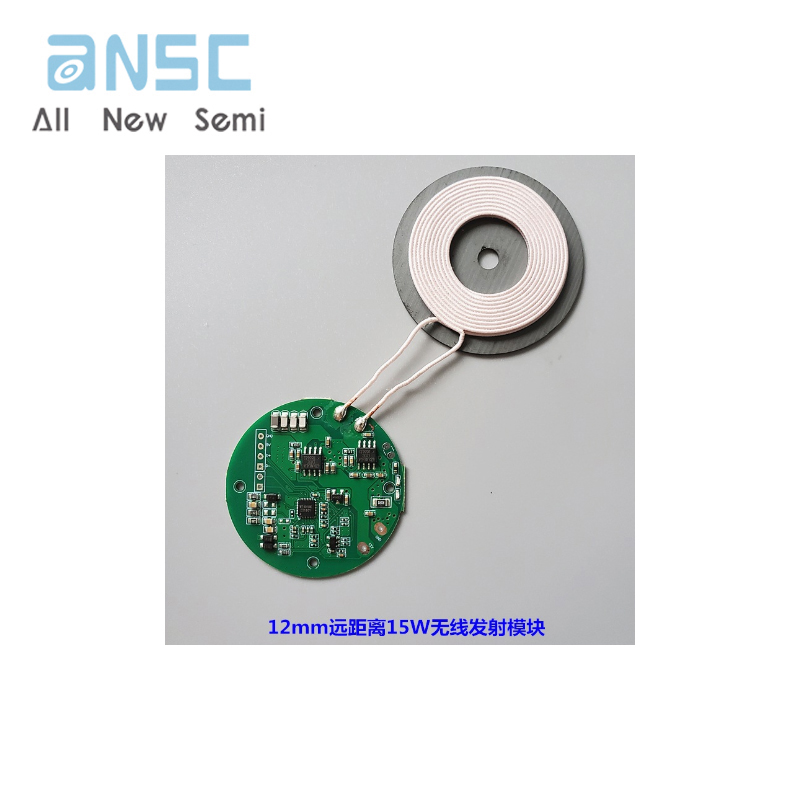

12mm long-distance transmitter module 15W mobile wireless charger bedside table rock glass DIY modification
Product Feature:
Compliant with WPC V1.2.3 wireless charging specifications
Product standard: QI standard
Support wireless charging for mainstream smartphones such as Huawei, Xiaomi, Samsung, Apple, etc
Using high-performance main control chips, high stability and strong compatibility
Suitable for adding bedside tables, desk lamps and other products
Input voltage/current: 12V/1.5A-2A
Output power: 15W/10W/7.5W/5W automatic recognition
Charging efficiency: around 78%
Sensing distance: 1-12mm, ideal distance 2-10mm
If there is a shell, the thickness of the shell needs to be subtracted
Working frequency: 100-200Khz
Support dynamic energy balance
Equipped with overcurrent, overvoltage, overheating and other protection functions
Support dual foreign object inspection (FOD)

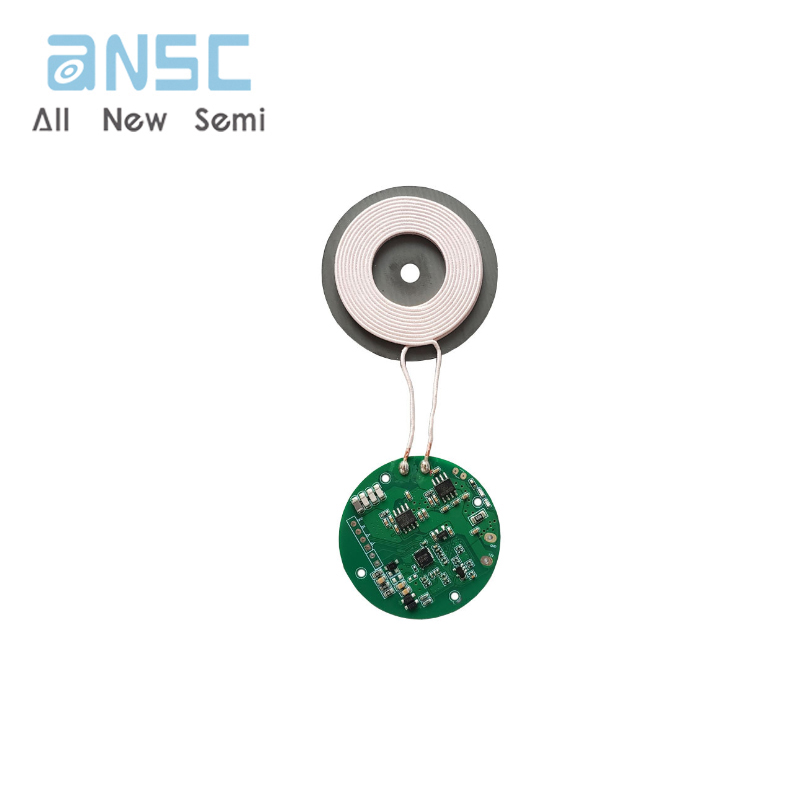

PCBA board size: diameter 45mm * thickness 2.6mm
Double layer coil magnetic separator size: diameter 50mm * thickness 3.4mm
