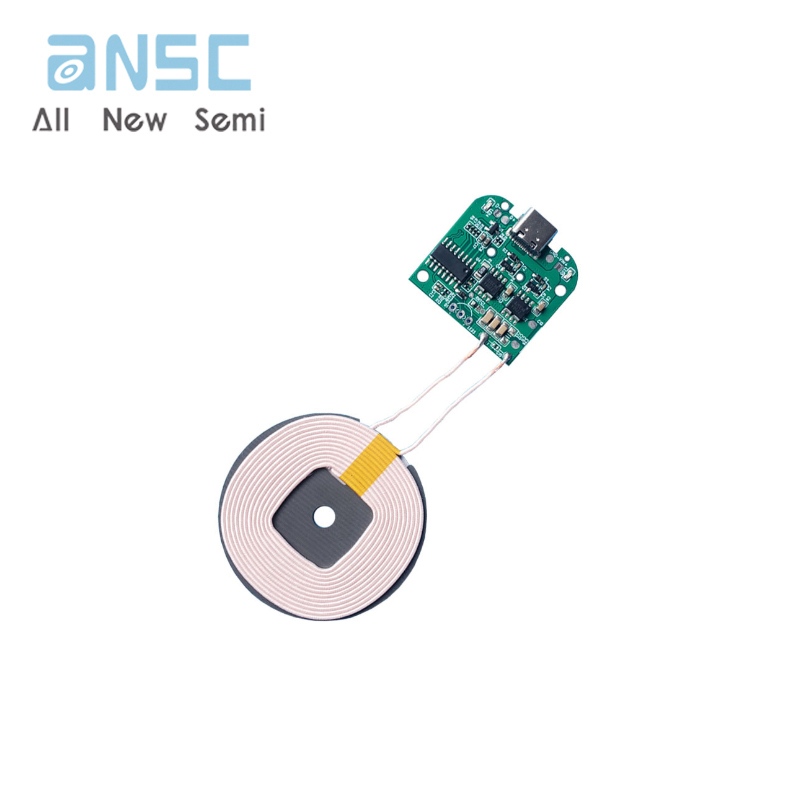

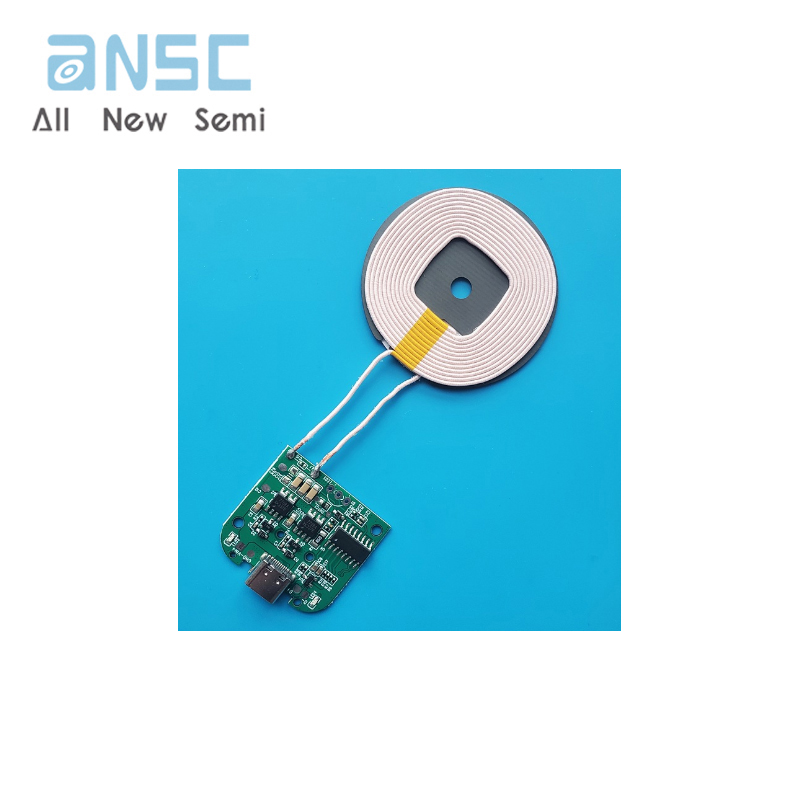

15W mobile wireless charging transmitter module 12V power supply suitable for furniture bedside table lamp modification
Product Feature:
Compliant with WPC V1.2.3 wireless charging specifications
Product standard: QI supports wireless charging protocols for mobile phones such as Huawei, Xiaomi, Samsung, Apple, etc
Built in high-performance main control chip
Input voltage/current: 12V1.5A/9V2A/5V2A
Output voltage/current: 9V-1.12-1.66A/5V1A
Output power: 15W/10W/7.5W/5W automatic recognition
Plug in the charging cable and use the QC3.0 fast charging head for charging
Use a 12V/1.5-2A adapter to supply power for welding positive and negative wires
Charging efficiency: around 70-75%
Sensing distance: ≤ 8mm
Working frequency: 100-200Khz
Support dynamic energy balance
Equipped with overcurrent, overvoltage, overheating and other protection functions
Support Foreign Object Detection (FOD)
PCBA board size: length 32mm * width 32mm * thickness 4.3mm
