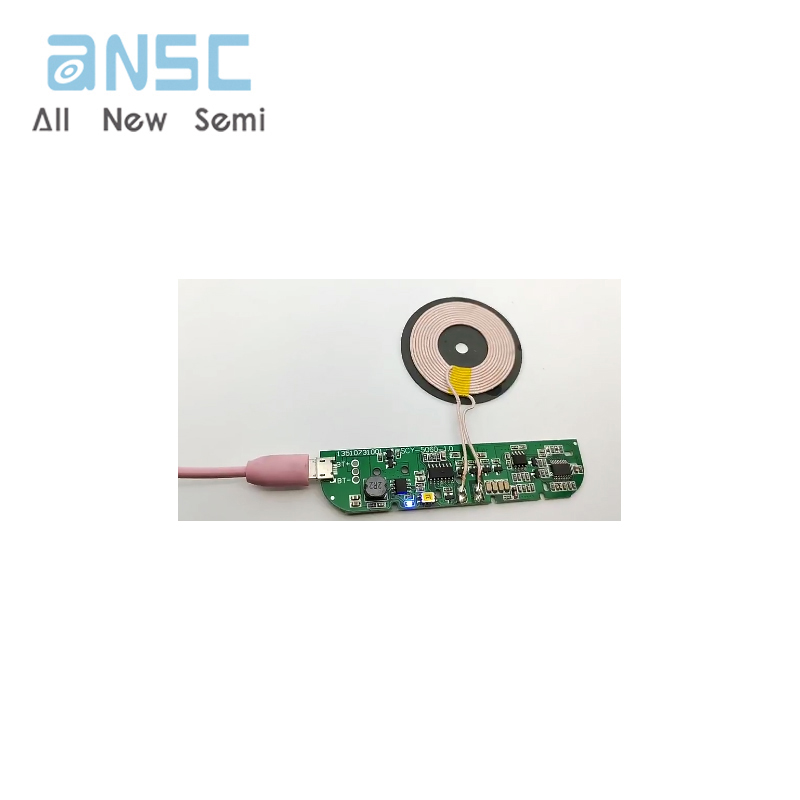

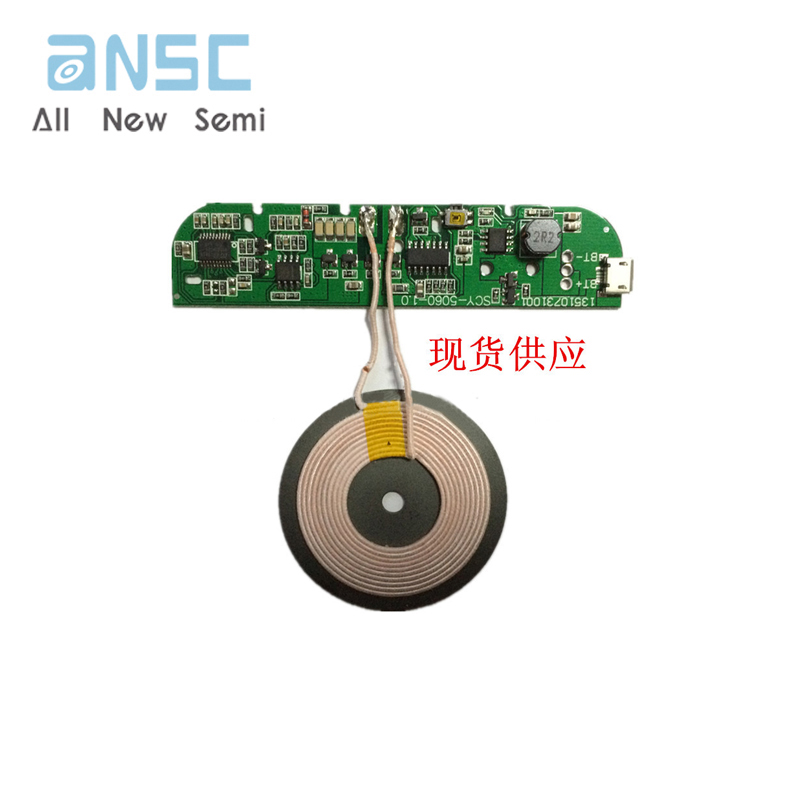

Wireless power bank PCBA with mobile power bank, wireless charger solution for mobile phones, manufacturer direct sales
Product Feature:
1. Input voltage: DC4.3V~5.5V/1.5~2A. If the voltage exceeds this range, an alarm will be triggered and charging will stop
2. Output voltage: 5V ± 0.1V,
3. Charging current: 500mAh-1000mAh
4. Charging power: up to 5W
5. Conversion efficiency: greater than 73% (69% for domestic products)
6. Transmission distance: maximum 10mm, recommended transmission and reception spacing of 2mm~6mm
7. Standby power consumption: average power consumption less than 30mW
8. Over temperature protection: When the temperature exceeds 53 degrees during charging, it will automatically stop charging for 1 minute, and then recharge after the temperature drops (imported IC C0G resonant capacitor)
9. Overcurrent protection: Automatically stops charging when the output current is greater than 1.8A during charging to prevent damage to the charger
10. Standard: Qi wireless charging standard
11. Product certification: CE/FCC, compatible with QI certification standards
13. Does it support foreign object detection? Yes
14. Indicator light function: The red and blue lights are on during charging, and the green light remains on during standby
15. Temperature protection (over temperature, over voltage, over current) High efficiency (fast charging speed, low temperature during charging process)
About Application
About customization
Delivery display
