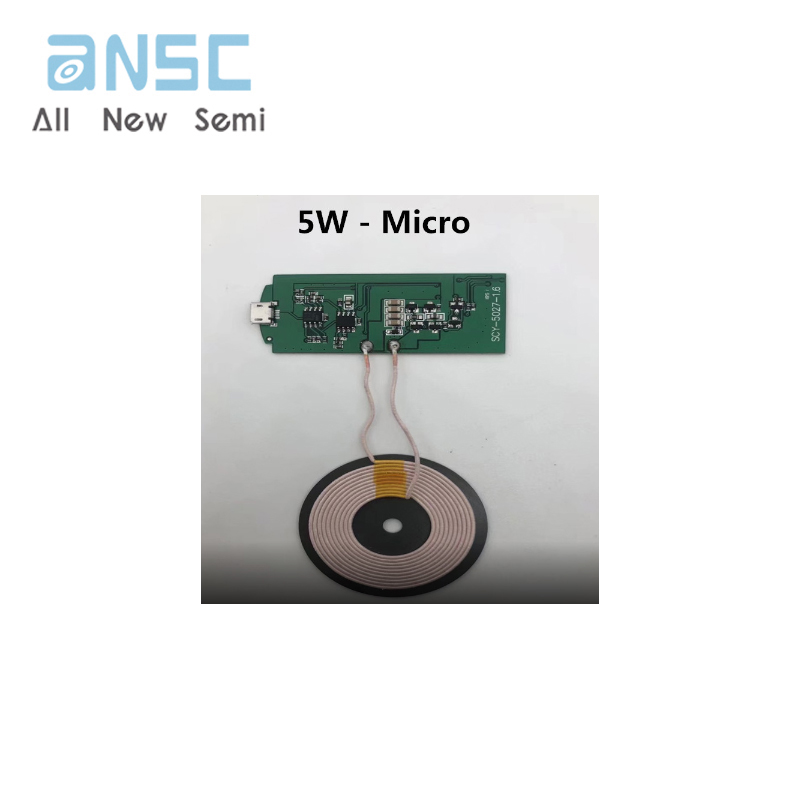

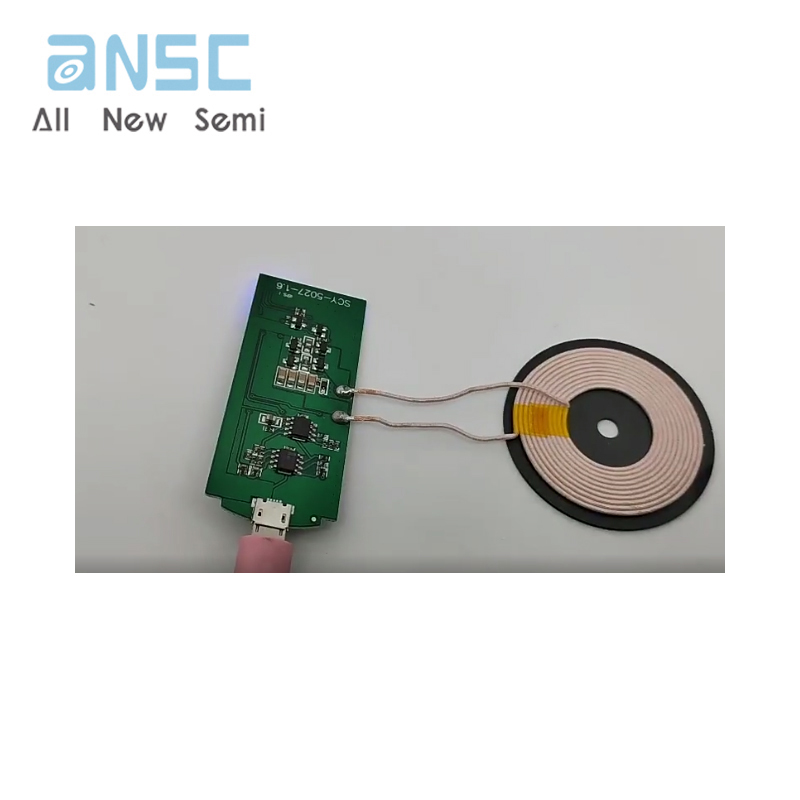

Small size car holder wireless charger transmitter module PCBA solution QI universal wireless charger manufacturer direct sales
Product Feature:
1. Input voltage: DC4.3V~5.5V/1.5~2A. If the voltage exceeds this range, an alarm will be triggered and charging will stop
2. Output voltage: 5V ± 0.1V,
3. Charging current: 500mAh-1000mAh
4. Charging power: up to 5W
5. Conversion efficiency: greater than 73%
6. Transmission distance: maximum 10mm, recommended transmission and reception distance is 2mm~6mm
7. Standby power consumption: The average power consumption is less than 50mW
8. Over temperature protection: When the temperature exceeds 60 ° C during the charging process, it will automatically stop charging for 1 minute and wait for the temperature to drop before charging again
9. Overcurrent protection: When the output current during charging is greater than 1.5A, the charging will automatically stop to prevent damage to the charger
10. Implementation standard: Qi wireless charging standard
11. Product certification: CE/FCC, compliant with QI certification standards
12. Product weight: 120 grams
13. Does it support foreign object detection? yes
14. Indicator light function: Charging blue light, standby red light, fault dual flashing
Main description: Wireless charging products that comply with the WPC Qi standard can be used, including wireless transmitters, wireless charging pads, and wireless charging receivers. They are suitable for Nokia, Samsung, Google Nexus 4/Nexus 5, Nexus 10 tablets, Xiaomi, Meizu, Huawei, ZTE, Lenovo, etc. You can add our company's universal wireless charging receiver and use wireless charging.
Qi is the global standard for wireless charging of devices. For Qi compatible devices, you don't need to connect any cables. Just place the device on the charging surface.
Charging time: Nokia Lumia 920 takes 2-4 hours, Samsung phones take 3-6 hours, iPhone phones take 3-4 hours, other Android phones may vary depending on battery level
